Transit KA

home / product a to z / T

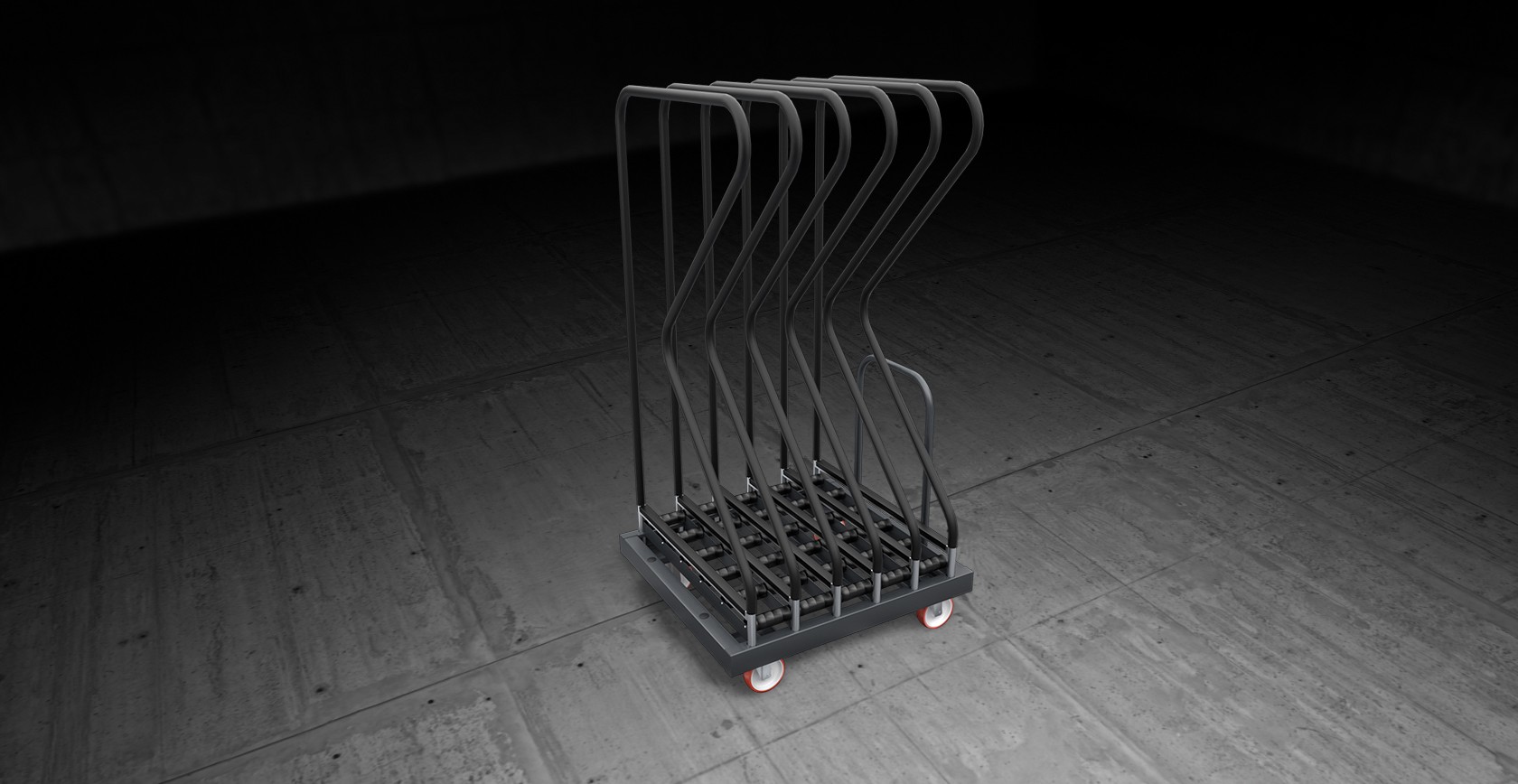

Trolley for transportation and storage of sashes. The base of each compartment is equipped with rolls for easier handling of heavy or large size pieces.

Estimate Request

Technical data

DEPTH (BASED ON MODEL)

TRANSIT KA 6-100 mm (mm)

995

TRANSIT KA 10-100 mm (mm)

1.540

TRANSIT KA 15-100 mm (mm)

2.220

TRANSIT KA 5-130 mm (mm)

1.010

TRANSIT KA 10-130 mm (mm)

1.840

TRANSIT KA 15-130 mm (mm)

2.670

TRANSIT KA 5-160 mm (mm)

1.160

TRANSIT KA 10-160 mm (mm)

2.140

CHARACTERISTICS

Number of compartments (based on model)

5 - 6 - 10 - 15

Compartment width (mm) (based on model)

100 - 130 - 160

Compartment depth (mm)

980

Soft PVC contact surface

Preparation for K-Rail track

Base with roller conveyor

Handle for moving

4 swivel casters, 2 of which have locking stops (mm)

Ø = 150

WEIGHT (DEPENDING ON MODEL)

TRANSIT KA 5-160 mm (kg)

TRANSIT KA 10-160 mm (kg)

180

TRANSIT KA 15-130 mm (kg)

220

TRANSIT KA 10-130 mm (kg)

155

TRANSIT KA 5-130 mm (kg)

TRANSIT KA 15-100 mm (kg)

215

TRANSIT KA 10-100 mm (kg)

150

TRANSIT KA 6-100 mm (kg)

100

MAXIMUM LOAD CAPACITY (ACCORDING TO MODEL)

TRANSIT KA 15-100 mm (kg)

685

TRANSIT KA 6-100 mm (kg)

600

TRANSIT KA 10-100 mm (kg)

750

TRANSIT KA 5-130 mm (kg)

500

TRANSIT KA 10-130 mm (kg)

745

TRANSIT KA 15-130 mm (kg)

680

TRANSIT KA 5-160 mm (kg)

500

TRANSIT KA 10-160 mm (kg)

720

Included

Available

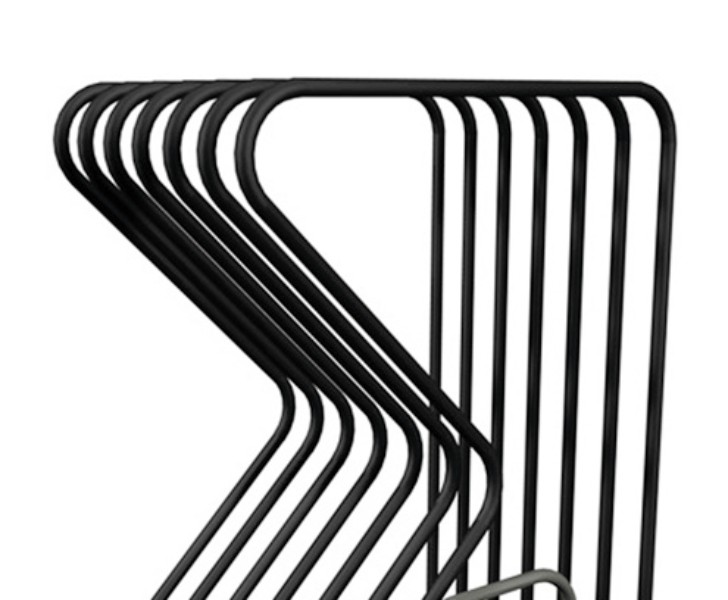

Contact surfaces

All side and lower contact surfaces are coated with soft nonslip PVC, which ensures the integrity of the surfaces in the housing stages.

Door sliding roller conveyor

A fixed roller conveyor allows horizontal translation of the frame by stem-mounted rollers that ensure smoothness and ease of movement.

Pivoting wheels

Equipped with 2 fixed wheels and 2 pivoting wheels with brake, which ensure a high degree of mobility and object handling ease. Locking the braking units allows their position to be fixed near different work areas.
