Fully automatic CNC cutting centre with 3 controlled axes, designed for cutting profiles of aluminium, PVC, or light alloys in general. Starting off from the extruded barstock, V-CUT carries out the loading, cutting and unloading of predefined and optimized cutting lists automatically. It is able to perform cuts from 45° to 135° or from 22°30’ to 157°30’.

Technical data arrow_drop_down
AXIS STROKES
U AXIS (bar positioning) (mm)
7.000
X AXIS (ejector) (mm)
1.200
B AXIS (angle of blade) (according to version)
45° ÷ 135° ; 22°30’ ÷ 157°30’
V AXIS (gripper transversal positioning) (mm)
138
W AXIS (gripper vertical positioning) (mm)
138
POSITIONING SPEED
U AXIS (m/mm)
0 ÷ 80
X AXIS (m/mm)
0 ÷ 70
AXIS ACCELERATION
U AXIS (m/s²)
3,3
X AXIS (m/s²)
4
WORK AREA
Max. loadable length (mm)
7.000
Theoretical minimum cutting length (mm)
0
Max. profile length that can be unloaded automatically (mm)
2.500
CUTTING UNIT
Hydro-pneumatic blade feed

Blade diameter at carbide-tipped (mm)
Ø = 550
Pre-set for swarf exhauster

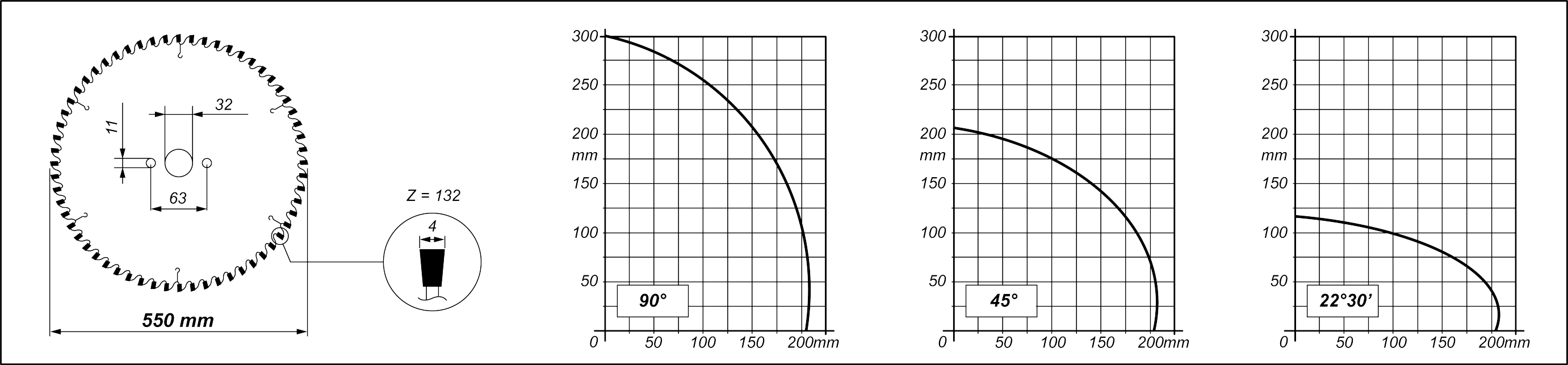

CUTTING DIAGRAM
FUNCTIONS
Workpiece cutting and separation directly from the bar

Conveyor belt for swarf and short cuts

Belt for conveying swarf and short cuts to collector bag

PROFILE POSITIONING
Automatic positioning/unloading

Loading feeder with 2 controlled axes for workpieces of up to 7,000 mm with collet

SAFETY DEVICES AND PROTECTIONS
Metal enclosure guard on three sides

LUBRICATION SYSTEM
Minimal oil diffusion lubrication system

WORKPIECE LOCKING
Vertical pneumatic vices
3
Additional vice for reduced-size profiles

Minimum size of profile machinable without additional vice (mm)
30 X 30
Vice pressure reduction with pressure gauge

MOTOR
Power rating (kW), “three-phase” blade drive motor
3
INDUSTRIAL HUMAN-MACHINE INTERFACE PC (STANDARD)
CNC-PC with I3 (dual core) processor

Graphic card

15” LCD-TFT graphic colour touch screen

Keyboard and mouse

Included
Available
Loading magazine
Automatic bar loading and positioning magazine with pilgrim step, capable of housing profiles with a maximum length of 7 metres and a minimum length of 3.0 metres. Loading capacity of 7 bars with 240 mm pitch. Maximum loadable weight 500 Kg.
CNC cutting centres V-cut Loading magazine Emmegi
CNC cutting centres V-cut Cutting module Emmegi
Cutting module
Front single-head machine with hydro-pneumatic outfeed movement provided with a 550 mm blade featuring wide cutting range: from 22°30' to 157°30'. Setting of the cutting angles is managed in a completely automatic way by the CNC.
Bar positioning
The extremely fast and accurate bar positioning system is complete with gripper for profile locking. Position adjustment can be manual or automatic by means of the CNC (optional).
CNC cutting centres V-cut Bar positioning Emmegi
CNC cutting centres V-cut Unloading magazine Emmegi
Unloading magazine
Large-capacity unloading and storage magazine for finished workpieces, available in two versions: for workpieces up to 4.0 meters in length or, alternatively, for workpieces up to 7.5 meters in length.
Soundproofed cabin (Optional)

The cutting unit can be completely protected with an integral soundproofed cabin. This protection allows a significant noise reduction and the application of a fume suction system, which considerably improves the quality of the working environment.

CNC cutting centres V-cut Soundproofed cabin Emmegi
CNC cutting centres V-cut Label printer Emmegi
Label printer (Optional)

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.
