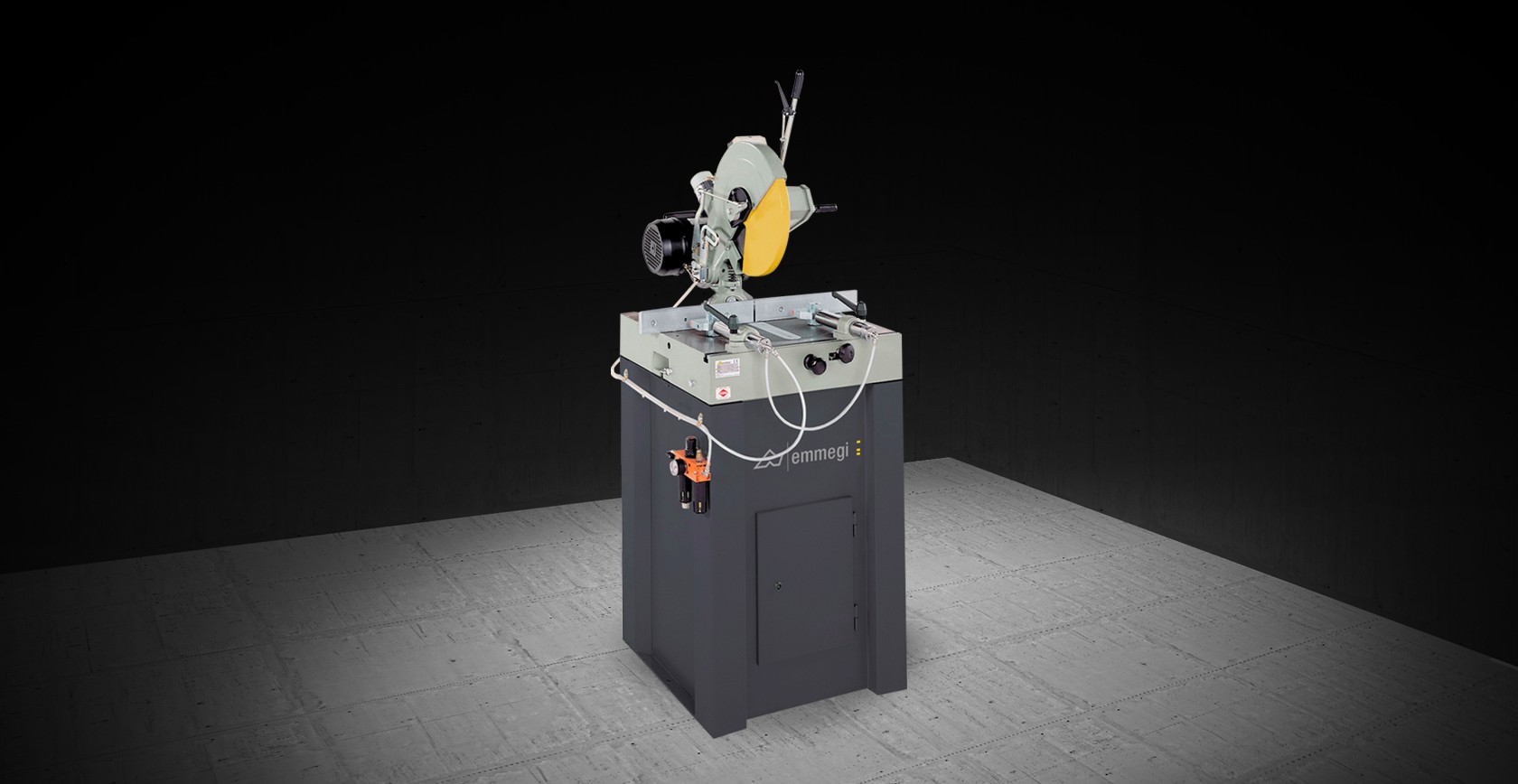

MSP 400

Single-head, descending blade cutting-off machine with left loading side, rotation of the cutting head to 45° (left and right) and manual tilting by 45° referred to the horizontal axis.

Technical data arrow_drop_down
WORKPIECE LOCKING
Pair of pneumatic horizontal vices

MOTOR
Three-phase brakemotor

Brake intervention time (s)
10
Power (kW)
2.2
LUBRICATION SYSTEM
Micro-mist lubrication system with water and oil emulsion

BLADE
Made of Widia (mm)
Ø = 400
BLADE FEED
Manual

CUTTING AREA PROTECTION
Local, mechanically controlled

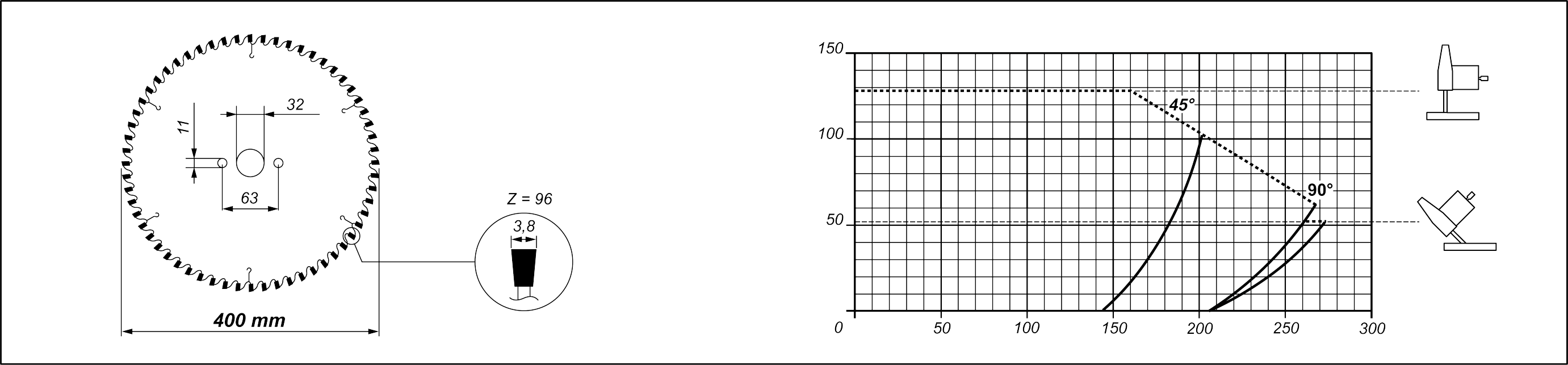

CUTTING DIAGRAM
Included
Avayable

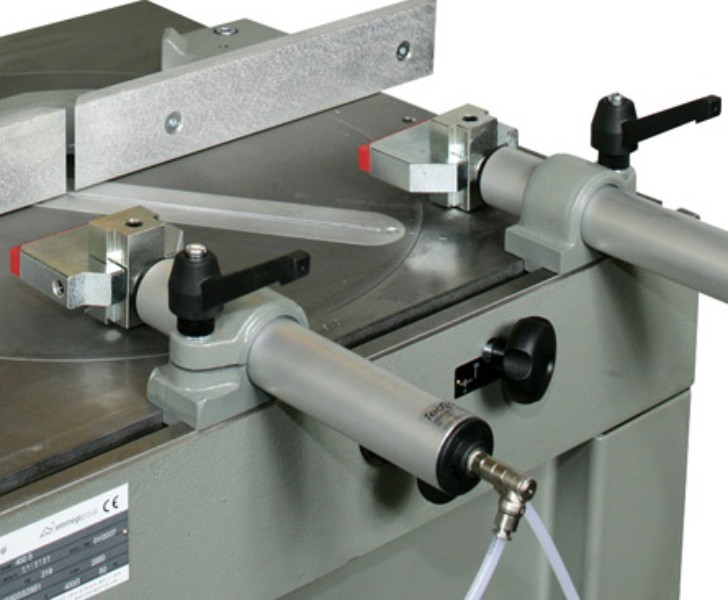

Vices
The machine is equipped with horizontal vices assembly which, in the S version, are pneumatically actuated, while in the M version are manually actuated.
MSP 400 Vices Emmegi
MSP 400 Control Emmegi

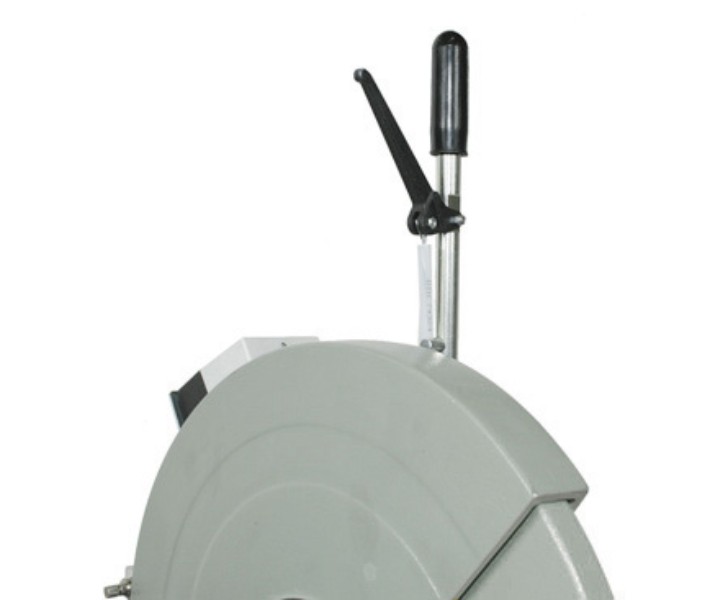

Control
The manual actuator that characterises blade descent is equipped with a mechanical safety system aimed at preventing any accidental movement. At the same time, it determines the gradual exit of the blade itself. Angular positioning of the head is done by rotating the horizontal plane with mechanical snap lock for 45° (right and left) and manual locking for intermediate angles.

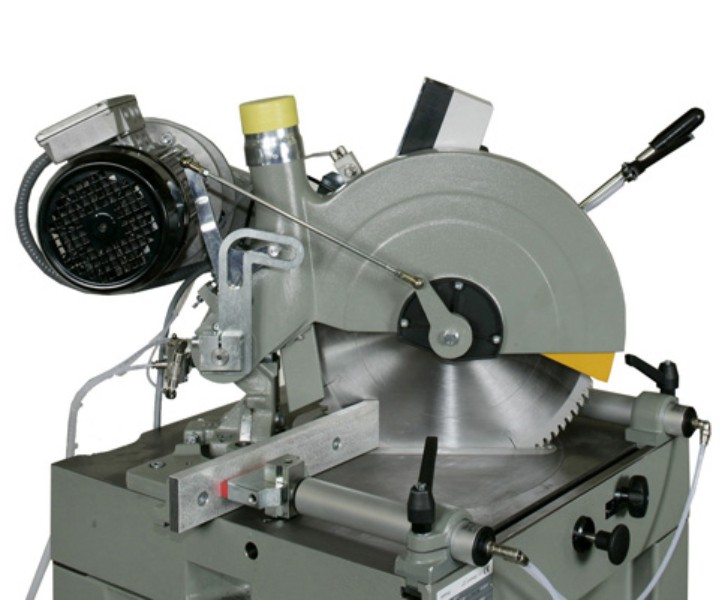

Cutting zone
The sturdy cast-iron horizontal support surface, with its vertical square rigidly coupled to it, forms the workpiece clamping area; it features a large bearing surface for optimum clamping of workpieces.
MSP 400 Cutting zone Emmegi
