Rifila

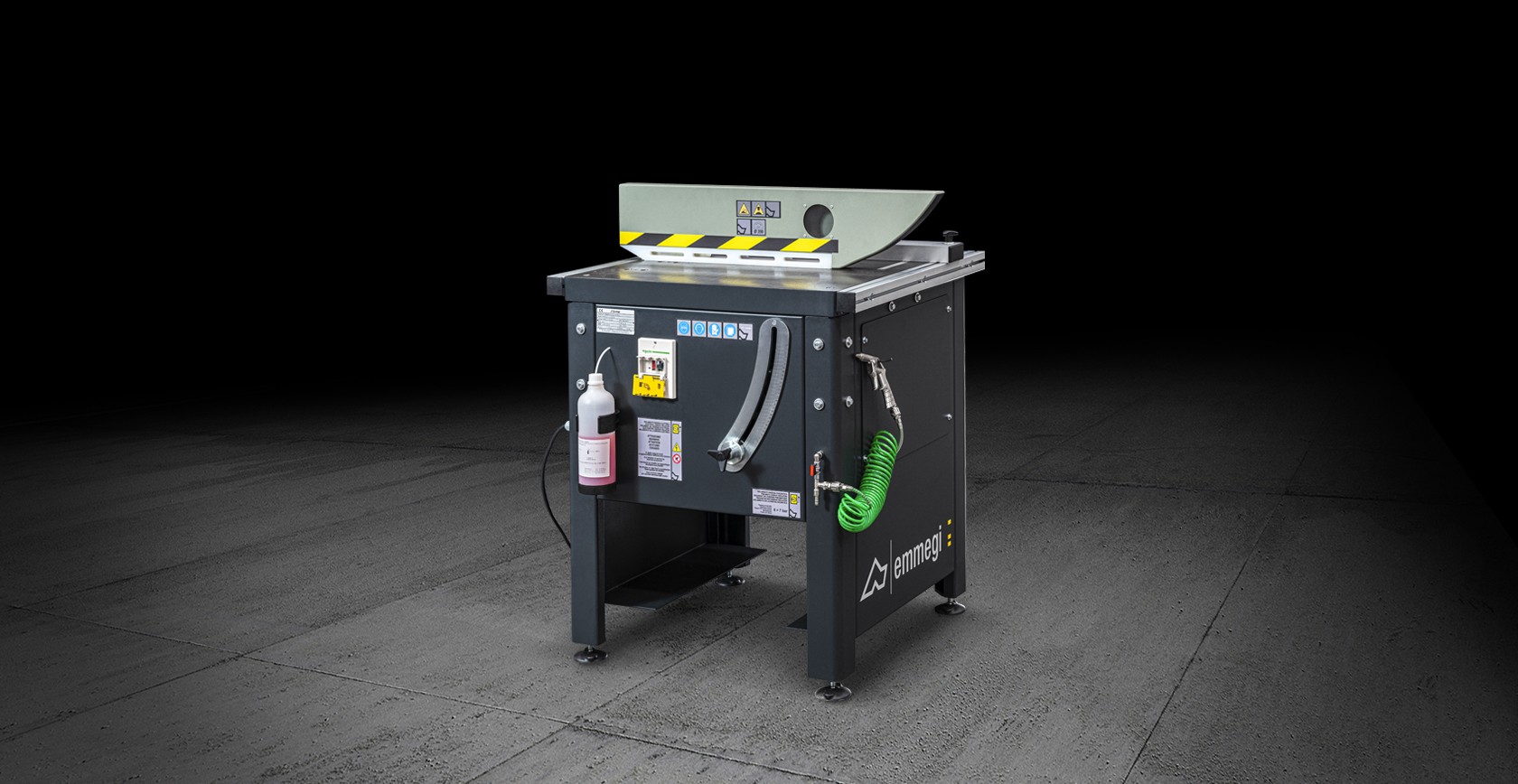

Single-head trimming machine with rising blade, for extruded profiles and flat sheets of aluminium. The especially rugged structure allows well defined and accurate cutting and ensures perfect parallelism between the profiles faces. Furthermore it can be equipped with profile support roller conveyors to increase its versatility. The blade guard is designed and built to work under the best safety conditions.

Technical data arrow_drop_down
MOTOR
Three-phase brakemotor

Brake intervention time (s)
10
Power (kW)
1.5
LUBRICATION SYSTEM
Micro-mist lubrication system with water and oil emulsion

BLADE
Made of Widia (mm)
Ø = 350
BLADE FEED
Maximum trimming height (mm)
120
CUTTING AREA PROTECTION
Local, manually adjusted

Included
Avayable

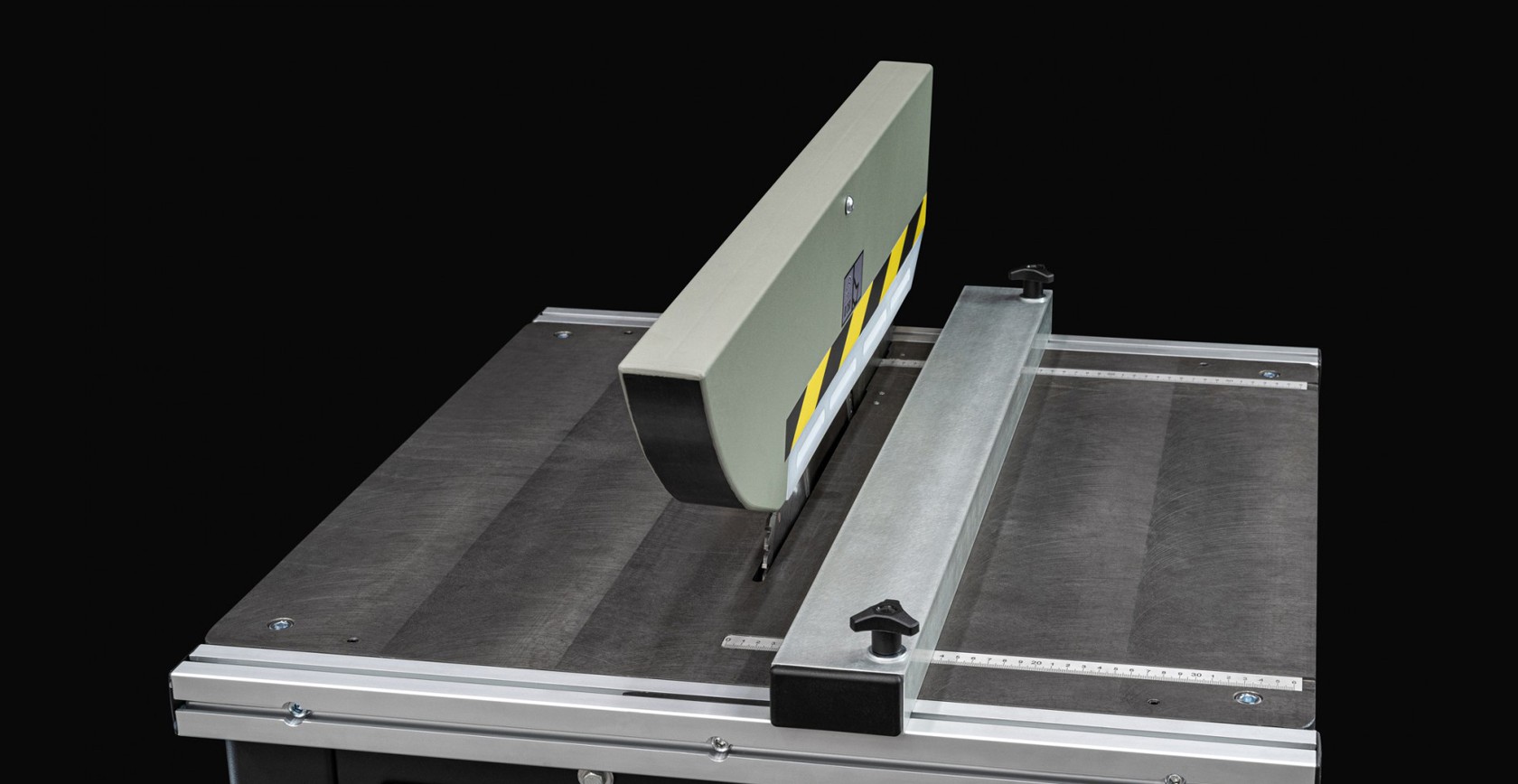

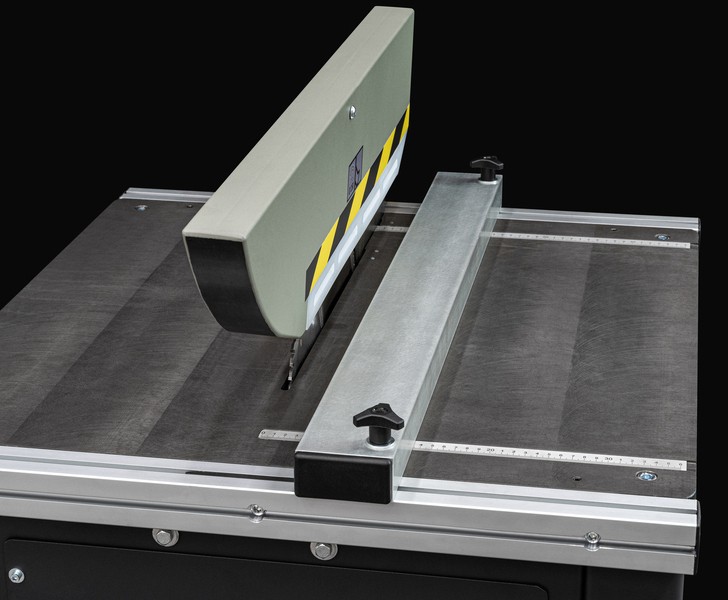

Adjustable stop
Referring to the centreline of the blade, it allows the area to be removed to be quickly defined.
Rifila Adjustable stop Emmegi
Rifila Graduated scale Emmegi

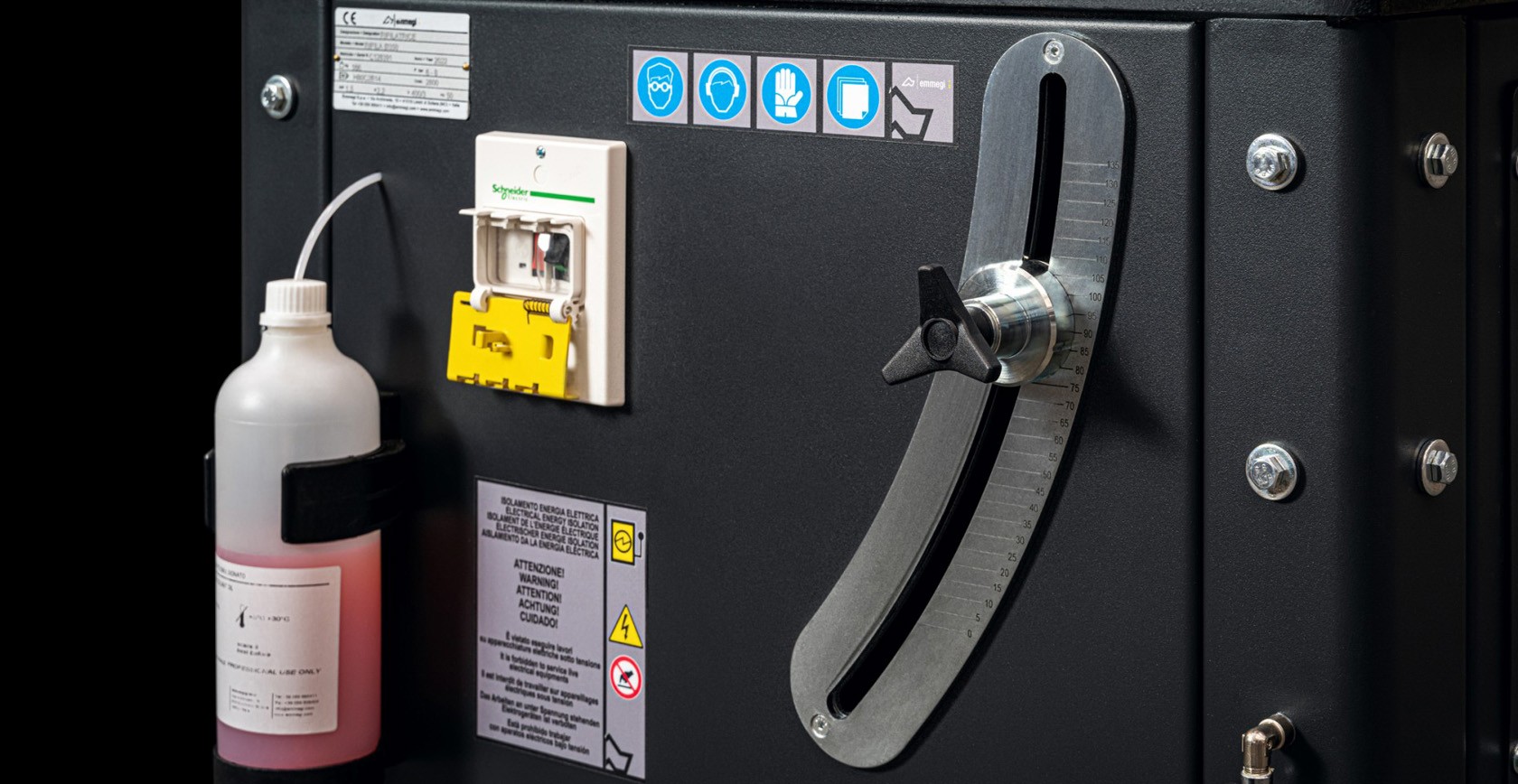

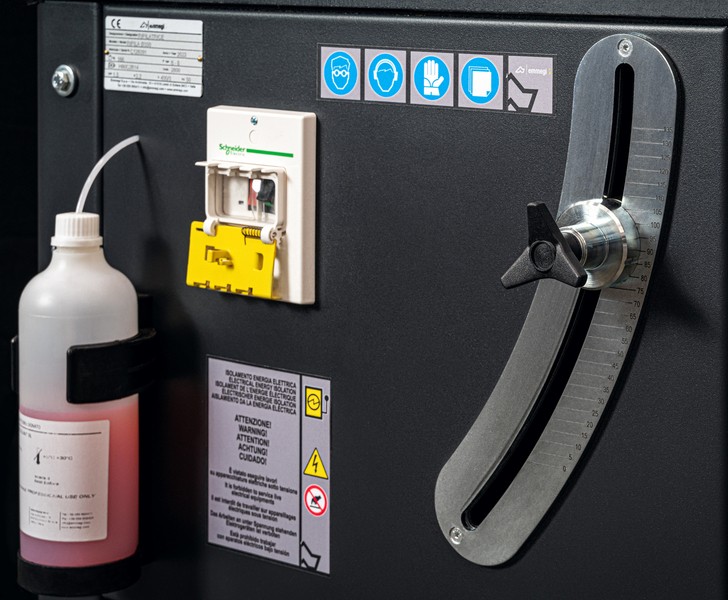

Graduated scale
It allows the height of the blade relative to the horizontal support surface to be mechanically fixed in relation to the thickness of the material to be sectioned.

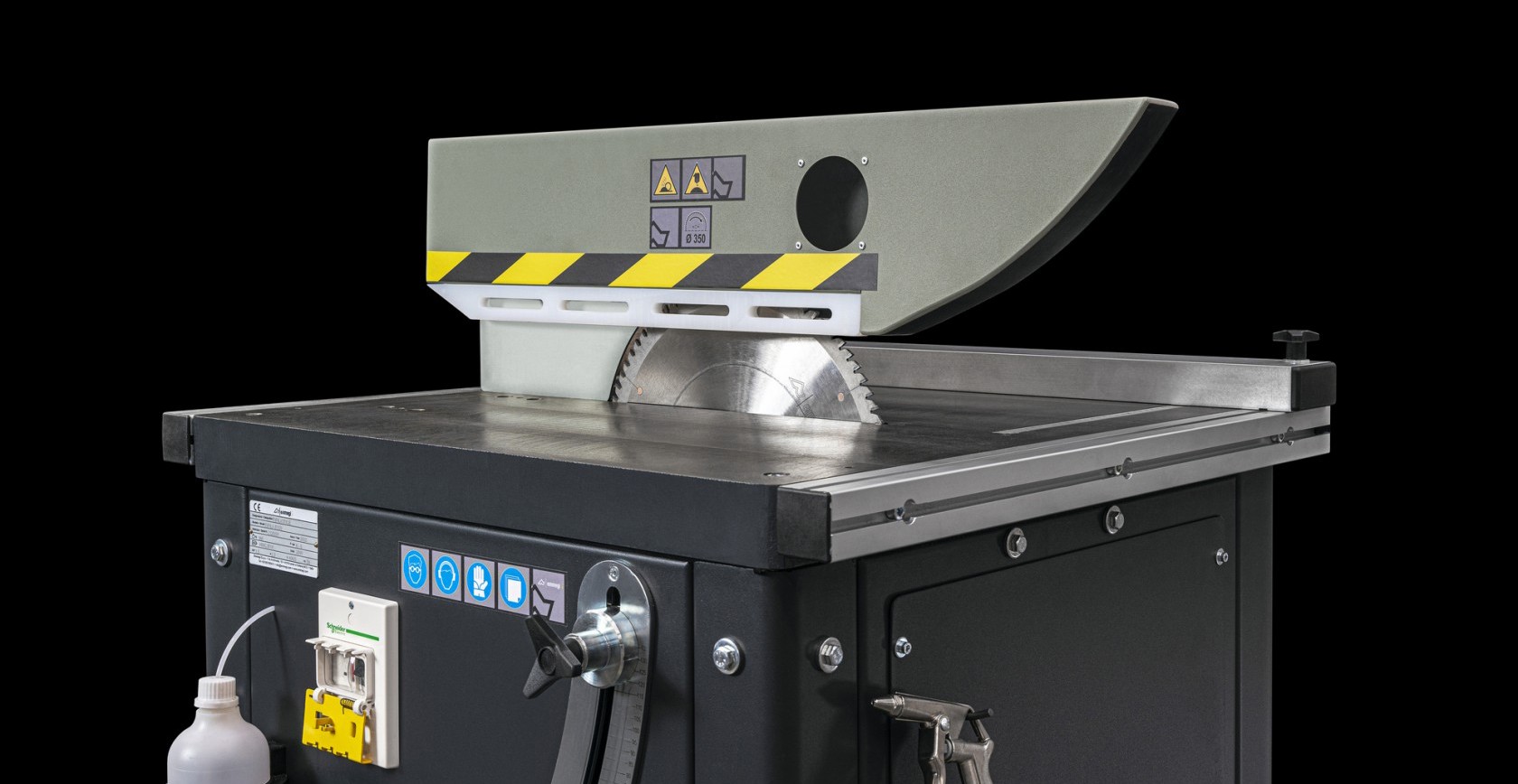

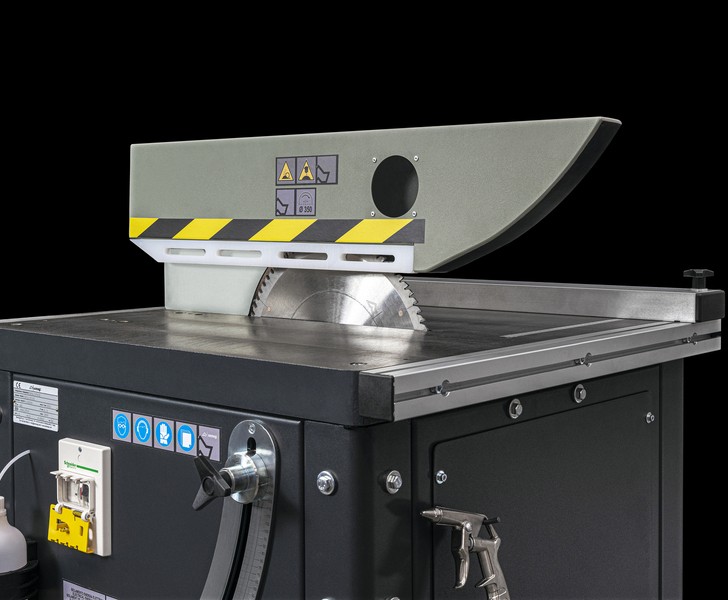

Cutting zone
The sturdy and wide horizontal cast-iron support surface makes up the work area, which features a large footprint that enables the processing of both profiles and flat aluminium sheets.
Rifila Cutting zone Emmegi
