Roto

Vertical wrapping machine for door/window frames. The rotary mounting base is complete with roller conveyor for easier handling of heavy or large size pieces. The machine requires only one operator.

Technical data arrow_drop_down
CHARACTERISTICS
Air consumption (Nl/cycle)
18
Installed power (kW)
1.9
Control footswitch

Control panel with display for viewing and setting machining parameters

Semi-automatic rotary table

Carriage for double reel of bubble wrap/microfilm

Rotating bench (mm)
Ø = 1.800
Table rotation speed (rpm)
4 ÷ 12
Carriage up/down speed (m/min)
1,3 ÷ 3,5
PACKABLE WINDOW
Height (mm)
600 ÷ 2800
Width (mm)
320 ÷ 1800
Thickness (mm)
40 ÷ 380
Window maximum weight (kg)
80
REEL (FILM) DIMENSIONS
Outer diameter, maximum size (mm)
300
Inner diameter (mm)
76
Reel height (mm)
500
Film thickness (µ)
17 ÷ 35
Maximum weight (kg)
20
REEL (PLURIBALL) DIMENSIONS
Outer diameter, maximum size (mm)
1000
Inner diameter (mm)
76
Reel height (mm)
500
Maximum weight (kg)
12
Included
Avayable

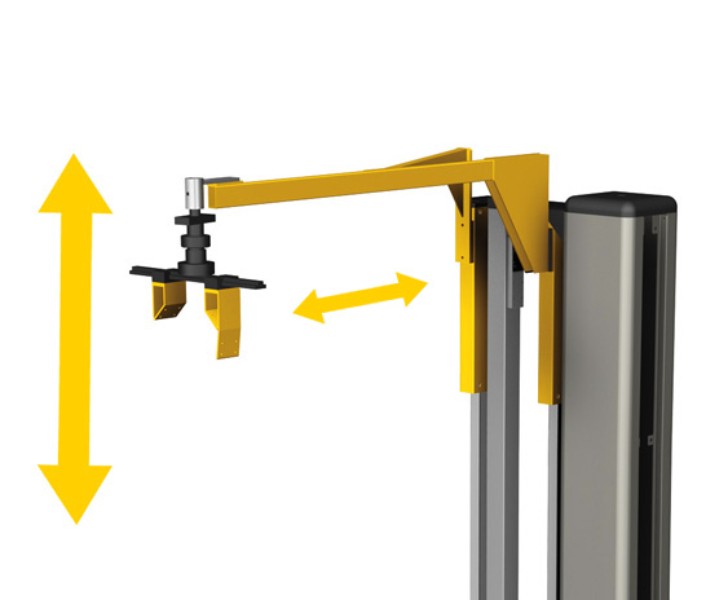

Doors clamping
Stem movement allows pneumatic descent to ensure proper locking of the frame.
Roto Doors clamping Emmegi
Roto Double reel housing Emmegi

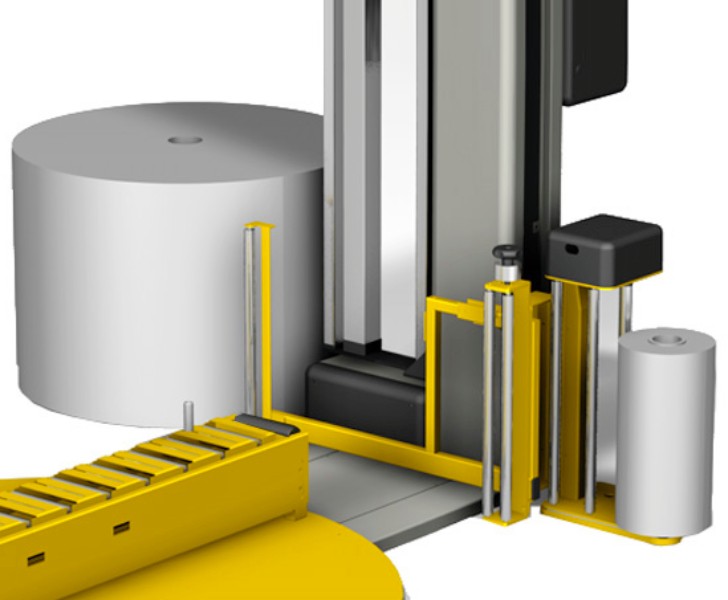

Double reel housing
A dual carriage system allows microfilm and bubble wrap reels to be housed separately to speed up automatic packing operations.

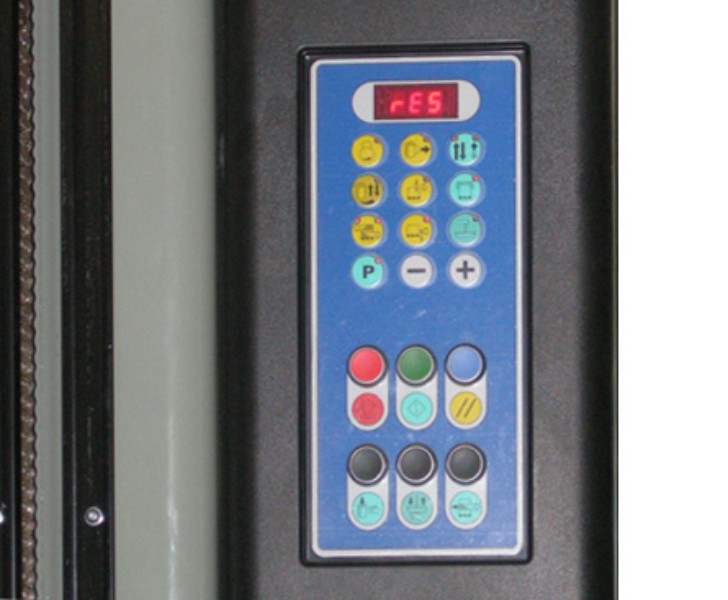

Control and footswitch assembly
The central console constructed of thermoformed ABS allows the user to manage functions such as: plate rotation speed, packing reel rise speed selection, frame locking, unwinding direction selection, manual reel change button.
Roto Control and footswitch assembly Emmegi
Roto Door sliding roller conveyor Emmegi
Door sliding roller conveyor
A fixed roller conveyor allows horizontal translation of the frame by stem-mounted rollers that ensure smoothness and ease of movement.
