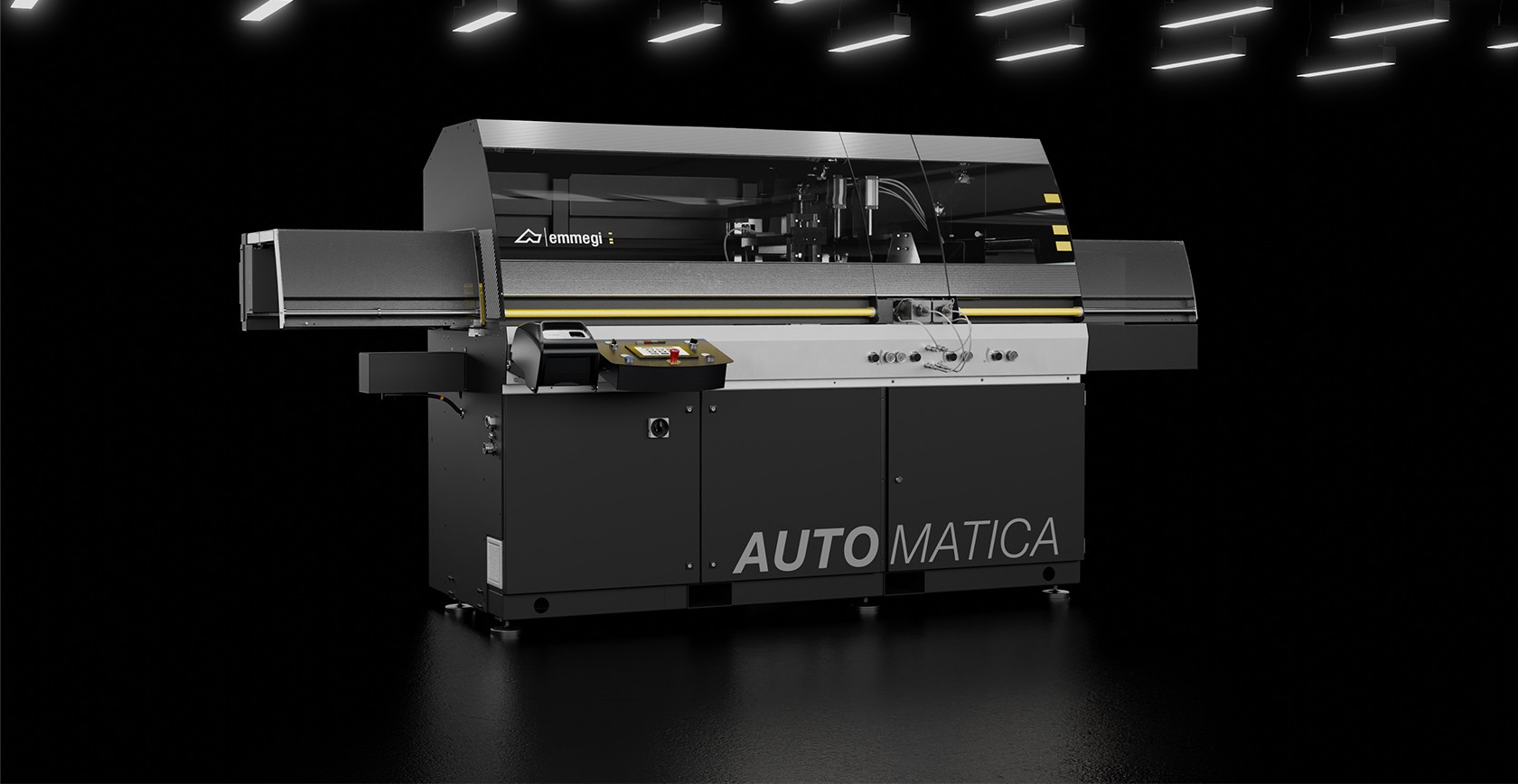

Single head, rising blade cutting-off machine with automatic cycle, for 90° cutting, equipped with N/C bar feeder. It can be set up with four different diameter blades, the blade feed is N/C electrical driven. For cutting needs that require a perfect finish, a pneumatic system for the automatic separation of the cut piece, in order to avoid the traces commonly left when the blade comes back in this cutting mode, is optionally available. It can be also provided with inverter, to control the blade rotation speed for the best adjustment to the cutting profile. It can also be equipped with an automatic bar loading magazine and with custom drilling units for particular needs.

Technical data arrow_drop_down
MACHINE CHARACTERISTICS
Electronic control of the X axis

X axis positioning speed (m/min)
20
Y axis electronic control (blade feed)

X axis stroke (mm)
1000
Blade diameter (mm)
650 ; 550 ; 450 ; 350
Absolute encoder positioning

Positioning tolerance (mm)
± 0,1
Bar minimum length (remaining bar) (mm)
110
Widia blade

Separating system for cut workpiece

Automatic bar loading magazine

Drilling unit

BLADE MOTOR
Three-phase brakemotor

Power rating (kW), three-phase drive motor
5.5
Brake intervention time (s)
10
Motor with inverter (optional) (kW)
9.6
SAFETY DEVICES AND PROTECTIONS
Manually controlled complete sliding guard

LUBRICATION AND SUCTION
Minimal oil diffusion lubrication system

Preparation for automatic start-up of external exhauster

PROFILE POSITIONING AND CLAMPING
Bridge structure in cutting area with two pairs of vertical and horizontal vices with pressure reducer equipped with a pressure gauge

Bridge structure in feeder area with two pairs of vertical and horizontal vices with pressure reducer equipped with a pressure gauge

Feeder and cutting area adjustable bridge vices

CUTTING DIAGRAM
Included
Avayable
Label printer

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

Single head cutting-off machines Automatica ER Label printer Emmegi
Single head cutting-off machines Automatica ER Feeder with bridge vices Emmegi
Feeder with bridge vices
Bar feed system obtained through the use of a controlled axis ensuring, through the use of a recirculating ball screw, high positioning accuracy. It can be set from the “PC” on-board the machine. Equipped with a bridge vice system, which allows the extreme versatility of clamping toward a wide variety of profile geometries, while maintaining rapidity in setting up the workpiece clamping cylinders.
Cutting zone with bridge vices
To enable maximum utilization of the large cutting capacity, which ensures the machinability of large profiles, the cutting zone features a sturdy structure designed to ensure maximum precision. This is with regard to both the horizontal plane and the vertical square. The bridge vice system also present in the cutting zone, with its 4 positionable hold-down devices, contributes to stable and precise clamping of the workpiece.
Single head cutting-off machines Automatica ER Cutting zone with bridge vices Emmegi
Single head cutting-off machines Automatica ER Control Emmegi
Control
The ergonomic state-of-the-art control panel features a 10.4” touchscreen display and fully customised software and is packed with functions developed in the Microsoft Windows® environment specifically for this machine. The machining cycle can be optimised by creating cutting lists, thereby reducing scrap and cycle times for workpieces loading-unloading.
Orientable vices

Optionally, both bridge vices can be equipped with adjustable hold-down devices, with adjustable pressure angle. This is an accessory that enables the proper clamping and cutting of profiles with irregular geometry, ensuring maximum rigidity and the maintenance of precision, a distinctive feature of the machine itself. The use of this system is also characterised by simplicity and quick set-up.

Single head cutting-off machines Automatica ER Orientable vices Emmegi
Single head cutting-off machines Automatica ER Sliding protections Emmegi
Sliding protections
Integral work area protection ensures maximum safety during cutting cycles. It consists of two separate protective covers, one for the workpiece clamping and transport area and one for the clamping, cutting and separation area. The two covers have a large scratch-resistant polycarbonate window to follow the machining in full brightness and visibility. They are independent of each other and slide to the outer sides of the machine giving wide and complete access to the workbench.
