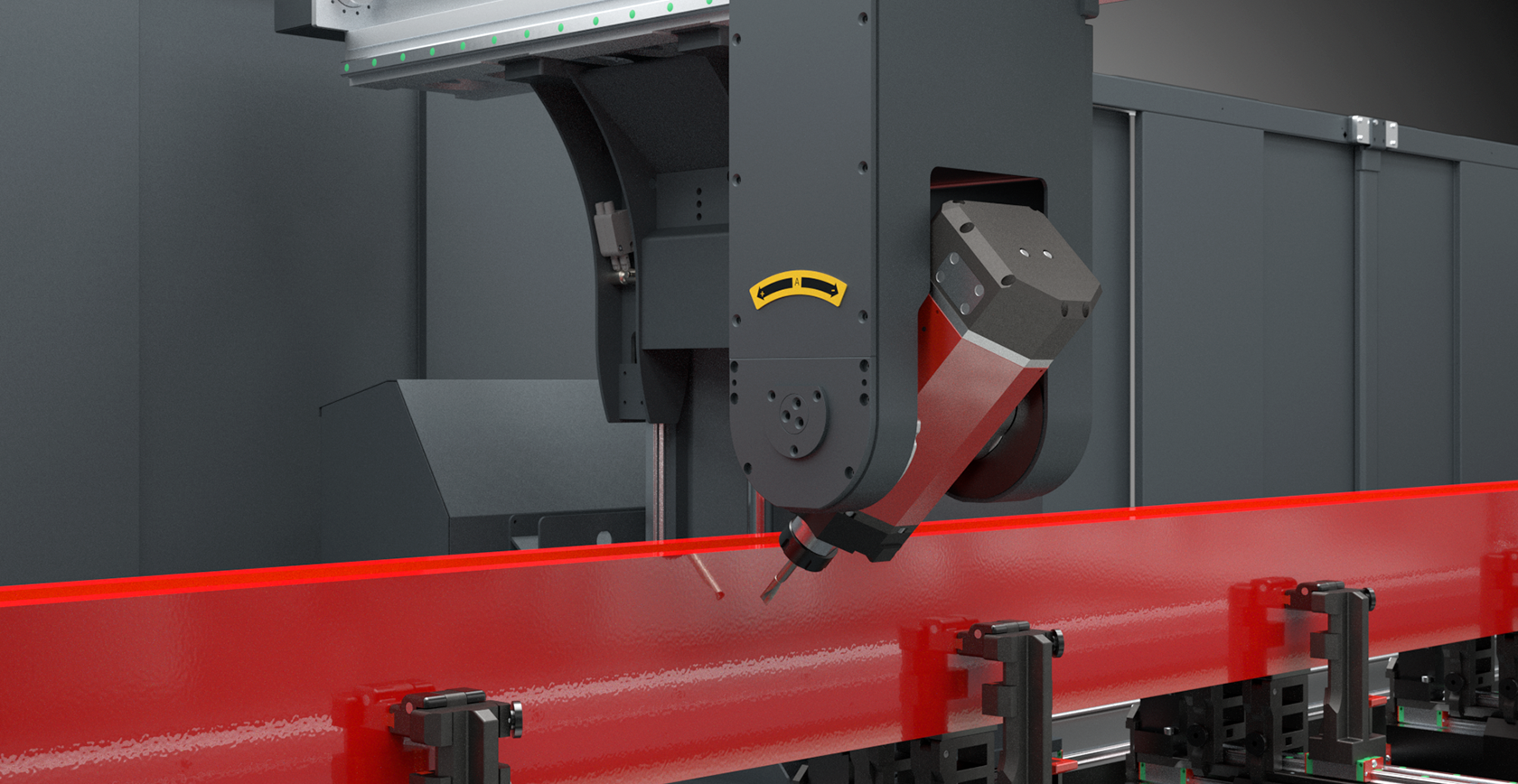

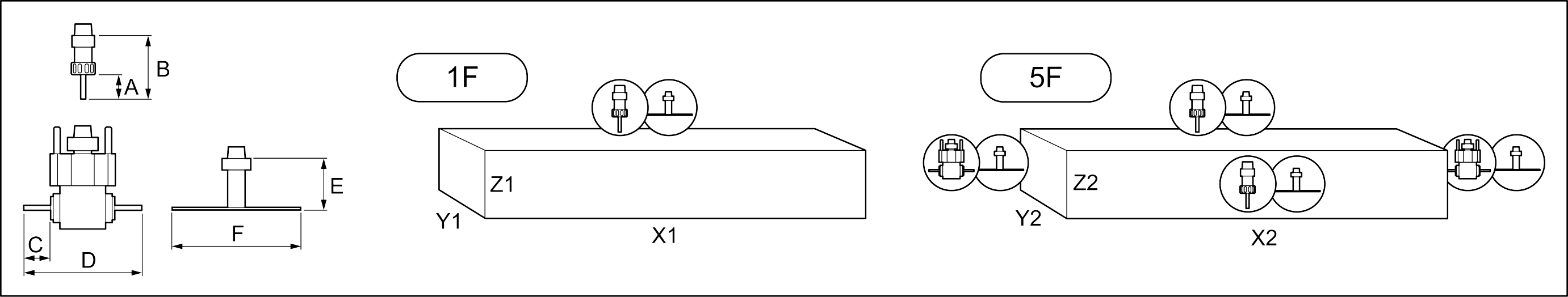

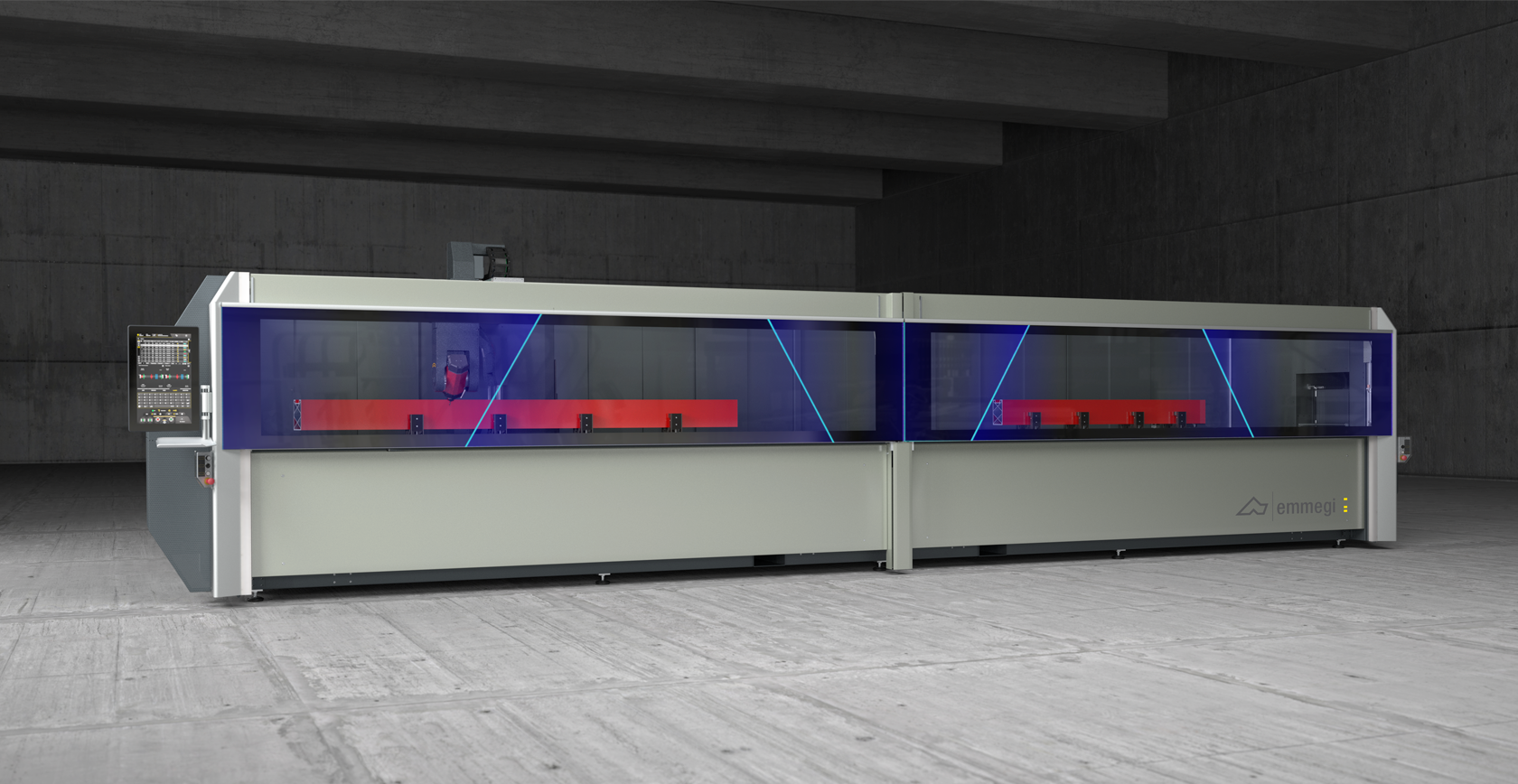

4-axis CNC machining centre designed for working bars or parts in aluminium, PVC, light alloys in general and steel. It includes two different operating modes: the first one, in single-zone mode, for machining whole bars in a single working area, up to 7.0 m long; the second one, in double operation, for machining multiple workpieces in the two separate working areas. All CNC axes are absolute and do not require resetting upon restarting the machine. The machine in HP version features 2 additional axes that, in double operation, allow positioning in the clamps and reference stops in concurrent operation time with respect to the spindle machining processes in the opposite working field. The 4th axis allows the electrospindle to rotate to CNC from –120° to +120° on horizontal axis, to machine the top and the side faces of the profile. Features a 10-place tool magazine, on the gantry (X-axis), with two suitable positions for holding a blade with a maximum diameter of 250 mm and an angular machining head. The mobile worktable facilitates the workpiece loading/unloading operation fully ergonomically, and significantly increases the machinable section on the Y-axis.
