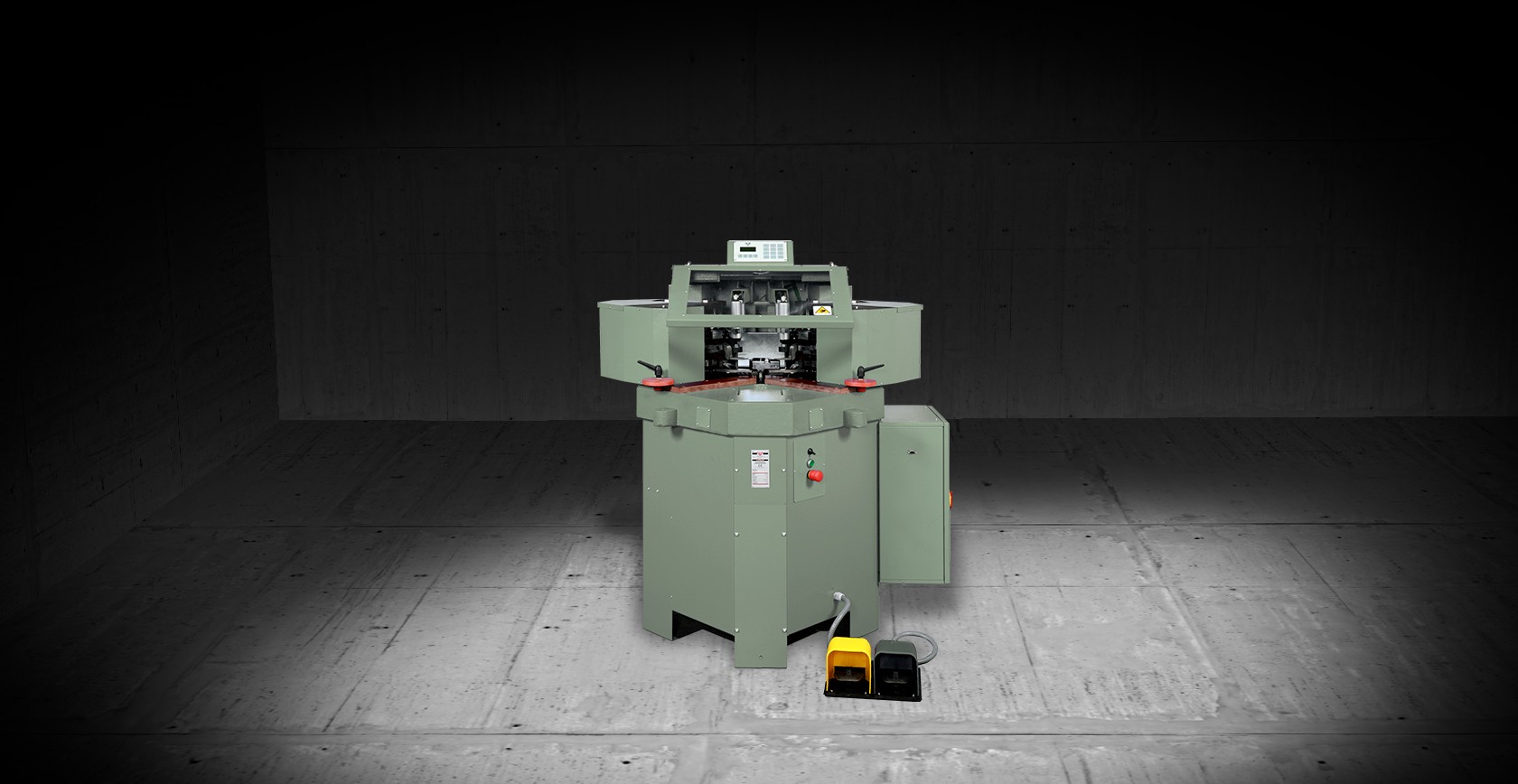

ITACA  SOLUTION

Crimping machine for closing corners of aluminium profiles for doors, windows and facades. The machine is controlled by an electronic system capable of storing, for each profile, the crimping coordinates. This information is required by the management system for the automatic positioning of the profile reference fork and crimping tools. The fork and tools position themselves automatically, simply by recalling the profile on which one must operate. The blades are universal, for all profiles, in the event a tool needs replacing the system notifies the operator.

Technical data arrow_drop_down
CHARACTERISTICS
Nominal pressure (bar)
7
Max pressure (bar)
10
Max crimping force (kgp)
3.500
Knives stroke (mm)
10,5
Bracing clamp stroke (mm)
120
Max crimping height (mm)
120
Horizontal operating range (mm)
40
DIMENSION AND WEIGHT
Overall dimensions LxHxP (mm)
900 x 1.400 x 950
Packing dimensions LxHxP (mm)
1.100 x 1.300 x 1.400
Weight (kg)
480
ACCESSORIES (cutters are not included)
Aluminium bracing clamp of 30 mm
1
Support profiles
2
Standard knives mm 3

Standard knives mm 5

Standard knives mm 8

Standard bracing clamp 20 mm

Standard bracing clamp 30 mm

Pack knives set

Special knives set

Special bracing clamp

Support benches

Included
Available
