Quadra L3

20-axis CNC machining centre for milling, drilling and cutting operations and drilling at head and end of profiles in aluminium and light alloys. QUADRA L3 is composed of an automatic magazine and a push-feed system for extruded profiles of up to 7500 mm, complete with gripper movement to block and translate the profile in the operating unit. Automation enables loading the next bar by synchronising its feed with the simultaneous return of the gripper for the next pick-up. The milling module, cutting module and drilling module for head and end are located in the central part. The 4-axis CNC milling module is equipped with 4 to 6 electrospindles that make it possible to machine any side of the profile, regardless of its orientation. The main cutting module is composed of a 600 mm diameter blade with downstroke movement in three CNC axes. The secondary module operating on 4 CNC axes is equipped with a dual drilling unit that can machine on profile heads. QUADRA L3 is equipped with an automatic ejector to transfer the machined segment from the cutting unit to the unloading magazine. The unloading unit is composed of a transverse belts magazine and handles profiles with a maximum length of 4000 mm (optional 7500 mm). The central cab contains all work units, ensuring a high soundproofing standard and complete protection for the operator.

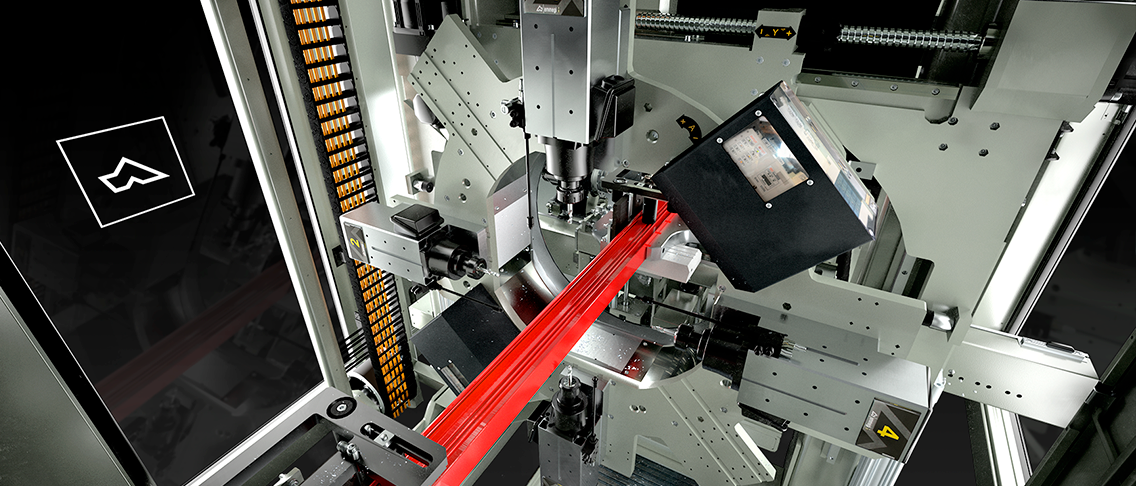

New unit for drilling, milling and tapping at head and end of profiles

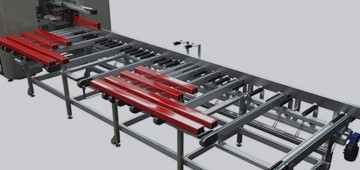

New, safe and ergonomic loading and unloading tables
600 mm vertical cutting module
350 mm horizontal cutting module
Up to 6 spindles with disengagement system
Machining without counterblocks
