Satellite XTE: the new 5-axis machining centre

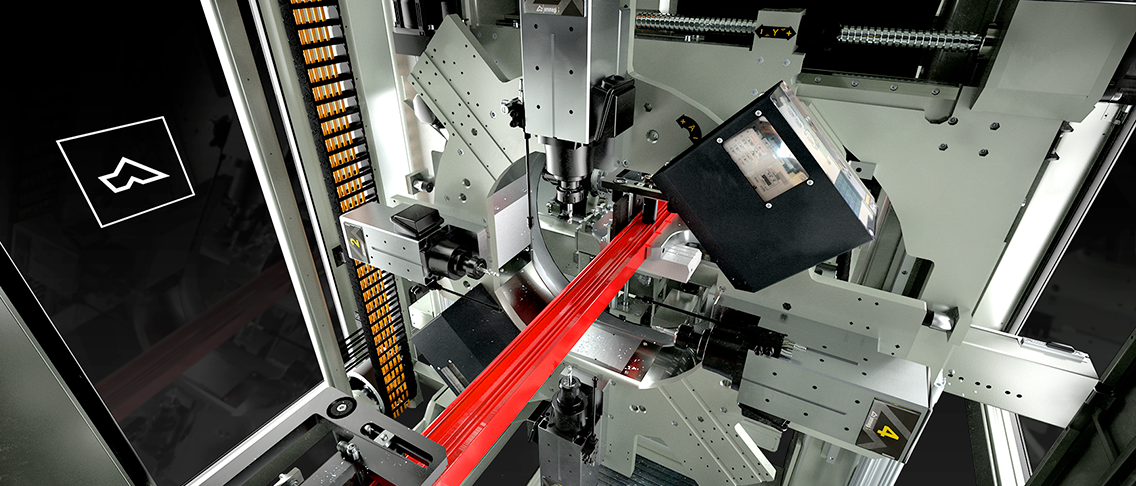

5-axis CNC mobile gantry machining centre, designed to run milling, drilling, threading and cutting processes on large bars in aluminium, PVC, light alloys and steel. The mobile part of the machine mainly consists of a gantry equipped with precision motorisation rack. The high-power electrospindle (15 kW in S1) with HSK-63F tool connection allows even heavy-duty machining to be run with excellent speed and accurate results. The new local safety cab was designed to combine top functionality, accessibility, soundproofing and light with safety and ergonomic requirements. The operator has broad glazed surfaces to check machining execution and, thanks to the total opening system of the cab in two separate parts, easy access during cleaning and maintenance. The cab interior includes the complete segregation of the work area from the remaining sections of the tool magazine and other accessories supplied on the trolley, ensuring maximum chip collection towards the conveyor belt and, as optional, dedicated extraction of machining fumes. The 24-place tool magazine is housed in the mobile gantry; it is equipped with an exchanger arm system that considerably reduces tool change times. A 500 mm blade tool is housed separately in a dedicated magazine system. SATELLITE XTE features new servocontrolled clamps that, in double operation, independently position themselves in concurrent time with respect to the spindle machining processes in the opposite working field. The clamps, which are compact and sturdy, are easy to configure without the use of tools for geometric adjustments. The new stops enable complete coverage of the working field and disengage the area when machining profile heads. All CNC axes are absolute and do not require resetting upon restarting the machine.

Main Focus
> Independent servocontrolled compact clamps
> 24-place tool magazine with exchanger arm / concurrent operation time
> New cab design: high visibility and safety
> Optimised chip conveying for maximum cleaning
> Cutting and separation directly from the bar
> Absolute reference axes
> Adjustable 24” touchscreen monitor with innovative user interface
