LINK

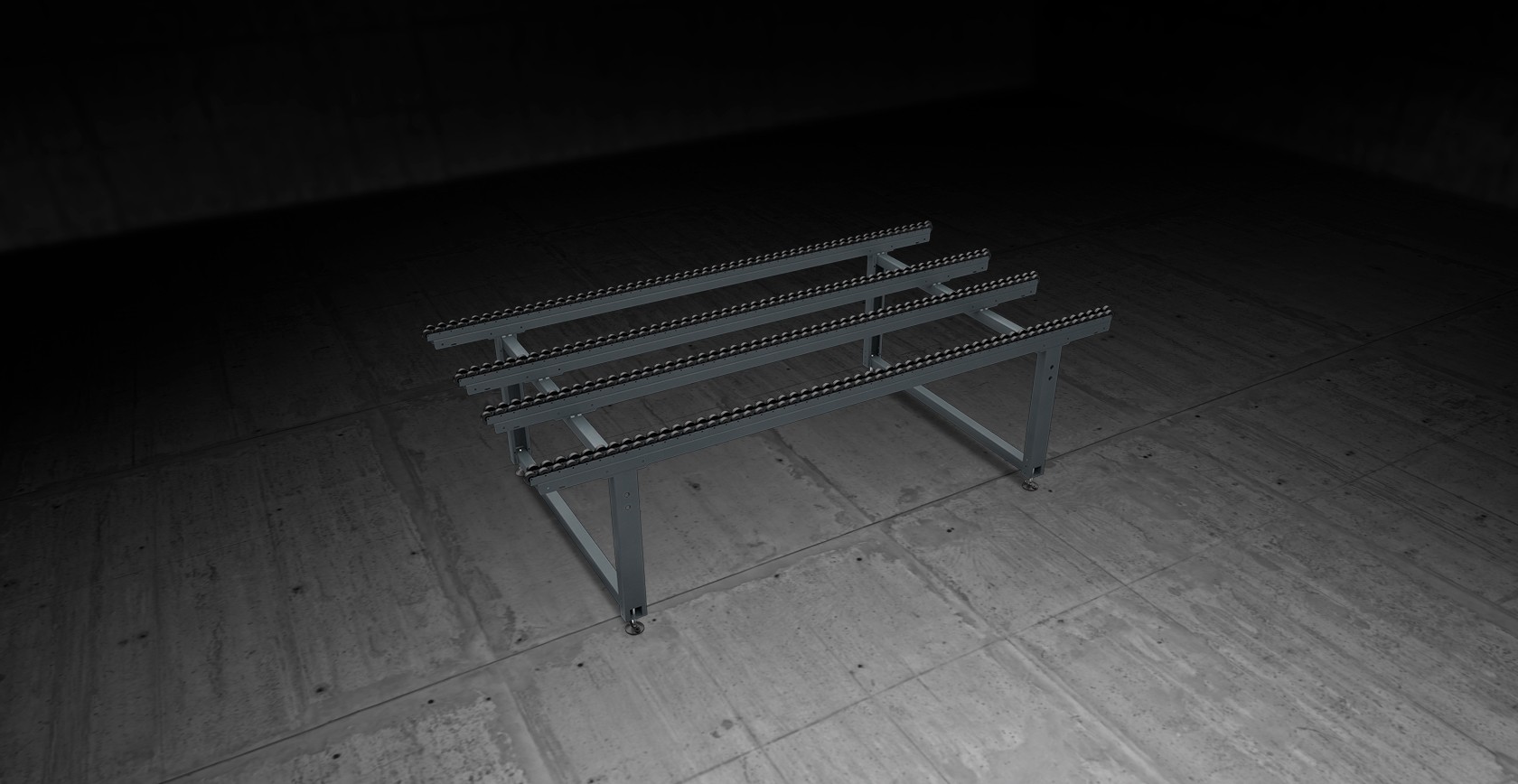

Roller bench designed for connecting workstations and allowing extremely easy frame transfer, even in case of heavy pieces.

Technical data arrow_drop_down
CHARACTERISTICS
Length (based on model) (mm)
1.400 ; 2.000 ; 2.500 ; 3.000
Width (based on model) (mm)
1.400 ; 1.600
Maximum load at 400 mm on the tipping end (kg)
250
Number of rows of rollers installed (depending on width: 1,400 / 1,600)
3 / 4
LH hinged roller conveyor

RH hinged roller conveyor

Work bench

Air consumption (with retractable bench) (Nl/cycle)
26
Included
Avayable

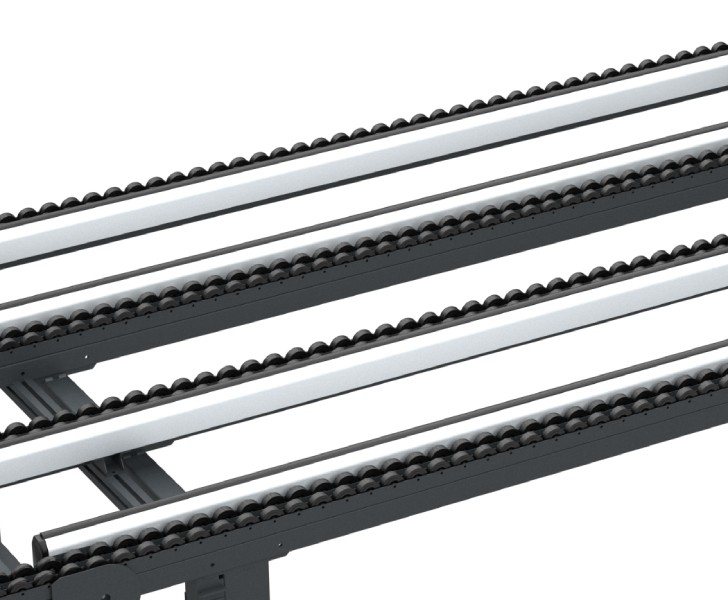

Roller bench
The support surface is formed of a large number of rollers with anti-scratch rubber coating to ensure high speed handling of the frame.
LINK Roller bench Emmegi
LINK Adjustable feet Emmegi

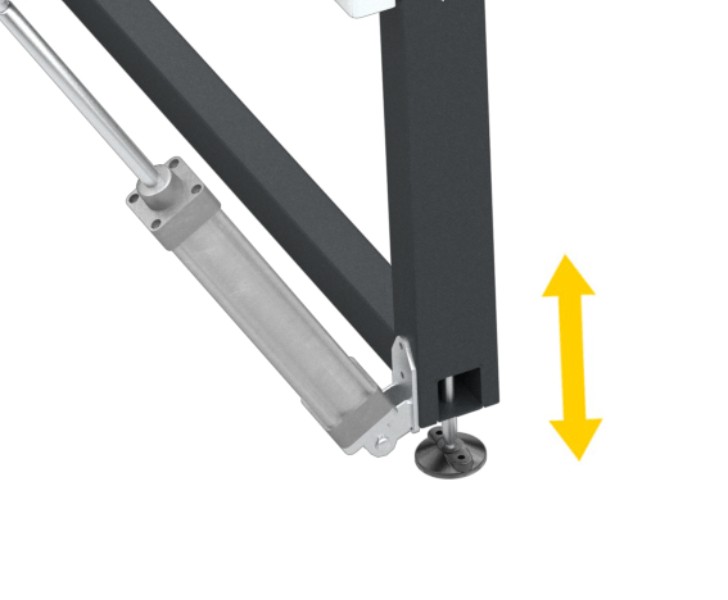

Adjustable feet
Height adjustable feet to ensure the work bench can be positioned at the required height and perfectly flush with the other products in the Dynamic Line. The feet also have holes so they can be anchored to the floor.

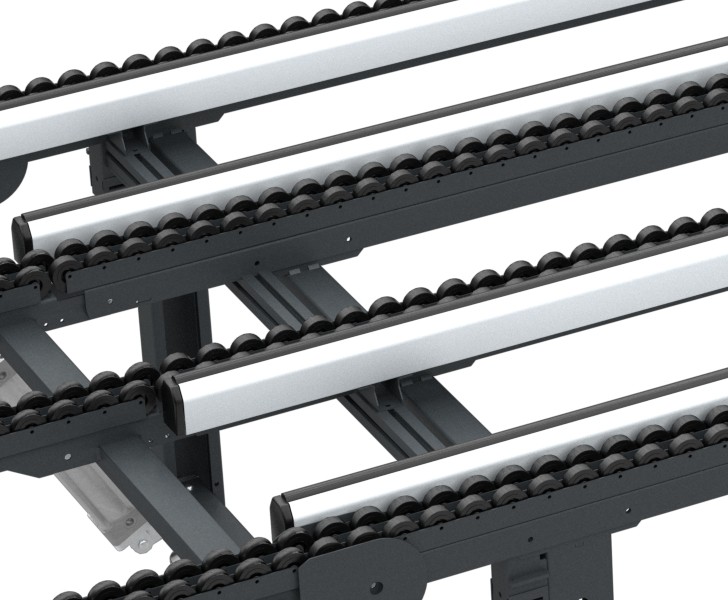

Surface in soft nonslip PVC
The machine can be optionally equipped with a soft PVC support surface. The soft PVC support surface provides a high friction coefficient, which is a valuable asset during assembly procedures.
LINK Surface in soft nonslip PVC Emmegi
LINK Tilting roller conveyor Emmegi

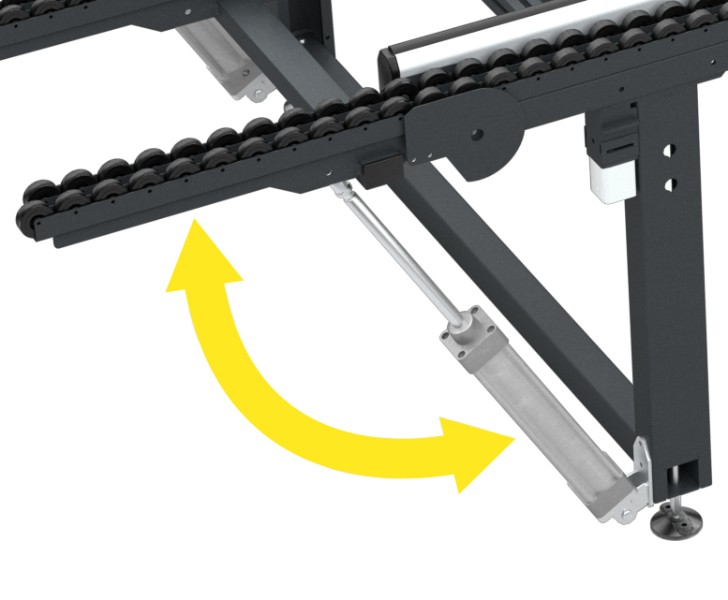

Tilting roller conveyor
The surface is composed of rows of rollers coated with soft PVC; the two ends of the roller conveyor on the right and left can be tilted by means of pneumatic cylinders (optional).
