LILLIPUT 300 M

home / product a to z / L

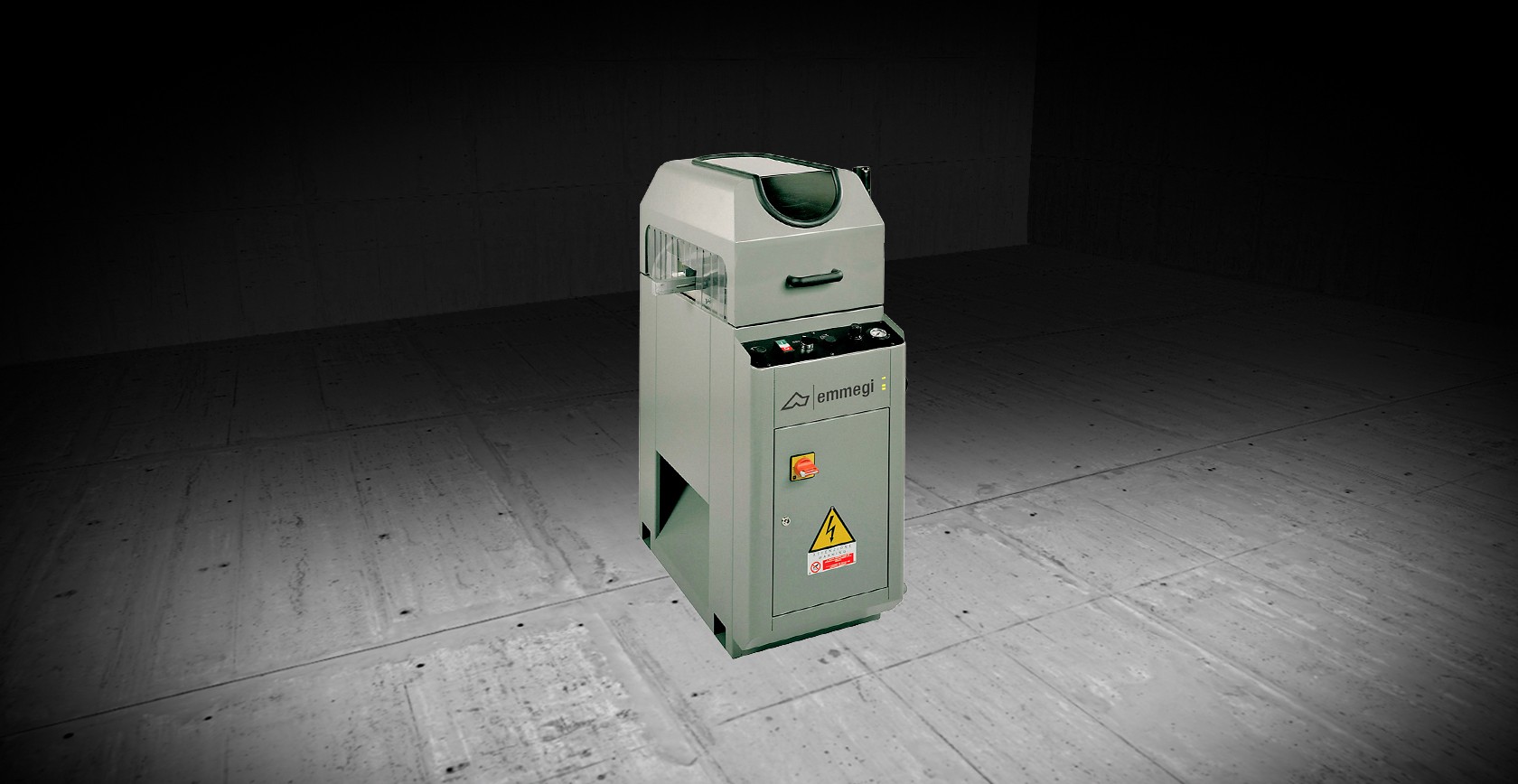

Horizontal end milling machine with manual feed. Milling of intermediate angles, +45° / 90° / -45°. Quick cutter change with pneumatic control. Scratch-proof work table. Fully guarded work zone.

Estimate Request

Technical data

CHARACTERISTICS

Tool speed (rpm)

2800

Base with mill holder magazine and swarf conveyor

Micro-mist lubrication system with water and oil emulsion

Max mill (mm)

Ø = 160

Cutter holder sleeve (mm)

Ø = 27 / 32 x 135

6-position positive indexing stop

Horizontal and vertical pneumatic vices with low pressure device

Vice capacity (mm)

200 x 120

Stroke (mm)

300

Brake motor (kW)

1.1

Compressed air gun for cleaning

Included

Avayable

Vice group and out-of-square

Both horizontal and vertical vices are pneumatically operated with a low-pressure device. Out-of-square is managed with the ability to vary the tilt from -45° to +45° with manual handling. The position is read by graduated scale.

Positive indexing stop

The manual 6-position positive indexing stop enables 6 measurements to be set so that the workpiece can be positioned quickly, thus reducing the time of the work cycle. It is also possible to manually adjust the height of the positive indexing stop.

Rapid pneumatic change

Changing the mill assembly is done pneumatically via the control located in the control panel. This allows the mill assembly housed in the machine to be varied and ensuring the machinability of different extrusions.

Tool magazine

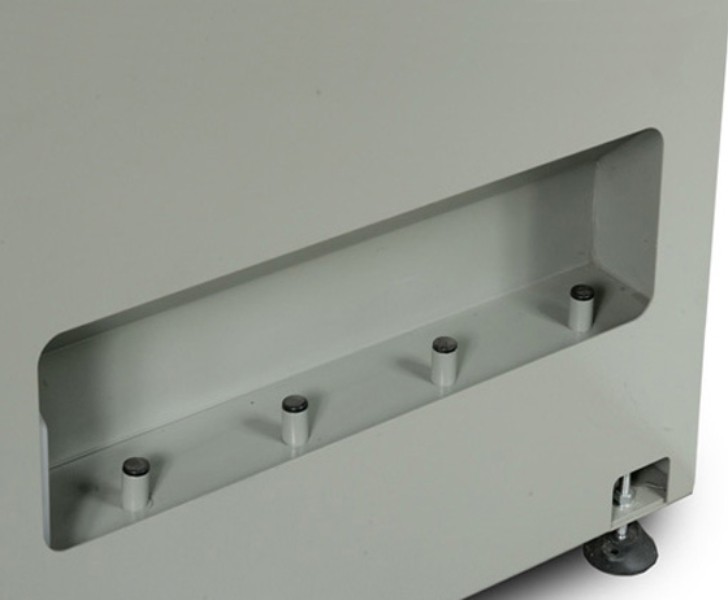

The machine base houses the milling cutter magazine, which is easily accessible in manual picking operations, allowing the cutter assemblies to be housed in neat positions and preserving their integrity.

Profile support roller conveyor

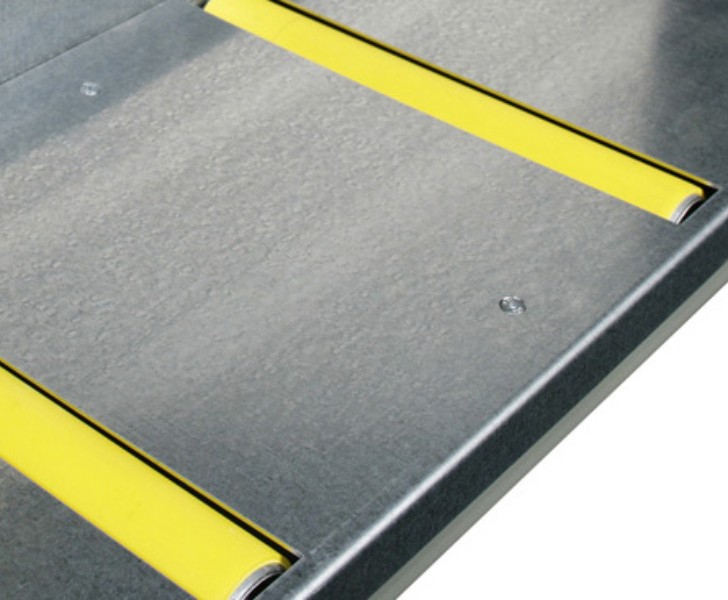

Enables correct positioning in the machine and secure support of the profile in the machining area. Slide rollers make profile handling operations easier.

Control

The push-button panel on the machine control panel allows the management of: air blowing for cleaning the vice table, startup with safety switch, quick tool change.
