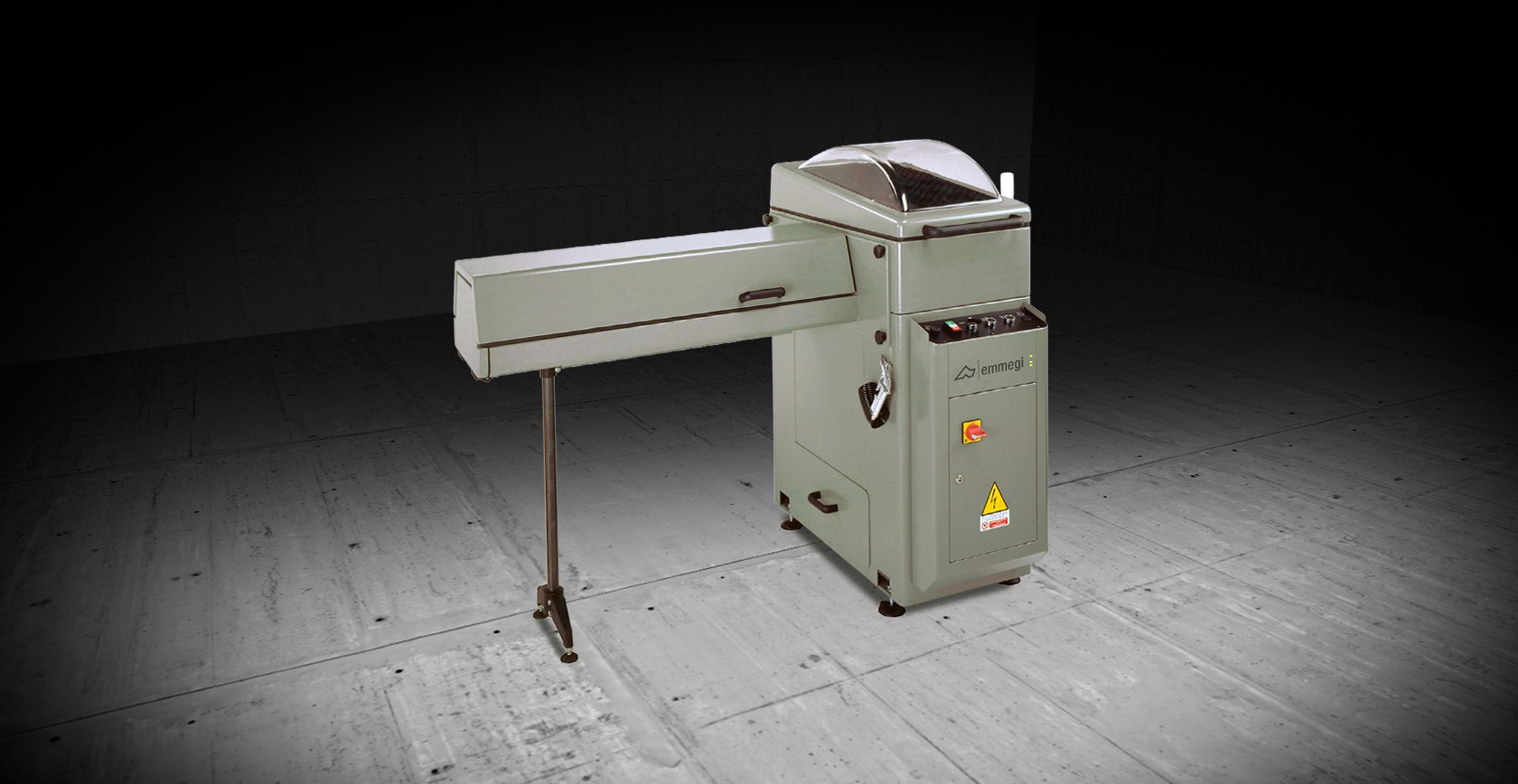

LILLIPUT 350 A INSO

Horizontal end milling machine with electropneumatic feed and automatic machining cycle. Milling of intermediate angles, +45° / 90° / -45°. Variable speed of tool rotation with electronic inverter for improved quality machining on painted profiles and at intermediate angles. Quick cutter change with pneumatic control. Scratch-proof work table. Fully guarded and sounddamped work zone. The automatically operated sound-damped tunnel (L=1.100 or 2.000 mm) reduces the noise level emitted by the machine down to about 75 dB (only in mitre milling at 90°). The self-tilting indexing stop cancels contact between the stop and the workpiece during feed forward.

Technical data arrow_drop_down
CHARACTERISTICS
Motor with inverter (kW)
2.2
Vice bench cleaning air blower

Soundproof tunnel with top hatch and rear opening

Profile support roller conveyor, length (mm)
500
Base with mill holder magazine and swarf collection drawer

Preparation for smoke extraction connection

Injection lubrication system

Tool speed LED display

Max mill (mm)
Ø = 200
Cutter holder sleeve (mm)
Ø = 27 / 32 x 160
6-position positive indexing stop

Horizontal and vertical pneumatic vices with low pressure device

Vice capacity (mm)
240 x 120
Stroke (mm)
350
Tool variable speed (rpm)
4.000 ÷ 7.000
Compressed air gun for cleaning

Included
Avayable
Tunnel control cylinder

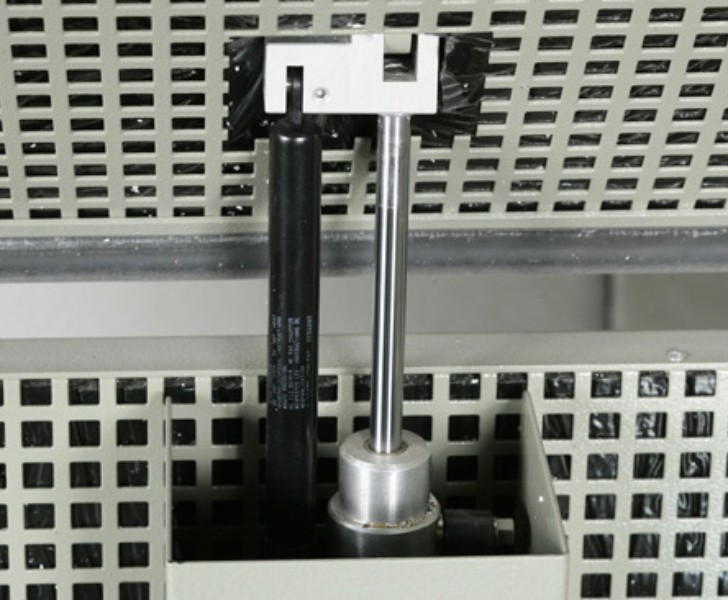

A pneumatic cylinder ensures the opening/closing of the upper door of the soundproof tunnel. The operator's two-hand consent, acting on the control buttons, enables its movement.
LILLIPUT 350 A INSO Tunnel control cylinder Emmegi
LILLIPUT 350 A INSO Swarf collection Emmegi
Swarf collection
A drawer located at the bottom of the machine allows the collection of swarfs generated during machining, facilitating cleaning operations.
Vice group and out-of-square
Both horizontal and vertical vices are pneumatically operated with a low-pressure device. Out-of-square is managed with the ability to vary the tilt from -45° to +45° with manual handling. The position is read by graduated scale.
LILLIPUT 350 A INSO Vice group and out-of-square Emmegi
LILLIPUT 350 A INSO Positive indexing stop Emmegi
Positive indexing stop
The manual 6-position positive indexing stop enables 6 measurements to be set so that the workpiece can be positioned quickly, thus reducing the time of the work cycle. It is also possible to manually adjust the height of the positive indexing stop.
Tunnel soundproofing
The machinability and support of extrusions even of considerable lengths is guaranteed by the presence of the soundproof tunnel. Placed on the side of the machine, it performs the dual function of supporting the profile and performing the machining paying special attention to acoustic comfort with reduced environmental impact in the workshop. Also equipped with an openable rear door, which allows the machinability of particularly long profiles.
LILLIPUT 350 A INSO Tunnel soundproofing Emmegi
LILLIPUT 350 A INSO Rapid pneumatic change Emmegi
Rapid pneumatic change
Changing the mill assembly is done pneumatically via the control located in the control panel. This allows the mill assembly housed in the machine to be varied and ensuring the machinability of different extrusions.
Control with inverter

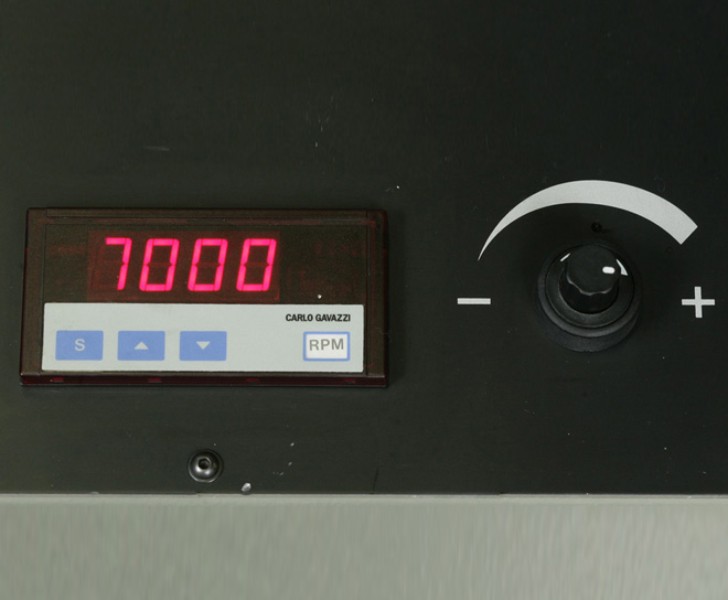

The push-button panel on the machine control panel provides control of the hydro-pneumatic feed of the cutter unit, air blowing for cleaning the vice table, startup with safety switch, and quick change of cutter unit. The inverters make it possible to vary the number of motor revolutions, which are shown on a digital display.
LILLIPUT 350 A INSO Control with inverter Emmegi
