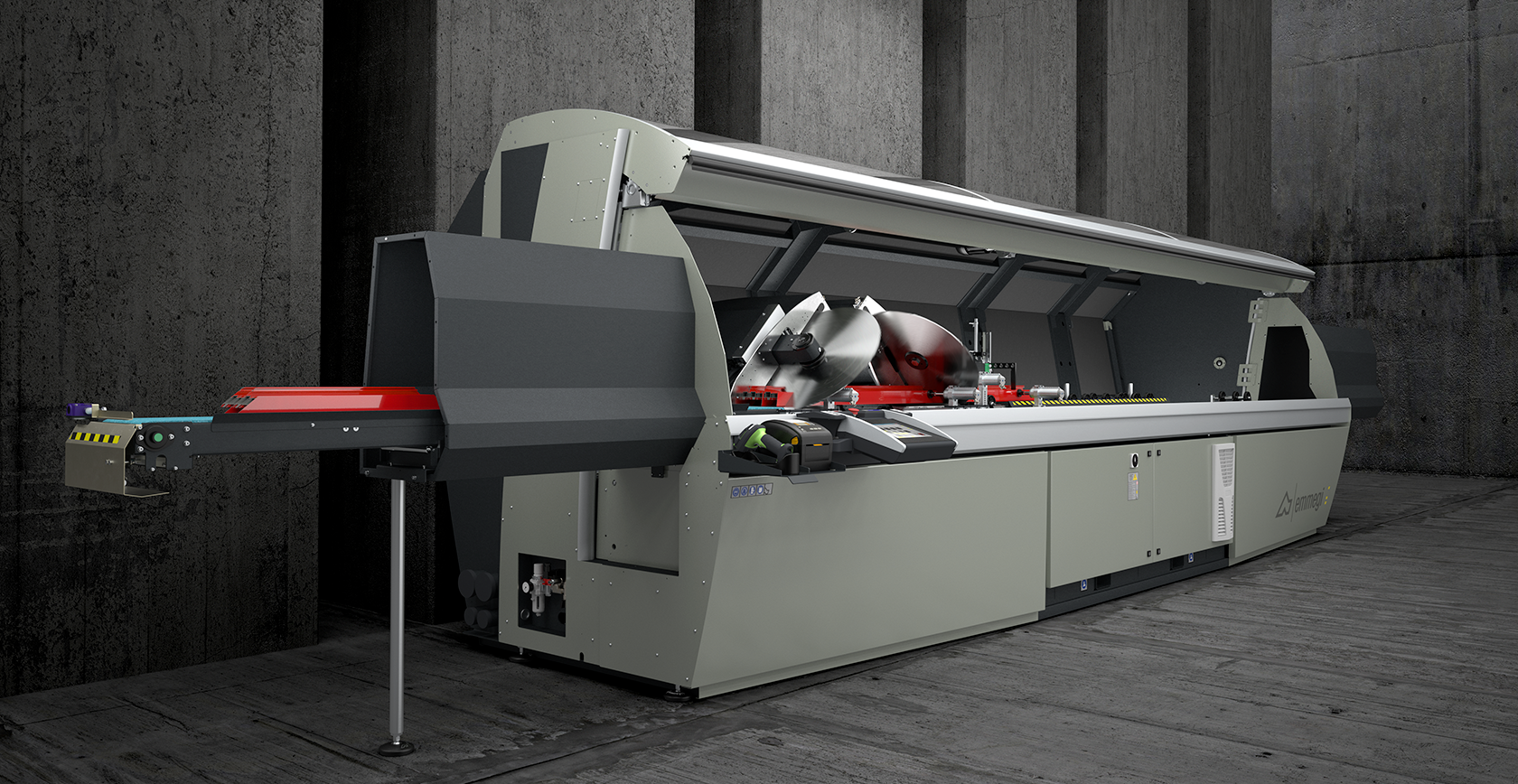

PrecisionRS-HS

Twin head cutting-off machine with 5 NC axes for aluminium, PVC and lightweight alloys, with automatic mobile head movement and electronic management of all angles from 22°30’ (internal) to 45° (external) with a resolution of 280 positions per degree. The 600 mm cemented carbide blades have two different feed modes. Standard feed optimises the cutting chart in the vertical direction for cutting profiles of more than 450 mm in height. Radial mode, protected by one of the several patents covering this machine, makes use of an extremely generous cutting stroke that surpasses the vertical reference surface and produces ample working dimensions in the horizontal direction. This solution allows 45° mitre cuts of profiles of up to 240 mm in width. Blade feed is controlled by two NC axes to ensure optimal adjustment of the blades exit speed and stroke. All axis movements are supported on guideways and recirculating ball shoes. The automatic fully enclosed cutting area guarding, the design of the operator panels, and frontal access to the electric and pneumatic panel, confirm the advanced nature of this machine also from the perspective of safety and ergonomics. PRECISION RS has 5 ultra-high precision NC axes for mobile head positioning, inclination of the two cutting units and for the blades feed movement during cutting operations. Positioning is achieved using an absolute linear magnetic strip measuring system, capable of storing the required position in the memory and dispensing with the need for axes homing procedures. Numerical control of all movements makes it possible to manage all operating parameters – including the blades exit stroke length – from a state-of-the-art touchscreen control console. The HS (High Speed) version envisions an X axis with higher speed and all necessary protections for the automatic work, even unattended.

Technical data arrow_drop_down
MACHINE CHARACTERISTICS
Electronic control of the X axis

HS version X axis positioning speed (standard) (m/min)
35
HS version X axis positioning speed (optional) (m/min)
50
Mobile head position reading with absolute magnetic strip direct measuring system

Detection of cutting unit tilting through direct measurement system with absolute magnetic strip

Electronic control of intermediate angles

Maximum internal inclination
22°30'
Maximum external inclination
45°
CN electronic axis of the blade feed

Electronic profile thickness gauge

CUTTING UNIT
Cemented carbide blade
2
Brushless blade motor rated power - L version (kW)
1,5
Brushless blade motor peak power - L version (kW)
4,5
Brushless blade motor rated power - H version (kW)
2,5
Brushless blade motor peak power - H version (kW)
7,5
WORK AREA
Effective cut, according to model (mm)
5.000 / 6.000
Maximum contact arc length to cut aluminium (mm) (L version)
35
Maximum contact arc length to cut aluminium (mm) (H version)
130
Standard minimum cut with 2 heads at 90° (mm)
390
Minimum cut with PRO software with 2 heads at 90° (mm)
280
Minimum cut with PRO software with 2 heads at 45° internal (mm)
520
Minimum push feed cut with SLICE software (mm)
0
Maximum profile width with standard cut (mm)
167
Maximum profile height with 90° radial cut (mm)
215
Maximum profile height with external 45° radial cut (mm)
90
Maximum profile height with internal 45° radial cut (mm)
150
Maximum profile width with radial cut (mm)
240
SAFETY DEVICES AND PROTECTIONS
Electrically operated fully enclosed front guarding

Soundproofed integral protection cabin with internal lighting

PROFILE POSITIONING AND CLAMPING
Pair of horizontal pneumatic vices with "low pressure" device

Pair of horizontal vertical vices

Pair of additional horizontal vices

Manual vices position adjustment on graphic interface

DIGICLAMP - digital vices supervision and positioning control system

Intermediate pneumatic profile support

Roller conveyor on the mobile head with servo-controlled pneumatically operated profile supports

Conveyor belt for step-by-step or automatic cut (HS version only)

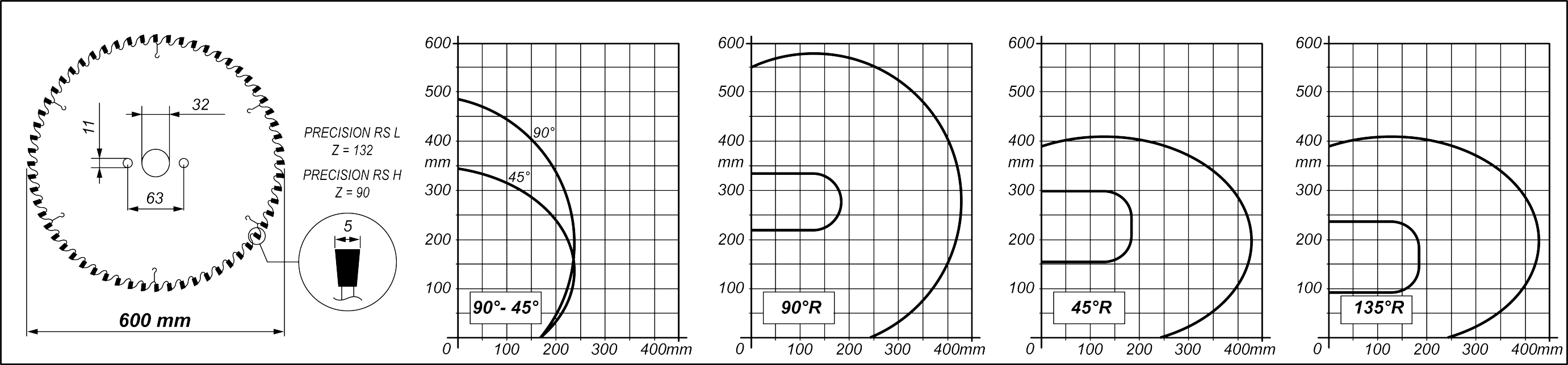

CUTTING DIAGRAM
Included
Avayable
Virtual axis for cutting units inclination (Optional)
Inclination of each head of up to 22°30’ inwards is provided by two circular guides mounted on four pairs of steel rollers. This patented solution makes it possible to eliminate obstructions in the cutting area, all to the benefit of profile positioning and clamping, while also offering greater rigidity than traditional systems. The absolute magnetic strip positioning system dispenses with the need for axes homing procedures, with the associated idle times.
Precision RS-HS Virtual axis for cutting units inclination Emmegi
Precision RS-HS Radial cut Emmegi
Radial cut (Optional)
With suitable adjustments, the blade exit stroke can be extended beyond the front surface thus greatly increasing the horizontal axis of the cutting angle chart. Protected by another Emmegi Patent, the radial operating mode enables cutting of large section extrusions or simultaneous cutting of multiple profiles. The optimised geometrical design of the new cutting units makes it possible to obtain a cutting angle chart with generous dimensions also in terms of height.
Label printer

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

Precision RS-HS Label printer Emmegi
Precision RS-HS Profile clamping Emmegi
Profile clamping (Optional)
Making use of the ample space provided by the use of the virtual axis, clamping of the profile to be cut is performed by two horizontal hold-down devices with extreme precision and in absolute safely. For vertical clamping, particularly for special cuts, the machine can be equipped with a patented system of horizontal hold-down devices. The Precision cutting-off machine can be equipped with a roller conveyor on the mobile head, for standard feeding and unloading, or on the fixed head for feeding from the left-hand side.

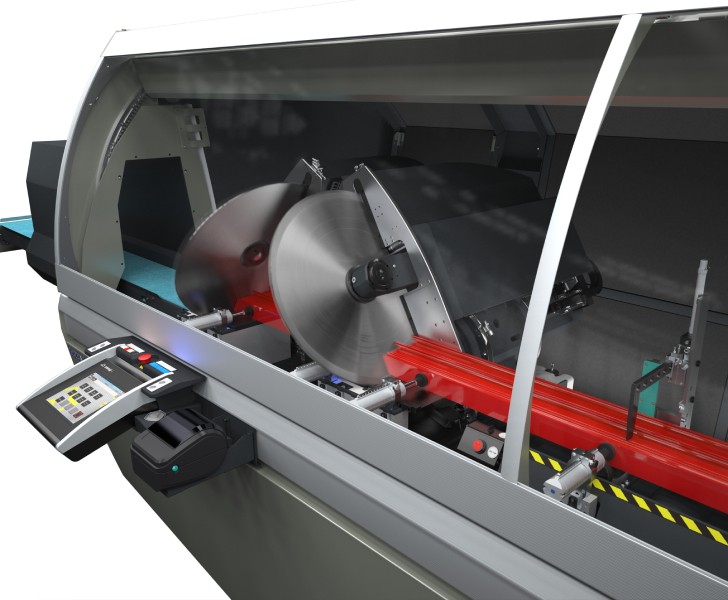

HS – High Speed (Optional)
The HS – High Speed version is equipped with a faster X axis (mobile head positioning), and features an integral protection on the sides and at the back, to operate in complete safety, increasing productivity. The safety characteristics of this version, fully inaccessible during operation, allow using automatic cutting cycles, even not supervised, at maximum operational performance.
Precision RS-HS HS – High Speed Emmegi
Precision RS-HS Control Emmegi
Control (Optional)
The ergonomic state-of-the-art control panel features a 10.4” touchscreen display and fully customised software and is packed with functions developed in the Microsoft Windows® environment specifically for this machine. The machining cycle can be optimised by creating cutting lists, thereby reducing scrap and cycle times for workpieces loading-unloading.
