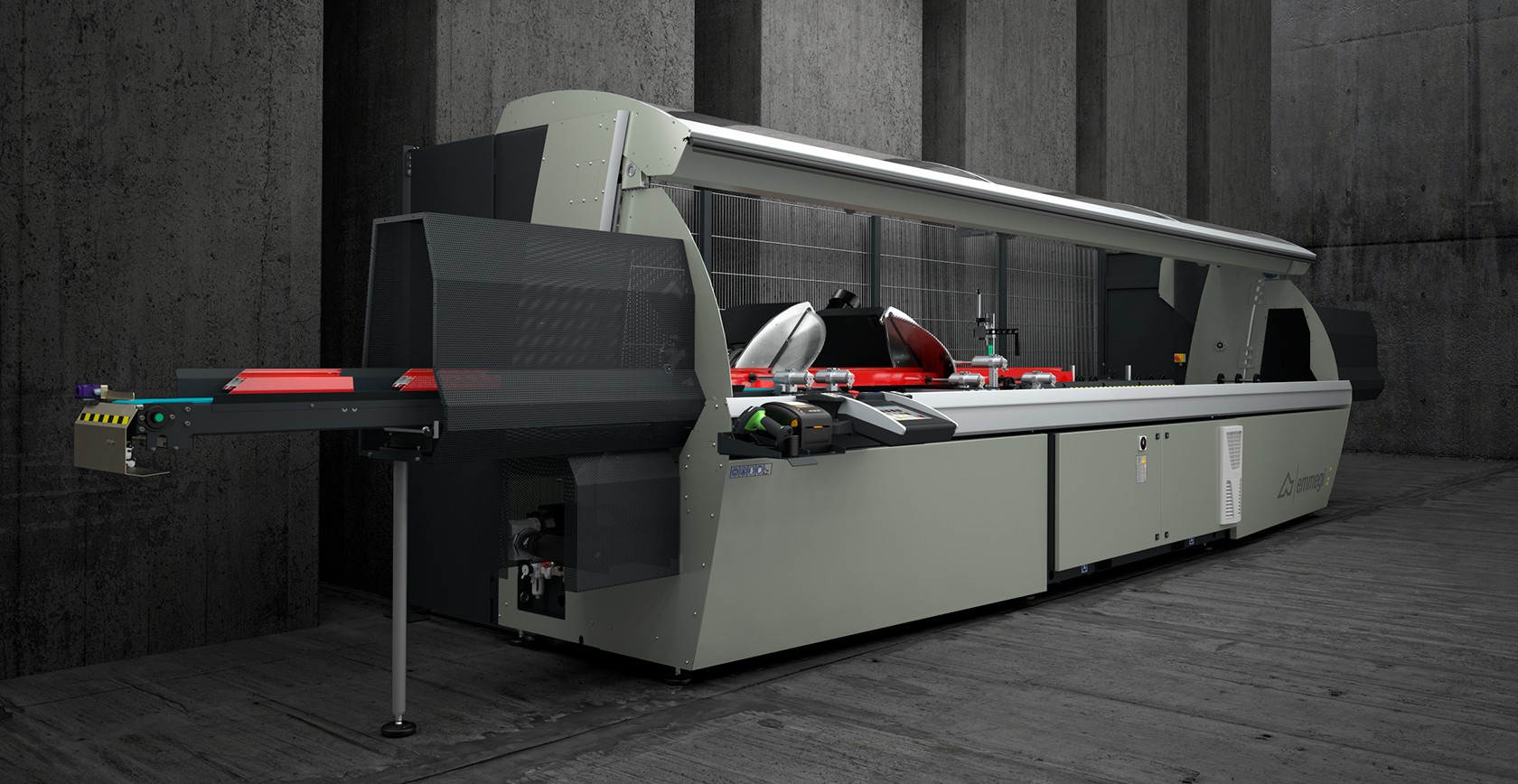

PrecisionT2 E-HS

Double-head cutting-off machine with 3 or 5 controlled axes for aluminium, PVC and light alloys with automatic movement of the mobile head and electronic management of all 45° (internal) to 15° (external) angles, with a precision, within each degree, of 280 positions. In the basic version blade advancement is driven by a couple of hydro-pneumatic cylinders. In version E this advancement is also managed by a couple of CN axes, to ensure optimal speed regulation and output travel of the blades. 550mm-blade Available with a useful cut of 5 m or 6 m in length.

The HS High Speed version envisions an X axis with higher speed and all necessary protections for the automatic work, even unattended, in order to obtain maximum production.

Technical data arrow_drop_down
MACHINE CHARACTERISTICS
Electronic control of the X axis

HS version X axis positioning speed (standard) (m/min)
35
HS version X axis positioning speed (optional) (m/min)
50
Mobile head position reading with absolute magnetic strip direct measuring system

Detection of cutting unit tilting through direct measurement system with absolute magnetic strip

Electronic control of intermediate angles

Maximum internal inclination
45°
Maximum external inclination
15°
Hydropneumatic blade feed

CN electronic axis of the blade feed (E version)

Effective cut, according to model (mm)
5.000 / 6.000
Cemented carbide blade
2
Blade diameter (mm)
550
Blade motor power (kW)
2,64
Electronic profile thickness gauge

SAFETY DEVICES AND PROTECTIONS
Electrically operated fully enclosed front guarding

Side protection tunnels and wall connection RH and LH fence

Fourth side fence

Soundproofed integral protection cabin with internal lighting

PROFILE POSITIONING AND CLAMPING
Pair of horizontal pneumatic vices with "low pressure" device

Pair of horizontal vertical vices

Pair of additional horizontal vices

Intermediate pneumatic profile support

Roller conveyor on the mobile head with servo-controlled pneumatically operated profile supports

Additional vice for profile support on mobile head roller conveyor

Conveyor belt for step-by-step or automatic cut (HS version only)

FUNCTIONS
Perform single cuts

Execution of intermediate angles cuts

Execution of cyclical cuts from cutting lists

Bar optimisation

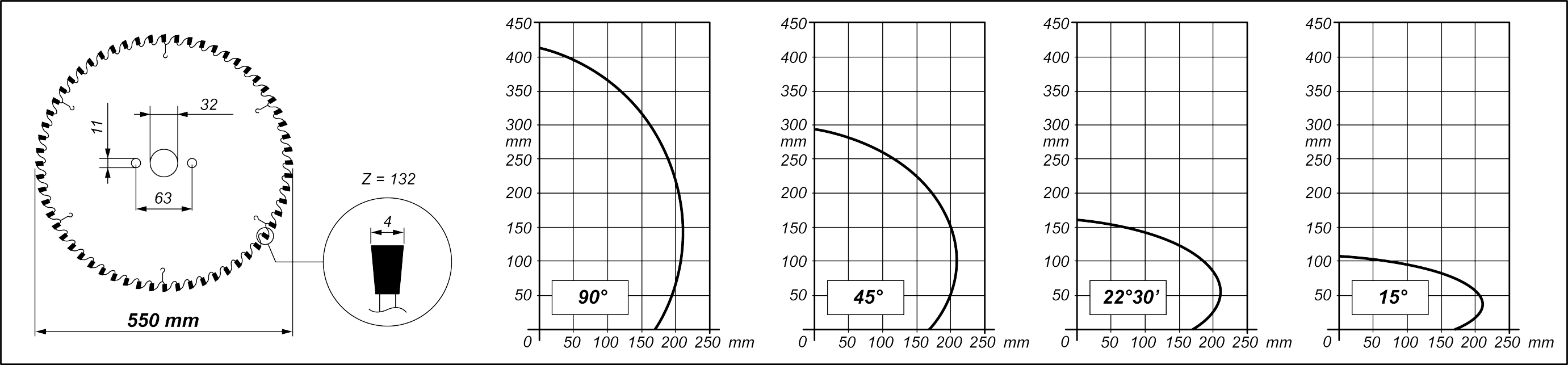

CUTTING DIAGRAM
Included
Avayable
Label printer

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

Precision T2 E-HS Label printer Emmegi
Precision T2 E-HS Cutting units inclination virtual axis Emmegi
Cutting units inclination virtual axis (Optional)

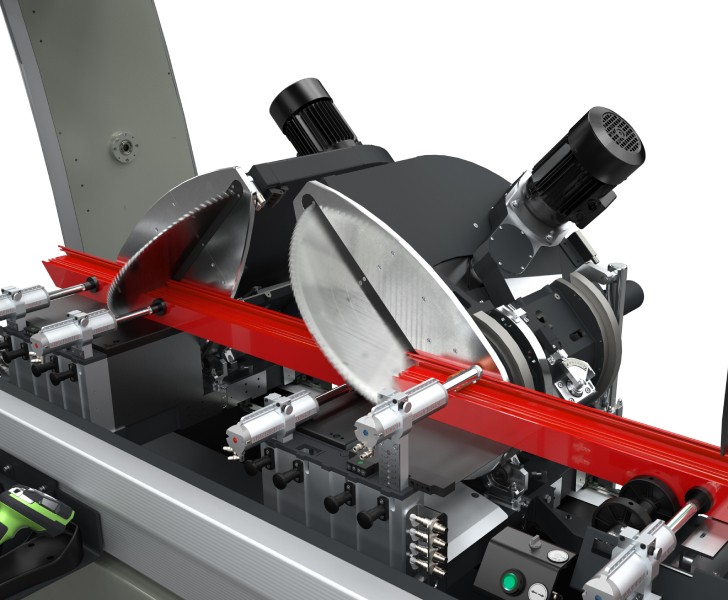

Inclination of each head of up to 15° outwards is provided by two circular guides mounted on four pairs of steel rollers. This patented solution makes it possible to eliminate obstructions in the cutting area, all to the benefit of profile positioning and clamping, while also offering greater rigidity than traditional systems. The absolute magnetic strip positioning system dispenses with the need for axes homing procedures, with the associated idle times.
Profile clamping (Optional)
Making use of the ample space provided by the use of the virtual axis, clamping of the profile to be cut is performed by two horizontal hold-down devices with extreme precision and in absolute safely. For vertical clamping, particularly for special cuts, the machine can be equipped with a patented system of horizontal hold-down devices.
Precision T2 E-HS Profile clamping Emmegi

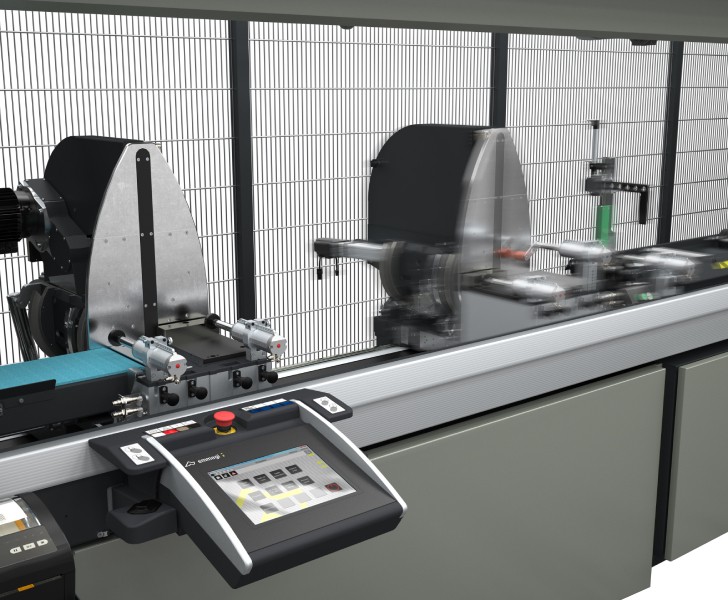

Precision T2 E-HS HS – High Speed Emmegi
HS – High Speed (Optional)
The HS – High Speed version is equipped with a faster X axis (mobile head positioning), and features an integral protection on the sides and at the back, to operate in complete safety, increasing productivity. The safety characteristics of this version, fully inaccessible during operation, allow using automatic cutting cycles, even not supervised, at maximum operational performance.
Control (Optional)
The ergonomic state-of-the-art control panel features a 10.4” touchscreen display and fully customised software and is packed with functions developed in the Microsoft Windows® environment specifically for this machine. The machining cycle can be optimised by creating cutting lists, thereby reducing scrap and cycle times for workpieces loading-unloading.
Precision T2 E-HS Control Emmegi
Precision T2 E-HS Load and unload Emmegi
Load and unload (Optional)
The Precision cutting-off machine can be equipped with a roller conveyor on the mobile head, for standard feeding and unloading, or on the fixed head for feeding from the left-hand side. A pneumatic stop device on the mobile head is available to ease positioning of the profile in this loading mode.
