Precision  C2

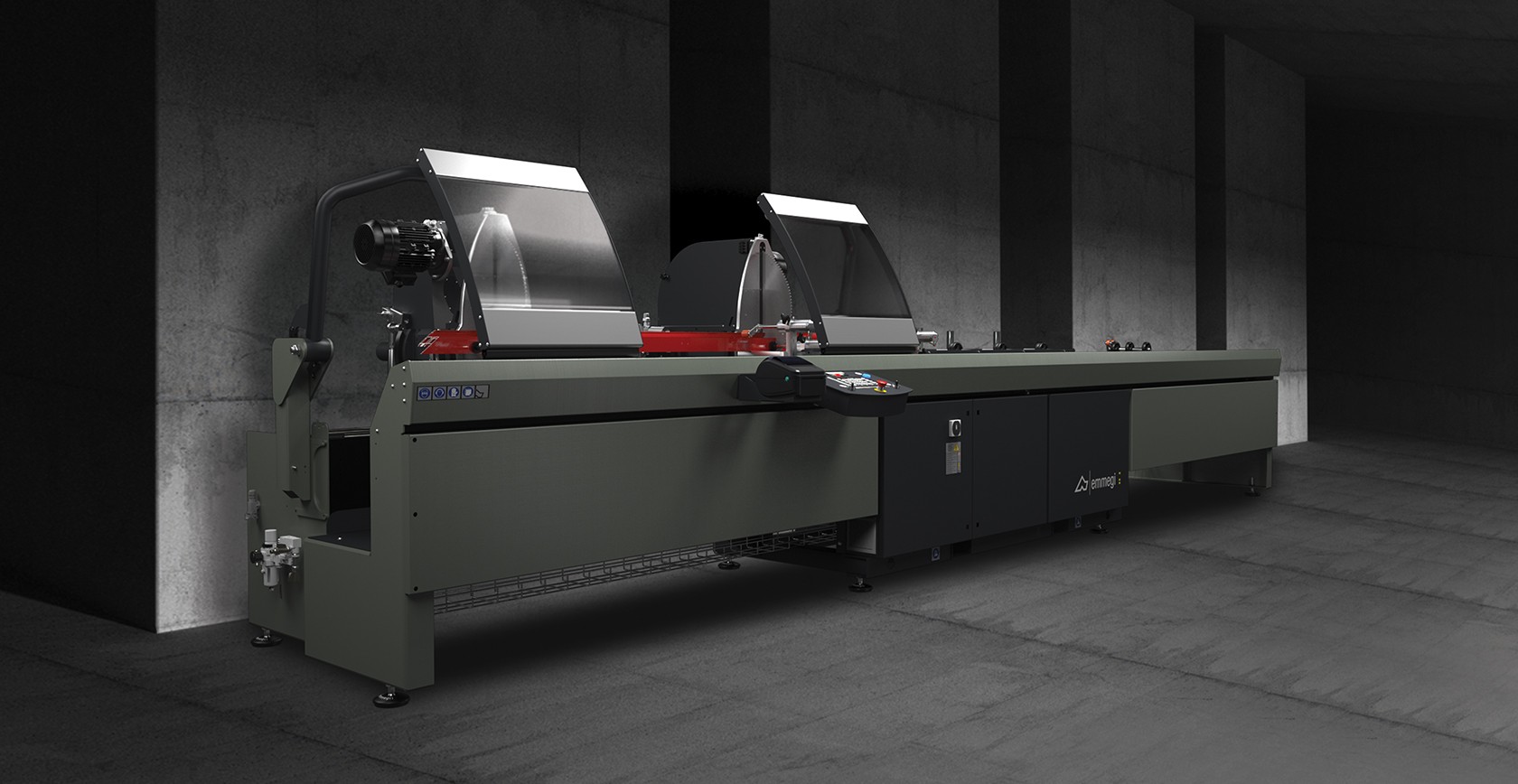

Electronic twin-head cutting-off machine with frontal blade Electronic twin-head cutting-off machine with the moving cutting head powered by brushless motor with numerical control system. Pneumatic control of the angular setting from 90° to 22°30’ (external) with mechanic adjustment of intermediate angles. Hydropneumatic blade feed. Available in two versions with 4000 and 5000 mm cutting length.

Technical data arrow_drop_down
MACHINE CHARACTERISTICS
Electronic control of the X axis

Standard X axis positioning speed (m/min)
25
Mobile head position reading with absolute magnetic strip direct measuring system

Mechanical adjustment of intermediate angles

Maximum external inclination
22°30'
Hydropneumatic blade feed

Effective cut, according to model (mm)
4.000 / 5.000
Cemented carbide blade
2
Blade diameter (mm)
550
Blade motor power (kW)
2,2
Electronic profile thickness gauge

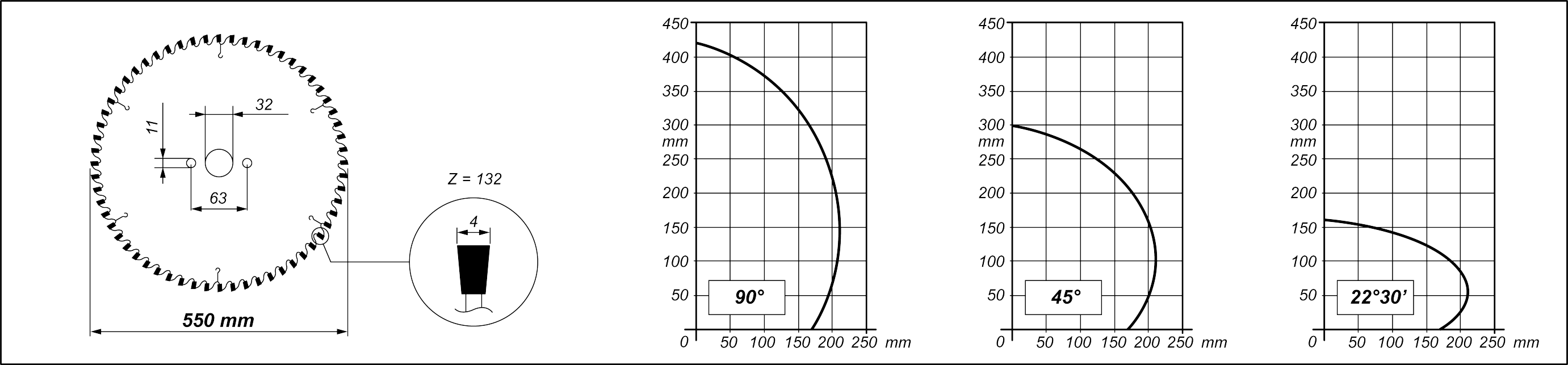

CUTTING DIAGRAM
SAFETY DEVICES AND PROTECTIONS
Pneumatically-operated front local protection

PROFILE POSITIONING AND CLAMPING
Pair of horizontal pneumatic vices with "low pressure" device

Pair of horizontal vertical vices

Pair of horizontal offset vices for cut <45°

Intermediate mechanical profile supports
3
Roller conveyor on mobile head (mm)
1.850
Additional vice for profile support on roller conveyor

Optional support surface kit on fixed head + horizontal/offset vice

LUBRICATION AND SUCTION
Micro-mist lubrication system with water and oil emulsion

Minimal oil diffusion lubrication system

Preparation for automatic start-up of external exhauster

FUNCTIONS
Perform single cuts

Execution of intermediate angles cuts

Execution of cyclical cuts from cutting lists

Special cut function PRO (longer, shorter, chamfered or wedge cut)

Semi-automatic cut function SLICE (thrust cut)

Cutting lists import

Included
Available
Loading and unloading

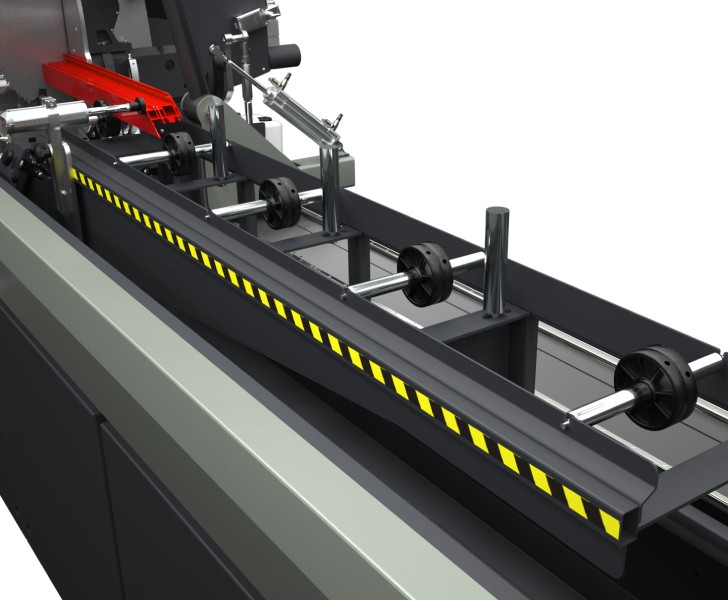

The cutting-off machine is equipped with a roller conveyor on a mobile head for standard loading and unloading procedures. The roller conveyor can be optionally fitted with an extra vice to immobilise the residual profile and an electronic machined profile thickness meter for automatic cutting positions correction in accordance with the real profile dimensions, with the associated surface treatments tolerance.
Precision C2 Loading and unloading Emmegi
Precision C2 Virtual axis for cutting units inclination Emmegi
Virtual axis for cutting units inclination

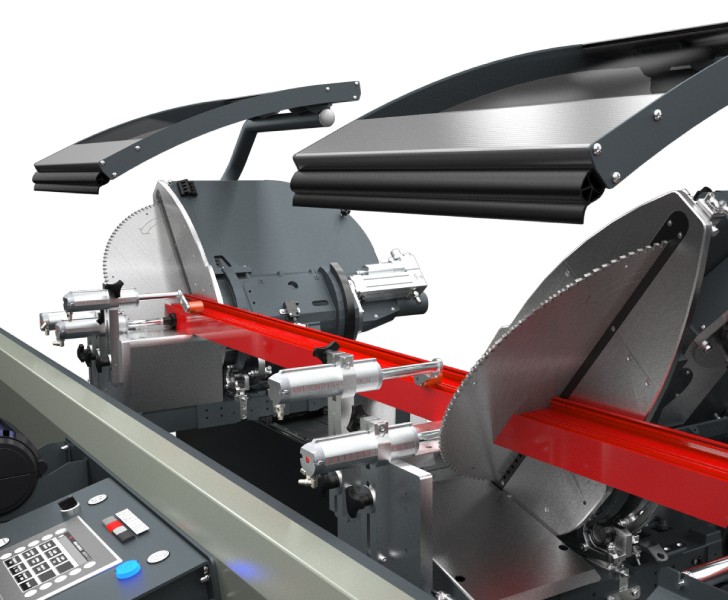

Inclination of each head, up to 22°30' outwards for both the aluminium and PVC machine versions, is achieved on two circular guides mounted on four pairs of steel rollers. This patented solution makes it possible to eliminate obstructions in the cutting area, all to the benefit of profile positioning and clamping, while also offering greater rigidity than traditional systems. X axis absolute magnetic strip positioning eliminates the need for the axes reference and connected cycle times.
Profile clamping

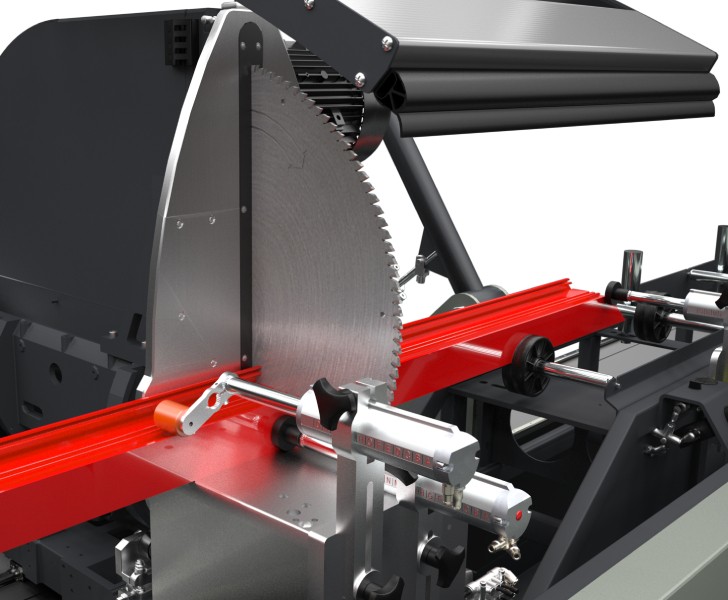

Making use of the ample space provided by the use of the virtual axis, clamping of the profile to be cut is performed by two horizontal hold-down devices with extreme precision and in absolute safely. For vertical clamping, particularly for special cuts, the machine can be equipped with a patented system of horizontal hold-down devices. Three mechanically operated intermediate supports deploy automatically to support the profile for very long cutting lengths.

Precision C2 Profile clamping Emmegi
Precision C2 Head protections Emmegi
Head protections

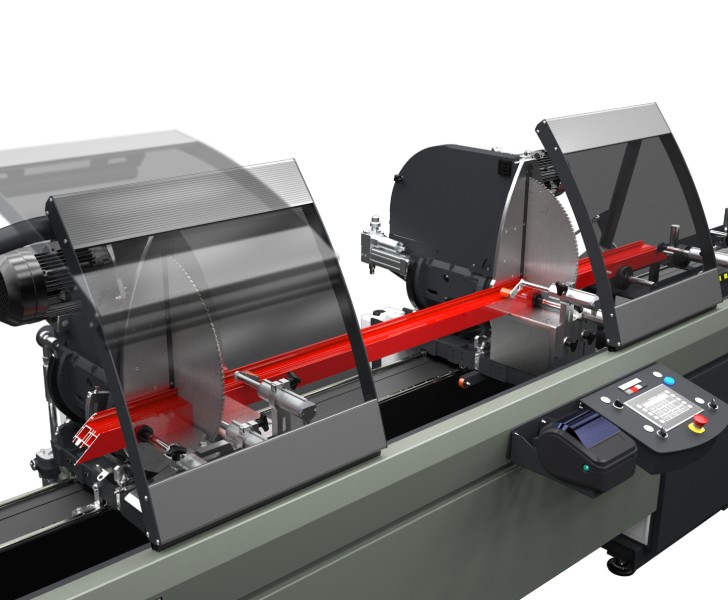

The machining zone is protected by two automatically positioned local guards installed on the cutting units. The guards are made of scratch-proof polycarbonate and they are opened/closed automatically by a pneumatic cylinder at the appropriate points of the cutting cycle.
Control

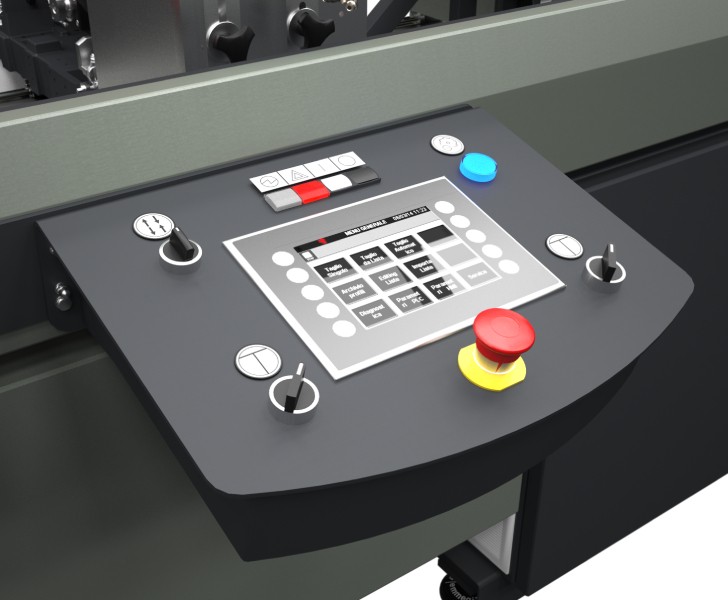

The intuitively designed control panel allows correct mobile heads positioning in accordance with the required cutting schedule. The interface uses a 5.7” touch-screen and fully personalised software and is packed with bespoke functions that are unique to this machine. The control panel can be optionally installed on bearings sliding on a rail that spans the entire front of the machine. The machining cycle can be optimised by creating cutting lists, thereby reducing scrap and cycle times for parts loading-unloading.
Precision C2 Control Emmegi
Precision C2 Label printer Emmegi
Label printer (Optional)

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.
