CometX4

home / product a to z / C

CNC machining centre, with 4 controlled axes, and 7 kW spindle designed for machining bars or parts of aluminium, PVC, light alloys in general or steel up to 2 mm. It is equipped with a 10-place tool magazine, with provision for accepting one angle machining head and a blade in order to be able to machine on the 5 faces of the workpiece. The 4th CN axis allows the electrospindle to continuously rotate from 0° to 180° to perform the work on the three sides of the profile. It also has a mobile work table which makes workpiece loading/unloading easier and increases the working section considerably.

Estimate Request

Technical data

AXIS STROKES

X AXIS (longitudinal) (mm)

4.250

Y AXIS (transversal) (mm)

420

Z AXIS (vertical) (mm)

430

A AXIS (electrospindle rotation)

0° ÷ 180°

POSITIONING SPEED

X AXIS (longitudinal) (m/min)

120

Y AXIS (transversal) (m/min)

Z AXIS (vertical) (m/min)

ELECTROSPINDLE

Toolholder cone

HSK - 50F

Maximum speed (rpm)

16.500

Maximum power in S1 (kW)

Automatic tool holder coupling

Cooling with heat exchanger

Electrospindle with encoder for rigid tapping

FUNCTIONS

Extended machining, up to twice the maximum nominal length in X

Multi-piece mode machining in Y

Workpiece rotation for machining on 4 sides

WORKABLE SIDES

With blade tool (upper face, side faces and heads)

1 + 2 + 2

With direct tool (upper face and side faces)

With angle machining head (heads)

TAPPING CAPACITY (with tap on aluminium and through hole)

With compensator

Stiff (optional)

M10

AUTOMATIC TOOL MAGAZINE ON BOARD THE GANTRY

Maximum number of magazine tools

Maximum number angle machining units that can be inserted in the tool magazine

Maximum length of the tool that can be loaded into the magazine (mm)

150

Maximum diameter of the blade that can be inserted in the magazine (mm)

Ø = 180

SAFETY DEVICES AND PROTECTIONS

Machine integral protection booth

Laminated protection glass

Retractable side protection tunnels

Cabin enclosure, sound proofing and inner lighting

Fume extraction system

WORK AREA

1F = 1 face machining 5F = 5 faces machining

	A	B	C	D	X1	Y1	Z1	X2	Y2	Z2
COMET X4	45	102	232	45,5	4.000	300	250	4.000	240	250

Included

Avayable

Power and flexibility of the electrospindle (Optional)

7 kW S1 high torque electrospindle allows heavy duty machining. It moves along the A-axis allowing rotations from 0° to 180°, so the profile can be machined on 3 faces without being repositioned. It can be used for some types of steel extrusions as well as for aluminium profiles, thanks to the software-adjusted lubricating system. With its double tank it allows either minimum oil circulation or oil emulsion spray-mist.

Comet X4 Power and flexibility of the electrospindle Emmegi 1

Comet X4 Power and flexibility of the electrospindle Emmegi 2

Label printer

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

Pneumatic stops (Optional)

The machine is equipped with strong stops allowing bar reference. One is positioned on the left side (standard) and the other on the right side (optional). Each stop is activated by a pneumatic cylinder, it is retractable type and is automatically selected by the machine software according to the machining to be performed. In short, double stop offers the advantage to load more profile pieces for multi-piece mode machining as well as the possibility to reposition the bar or the piece and perform machining on particularly long profiles.

Tool magazine (Optional)

The tool magazine is integrated on the X axis, in the lower part and behind the electrospindle. It allows great reduction of tool change times. This function is particularly useful in the extrusion head and tail machining, avoiding the stroke to get to the magazine, as it moves simultaneously with the electrospindle and its positions. The magazine can contain up to 10 tool holders with relevant tools, which can be set at the operator’s discretion. A sensor detects correct cone positioning.

Vices (Optional)

The machine software can calculate the correct positioning measure for each vice unit, according to the length of the workpiece and to the type of machining to be performed. The automatic positioner allows picking all vice units and moving them by means of the gantry. This operation is performed at the highest speed and with great precision and spares longer time and collision risks, so that the machine can also be easily used by less experienced operators.

Operator interface (Optional)

The possibility of rotating the monitor on its vertical axis allows the operator to view the screen from any position. The user interface has a 24” touchscreen display in 16:9 format, portrait mode, equipped with the necessary USB connections for PC and CNC remote interfaces. It also features an operator panel, mouse, and it is set up for connecting barcode reader and remote operator panel.

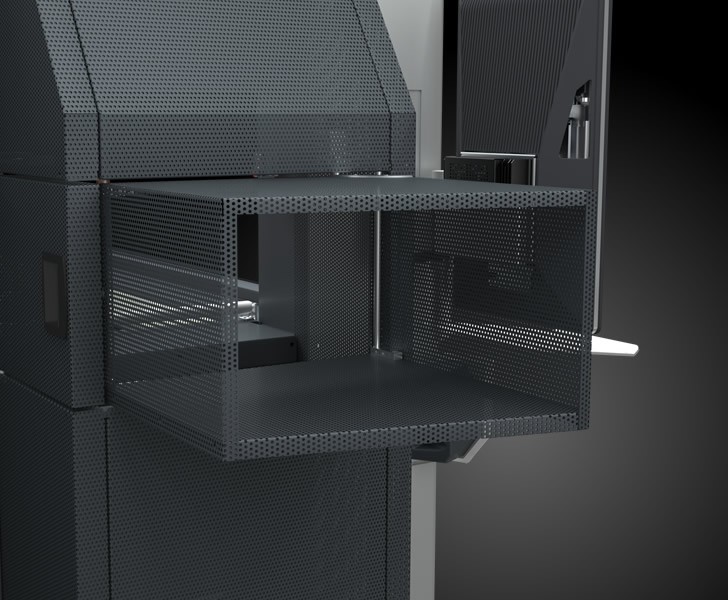

Foldaway tunnel (Optional)

Integrated with the machine’s aesthetics and design, thanks to the perforated sheet metal for transparency and lightness, the tunnel opens and closes as needed. As its length can be reduced when not in use, it helps save space at the workshop. The outlet for the chip conveyor belt and its engine are built into the lower section, in view of an aesthetic and functional design.
