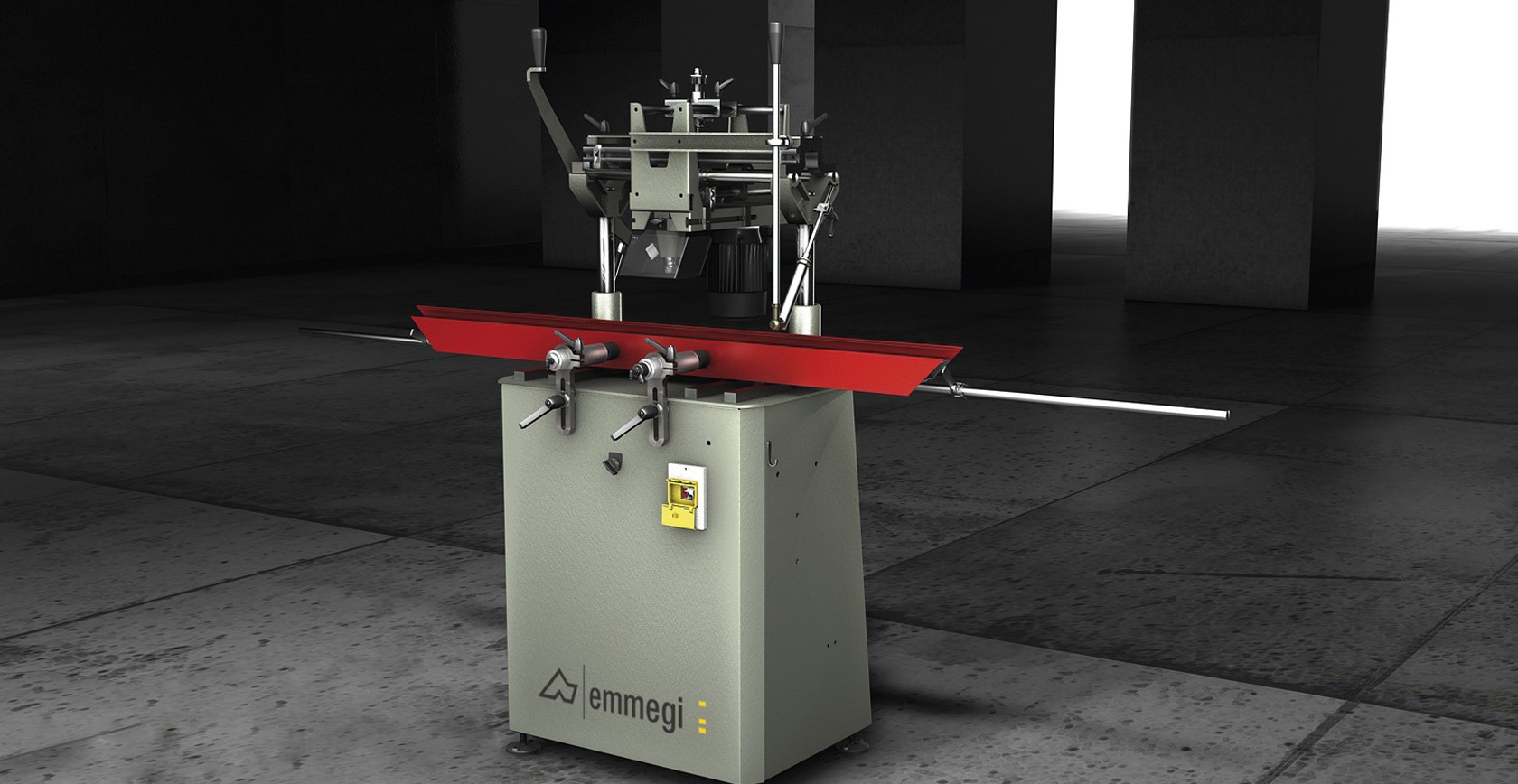

COPIA  314 S

Manual single-head copy router with long vertical travel and traverse of cutting head with handle or indirect lever. Through machining operations can be performed without turning over the workpiece. Manually controlled stylus.

Technical data arrow_drop_down
CHARACTERISTICS
Motor (kW)
0,75
Tool speed (rpm)
10.000
Travel (X-Y-Z) (mm)
314 – 120 – 175
Vice capacity (mm)
175 x 220
Toolholder with gripper max (mm)
Ø = 10
Pair of horizontal pneumatic vices, stroke (mm)
8
6-position positive indexing stop

One tooth end-mill (mm)
Ø = 5 - 10
Mill-holder collet complete with lock-nut (mm)
Ø = 10
Three-diameter probe

Micro-mist lubrication system with water and oil emulsion

Template with standard figures

Right and left rods with 4 excludable stops

Included
Available

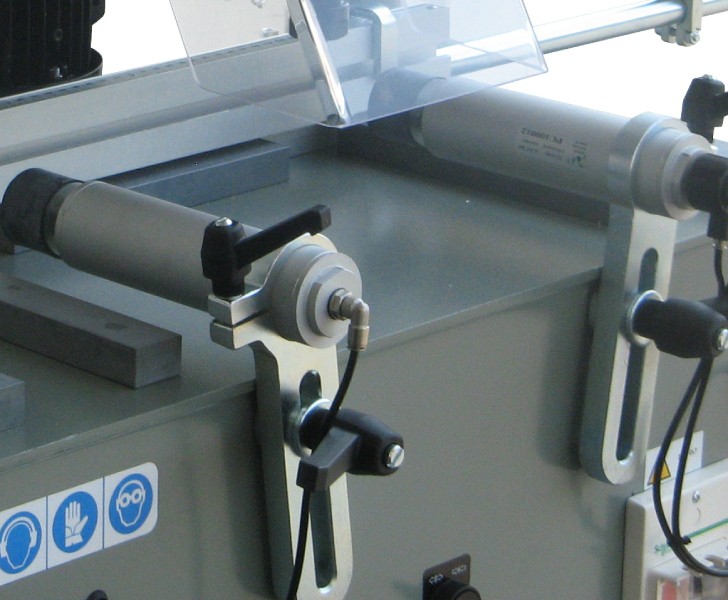

Horizontal vices
The machine is provided with a pair of pneumatic horizontal vices with low pressure device. The vices are adjustable manually and ensure correct gripping of the profile in the machine.
COPIA 314 S Horizontal vices Emmegi
COPIA 314 S Spray-mist lubrication system based on water Emmegi

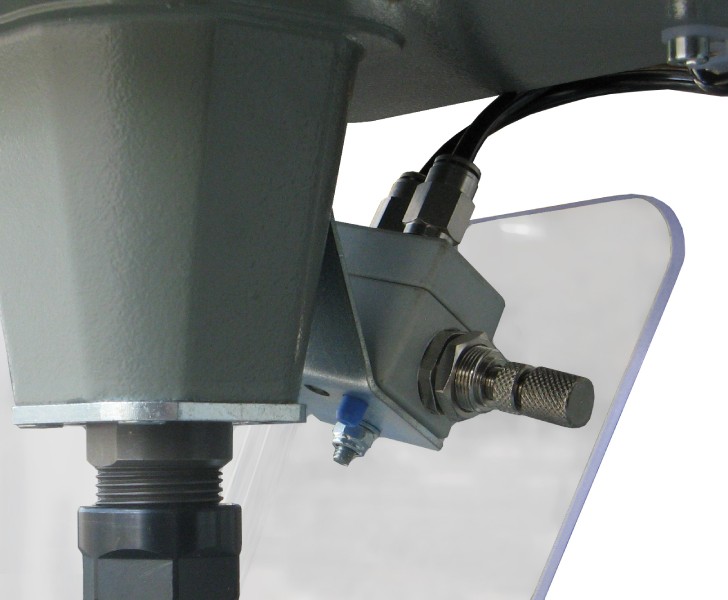

Spray-mist lubrication system based on water
The machine is provided with a spray-mist lubrication system based on water and oil emulsion that ensures correct lubrication of the tool in operation.

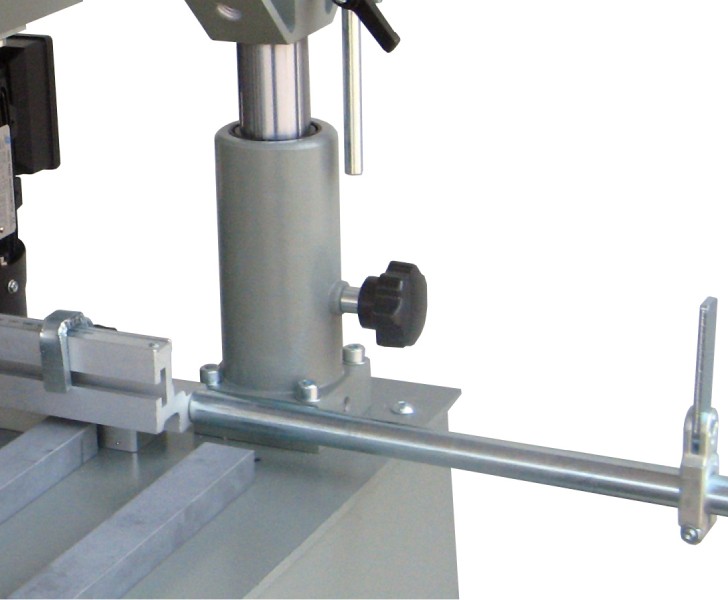

Stop adjustment
A stop system with manual adjustment, allows correct positioning of the workpiece in the machine thus bringing it to the cutting area.
COPIA 314 S Stop adjustment Emmegi
COPIA 314 S Roller conveyor Emmegi

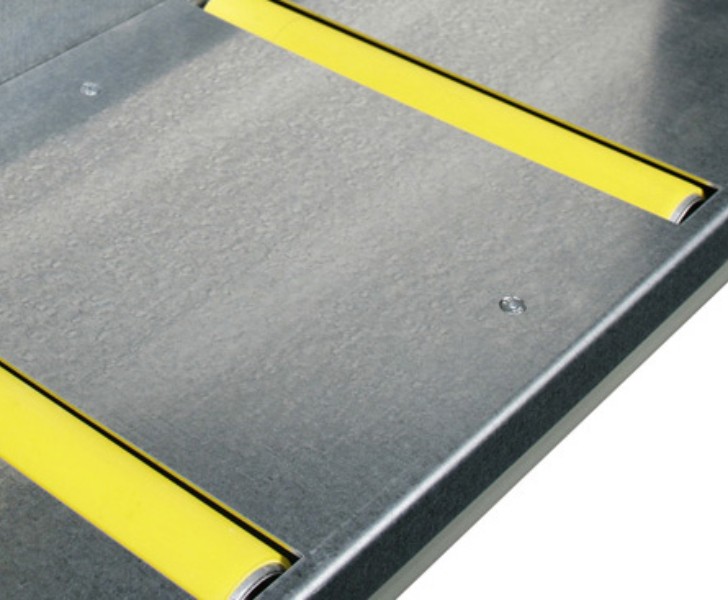

Roller conveyor (Optional)

The machine is designed to accommodate special roller conveyors which can be positioned at the right or left sides, or at both sides. Their function is to support profiles of considerable length and to ensure correct positioning of the workpiece in the machine.
