COPIA324

home / product a to z / C

Manually controlled single head copy router with pneumatic clamping and traverse of the head with indirect lever. Ability to run through machining of aluminum without turning the workpiece. Scratch-proof. Pneumatic stylus with control on the handle.

Estimate Request

Technical data

CHARACTERISTICS

Motor power (kW)

1,1

Tool speed (rpm)

8.000

Travel (X-Y-Z) (mm)

380 – 150 – 250

Vice capacity (mm)

200 x 200

Toolholder with gripper

ER 16

Max. tool diameter (mm)

Max. tool length (mm)

Pair of horizontal vices

Pair of vertical vices

Pair of vertical vices on side brackets

Adjustable vice jaws

One tooth end-mill (mm)

Ø = 5 - 10

Mill-holder collet complete with lock-nut (mm)

Ø = 5/6 – 9/10

Indirect head translation lever

4-diameter sensor

Ø = 5 - 6 - 8 - 10

Micro-mist lubrication system with water and oil emulsion

Template with standard figures

Right and Left profile-supporting shelves with 4 excludable stops

Central stop that slides along linear guides

Tool holder storage built into the base, holds 4 tools

Head movement along precision linear guides

Stop devices along the travel of axes X, Y, Z, with precision metric rod

Included

Avayable

Indirect head translation lever (Optional)

The tool travels along the horizontal plane manually using a lever that minimises the strength required by the operator. The height of the handle is adjustable for a practical and ergonomic use.

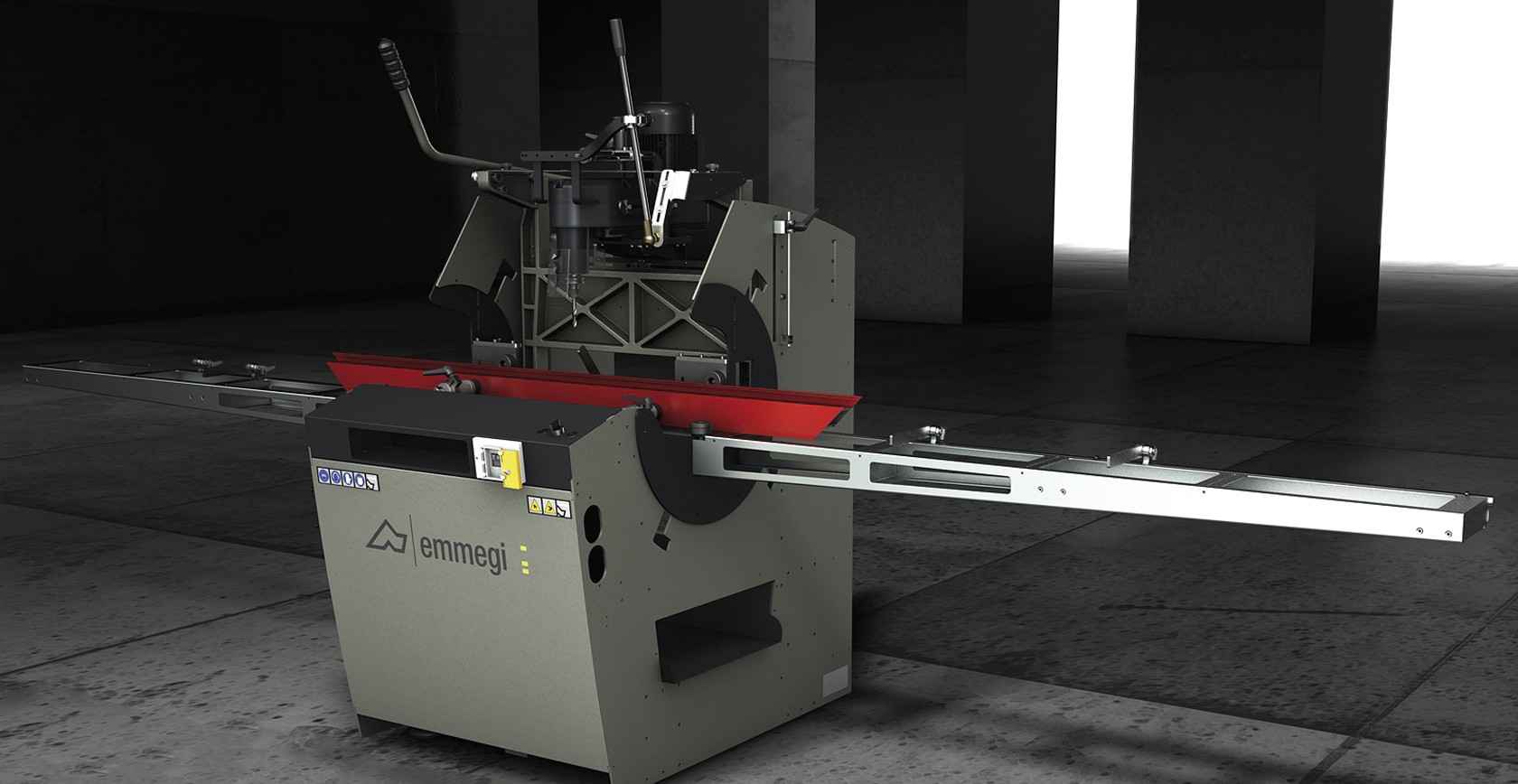

COPIA 324 Indirect head translation lever Emmegi

Vices (Optional)

The machine has manually adjustable pneumatically controlled horizontal vices that guarantee the profile is correctly clamped in the machine. For better profiles clamping when required, a couple of vertical pneumatic vices is available as an optional.

Control joystick (Optional)

The lever allows performing the vertical movement of the milling unit. A motor starter button is found on the joystick. The electrospindle has a tool holder with an ISO 30 quick coupling; there are 4 housings on the sides of the machine for 4 toolholders.

COPIA 324 Stop devices and roller conveyors Emmegi

Stop devices and roller conveyors (Optional)

The roller conveyors positioned on the right and left support the machining of the very long profiles. Moreover, a system of manually-regulated stop devices, also on the right and left, allows positioning the workpiece in the machine correctly, taking it to the work area.

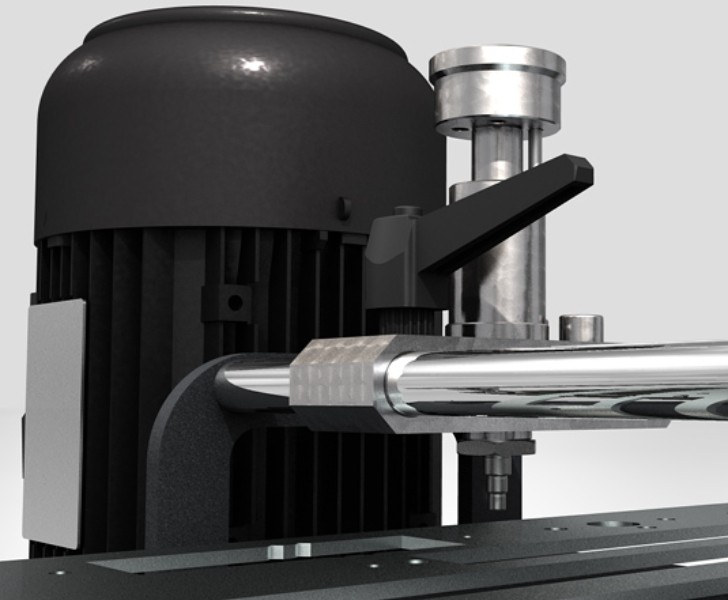

4-diameter sensor (Optional)

The mechanical probe has 4 positions, creating 4 different tool diameters. When it is placed on the pre-selected mask, machining is carried out precisely and safely.
