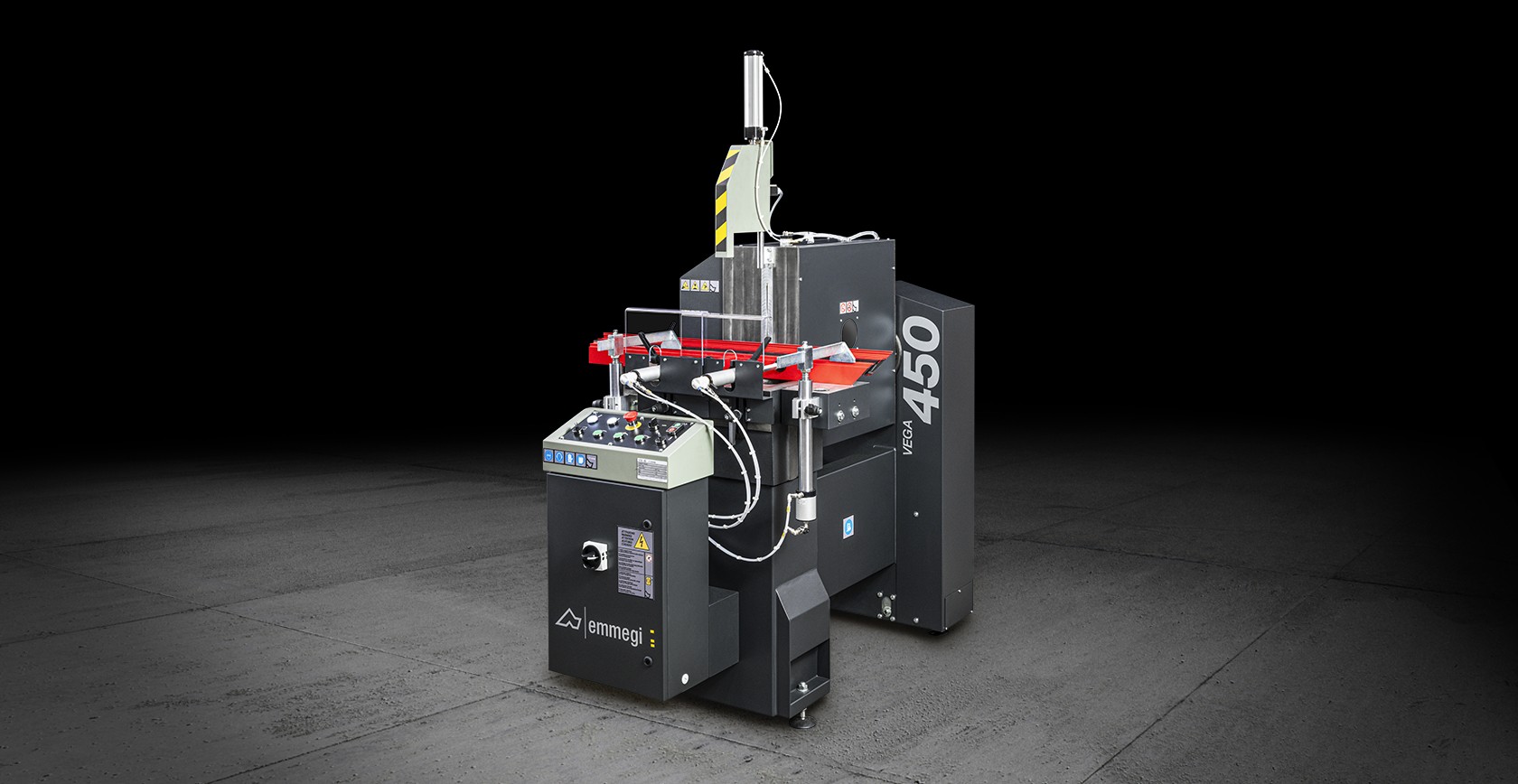

Vega 550-450

*Delivery of machines with the new colours & trims (shown in the picture above) from November /December 2022



Single-head cutting-off machine with horizontal blade feed and left loading side, pneumatic double side tilting of the cutting head in fixed positions: 45° to the left, 90°, 45° and 22°30’ to the right. A special positive stop also allows cutting at intermediate angles.

Technical data arrow_drop_down
BLADE
Made of Widia (based on model) (mm)
Ø = 450; Ø = 550
LUBRICATION SYSTEM
Micro-mist lubrication system with water and oil emulsion

MOTOR
Three-phase (kW)
2,2
WORKPIECE LOCKING
Pair of pneumatic vertical vices

Pair of pneumatic horizontal vices

BLADE FEED
Hydro-pneumatic

CUTTING AREA PROTECTION
Local, pneumatically control

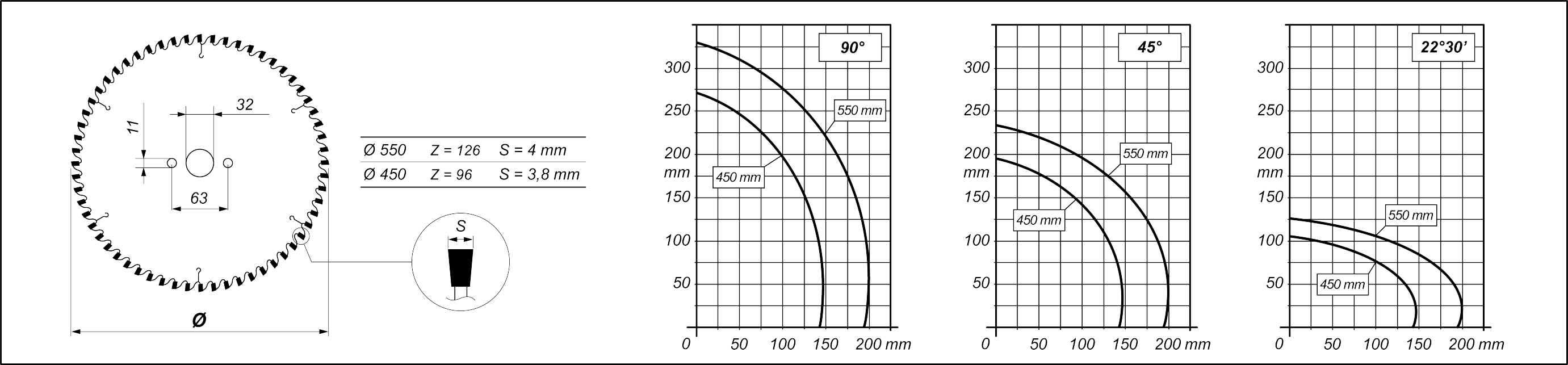

CUTTING DIAGRAM
Included
Avayable

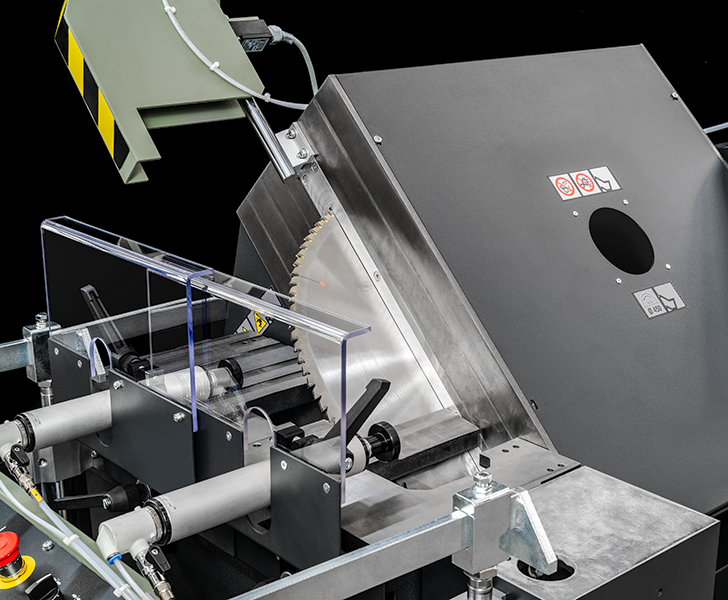

Head 45°/ 22°30’
Applied technical solutions ensure fast and precise angular positioning of the head, which can be equipped with 450- and 550-diameter cemented carbide blades. Thus the distinct vocation of this machine for the production of windows and doors is outlined, ensuring reliability and precision over time.
Vega 550-450 Head 45°/ 22°30’ Emmegi
Vega 550-450 Safety systems Emmegi

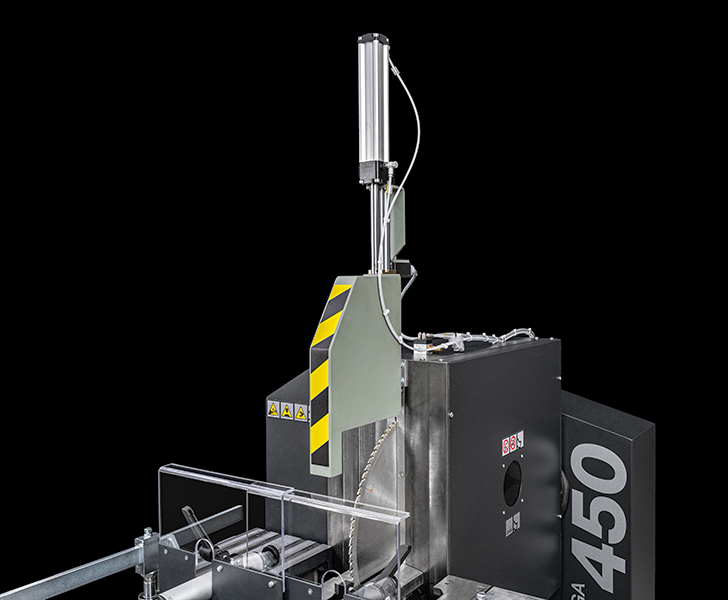

Safety systems
The machine is equipped with a localised blade protection system, which does not interfere with the positioning of the workpiece but, at the same time, ensures the safety of the operator.

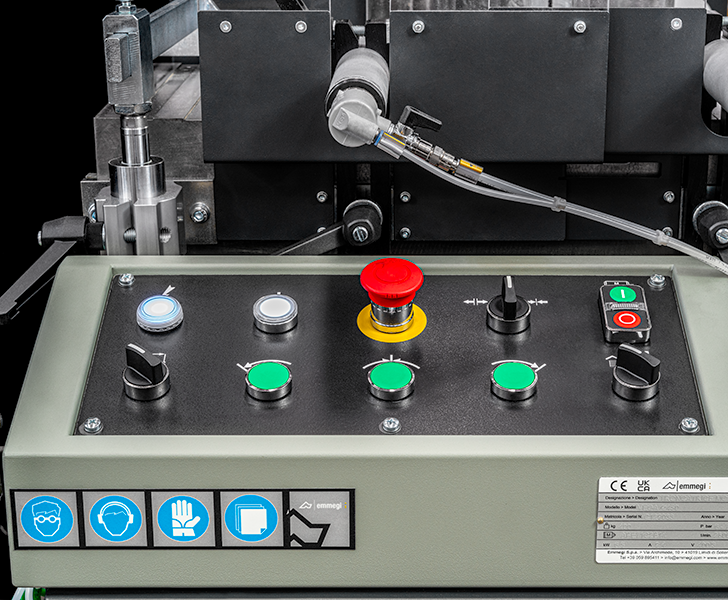

Control

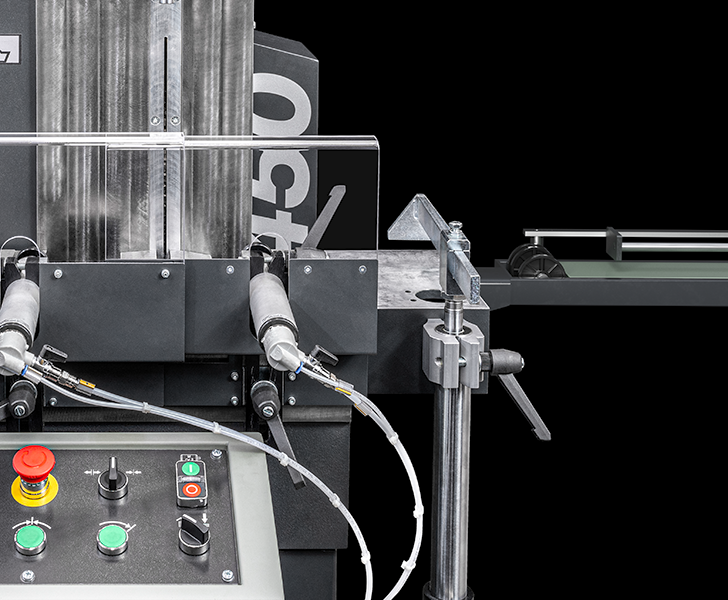

Control console that allows the implementation of left and right head tilt through the use of quick and intuitive controls. With the unloading/measuring roller conveyor stand on the right side, the length of the workpiece to be cut is determined, referenced to the centre of the blade.
Vega 550-450 Control Emmegi
Vega 550-450 Vices Emmegi

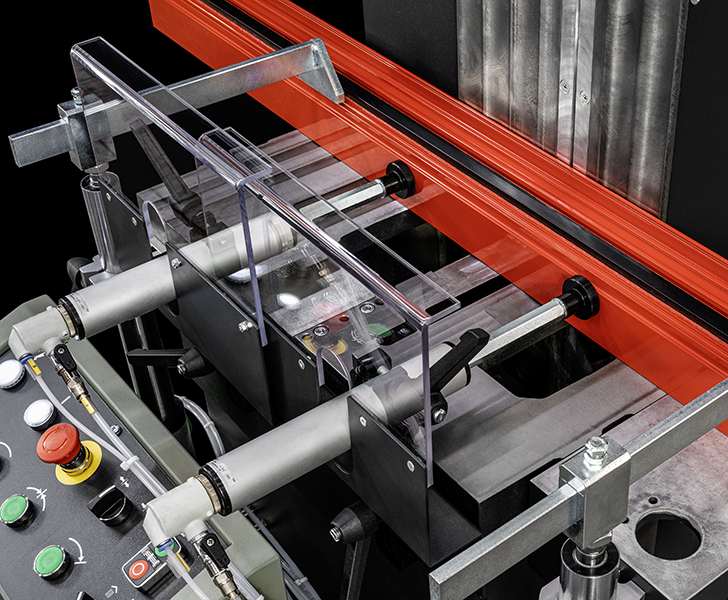

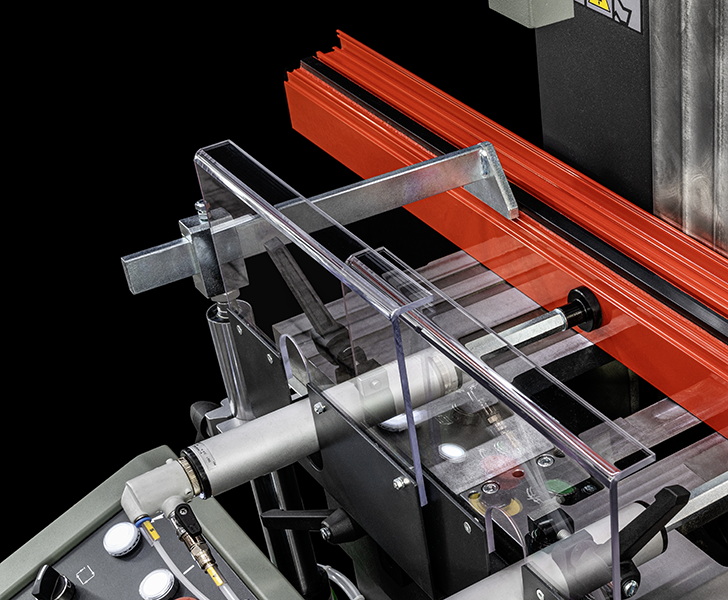

Vices
The cutting-off machine is equipped with a horizontal and vertical vice assembly (optional), which is characterised by extremely fast positioning and effective clamping.
