20-axis CNC machining centre for milling, drilling and cutting operations at head and end of profiles in aluminium and light alloys. QUADRA L3 is composed of an automatic magazine and a push-feed system for extruded profiles of up to 7500 mm, complete with gripper handling for clamping and traversing the profile in the operating unit. Automation enables loading the next bar by synchronising its feed with the simultaneous return of the gripper for the next pick-up. The milling module, cutting module and drilling module for head and end are located in the central part. The 4-axis CNC milling module is equipped with 4 to 6 electrospindles that make it possible to machine any side of the profile, regardless of its orientation. The main cutting module is composed of a 600 mm diameter blade with downstroke movement in three CNC axes. The secondary module operating on 4 CNC axes is equipped with a dual drilling unit that can machine on profile heads. QUADRA L3 is equipped with an automatic ejector to transfer the machined segment from the cutting unit to the unloading magazine. The unloading unit is composed of a transverse belts magazine and handles profiles with a maximum length of 4000 mm (optional 7500 mm). The central cab contains all work units, ensuring a high soundproofing standard and complete protection for the operator.

Technical data arrow_drop_down
AXIS STROKES
X AXIS (longitudinal) (mm)
320
YL AXIS (horizontal cutting unit transversal movement) (mm)
1200
ZG AXIS (horizontal cutting unit vertical movement) (mm)
190
C1 AXIS (pliers rotation)
0° ÷ 180°
B AXIS (motorised vice movement) (mm)
790
Q AXIS (cutting machine rotation)
293°
P AXIS (cutting unit transversal movement) (mm)
880
H AXIS (cutting unit vertical movement) (mm)
627
W AXIS (gripper vertical positioning) (mm)
138
V AXIS (gripper transversal positioning) (mm)
138
U AXIS (bar positioning) (mm)
9660
A AXIS (rotary base rotation)
0° ÷ 360°
Z AXIS (vertical) (mm)
395
Y AXIS (transversal) (mm)
402
QL AXIS (horizontal cutting unit rotation)
-45° ÷ +45°
WL AXIS (horizontal cutting unit blade rotation)

YF AXIS (drilling unit transversal movement) (mm)
1200
WF AXIS (drilling unit mill rotation)

QF AXIS (drilling unit rotation)

XF AXIS (drilling unit longitudinal feed) (mm)
100
MILLING UNIT
Electrospindle rotary unit on rotary base
0° ÷ 360°
Electrospindles with air cooling
4
Maximum number of machining units
6
Maximum power in S1 (kW)
5.6
Maximum speed (rpm)
24000
Toolholder
ER 32
Toolholder for quick tool change (WELDON)

Disengagement from machining unit work area by means of recirculating ball slides (110 mm stroke)

Pressurised lubrication system

Heavy-duty pulsed micro-oily mist lubrication system

VERTICAL CUTTING UNIT
Maximum machinable profile width (mm)
300
Maximum machinable profile height (mm)
266
Blade motor power (kW)
3
NC blade positioning
-48° ÷ 245°
Blade diameter at carbide-tipped (mm)
600
HORIZONTAL CUTTING UNIT
Maximum machinable profile width (mm)
300
Maximum machinable profile height (mm)
160
Maximum rotation speed (rpm)
3500
Blade motor power (kW)
0.85
Blade diameter at carbide-tipped (mm)
350
NC blade positioning
-45° ÷ +45°
DRILLING UNIT AT THE HEAD AND TAIL END
Maximum tool diameter (mm)
16
Maximum tool length (mm)
50
Toolholder
ER 25
Number of tools for drilling unit
2
Tapping capacity
M12
Encoder for rigid tapping

Maximum rotation speed (rpm)
7500
Drilling unit motor power (kW)
0.85
FUNCTIONS
Printing labels in customised format

Multichannel management

Workpiece milling, drilling, end milling and cutting directly from the entire profile, drilling and tapping at head and tail end

WORKABLE SIDES
Number of faces (top, side, bottom, heads)
1 + 2 + 1 + 2
WORKPIECE LOCKING
Automatic motor-driven profile clamping system in profile unloading area

Automatic fixed profile clamping system downstream of the milling zone

Automatic fixed profile clamping system upstream of the milling zone

MACHINING AREA OF THE MILLING UNIT

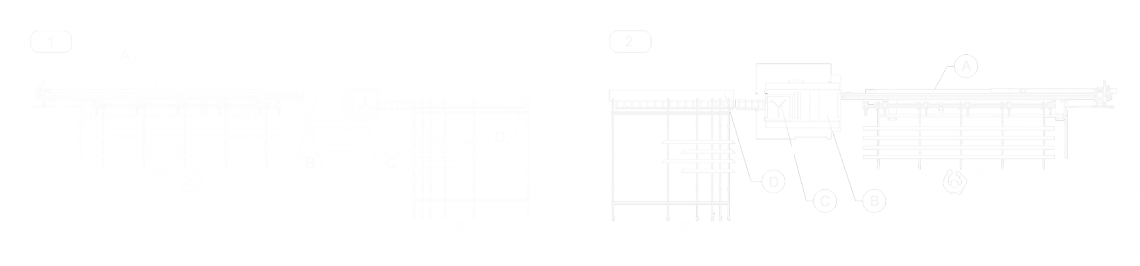

LAYOUT
Included
Avayable

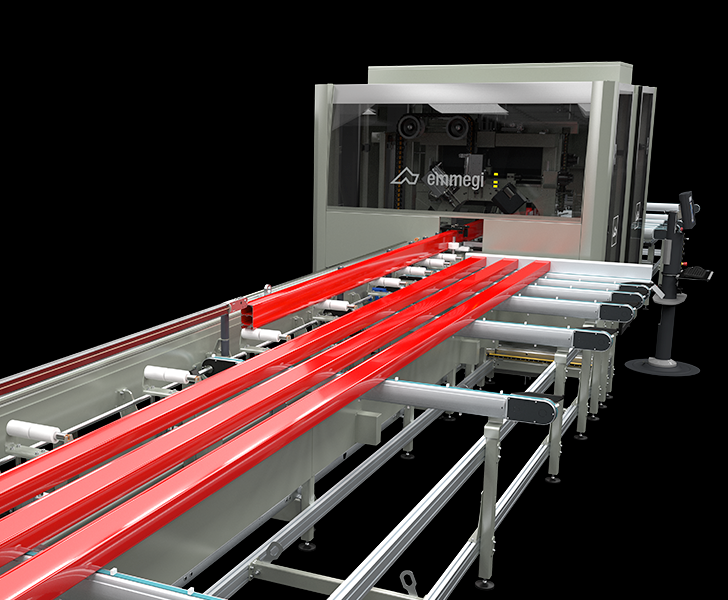

Automatic bar feed and workpiece unloading
Numerically controlled, high precision and high speed bar positioning system. The system is complete with a gripper to block the profile with automatic horizontal and vertical position adjustment on two CN axes. To guarantee that each type of profile is grasped with no manual intervention, the numerical control of the gripper slewing axis is also available, which is otherwise handled manually. The loading and unloading belt magazines are used to load profiles with length of up to 7.5 m and offload lengths of up to 4.0 m, with an option for 7.5 m. If required, during loading and unloading, an optional tipping system can automatically rotate the workpiece by 90°.
CNC machining centres Quadra L3 Automatic bar feed and workpiece unloading Emmegi
CNC machining centres Quadra L3 Milling unit Emmegi
Milling unit
QUADRA is fitted with an exclusive turntable system on which 4 to 6 work units interpolated on 4 axes can operate at the same time: X, Y, Z, A (360° slewing around the axis of the bar). The high-frequency electrospindles are air-cooled, and include an ER 32 toolholder with power up to 5.6 kW in S1. Each unit is equipped with a work area disengagement system by means of a slide on recirculating ball shoes.

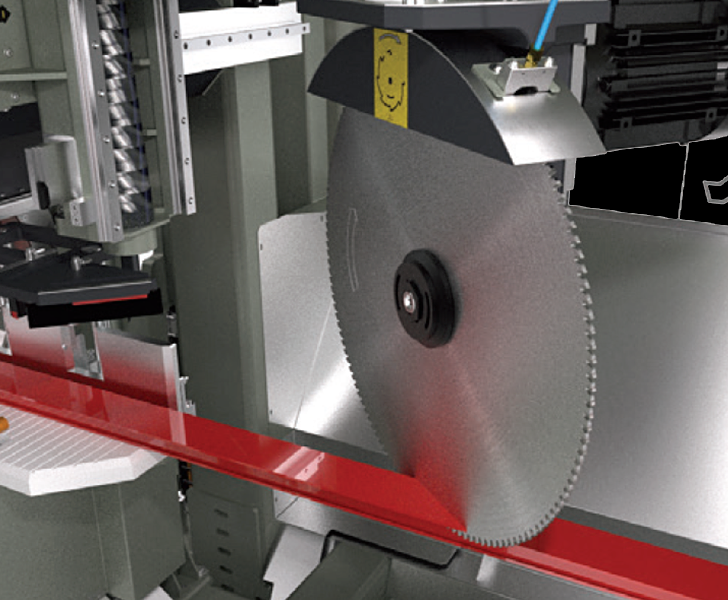

Vertical cutting module
The CNC-operated cutting module includes a 600 mm diameter circular blade with downward movement on 3 axes, with a range from -48° to +245°, allowing a variety of extruded profile end milling types. The clamping and handling of the segments are done by means of two motorised vice units on CNC axes.
CNC machining centres Quadra L3 Vertical cutting module Emmegi
CNC machining centres Quadra L3 Horizontal cutting module Emmegi

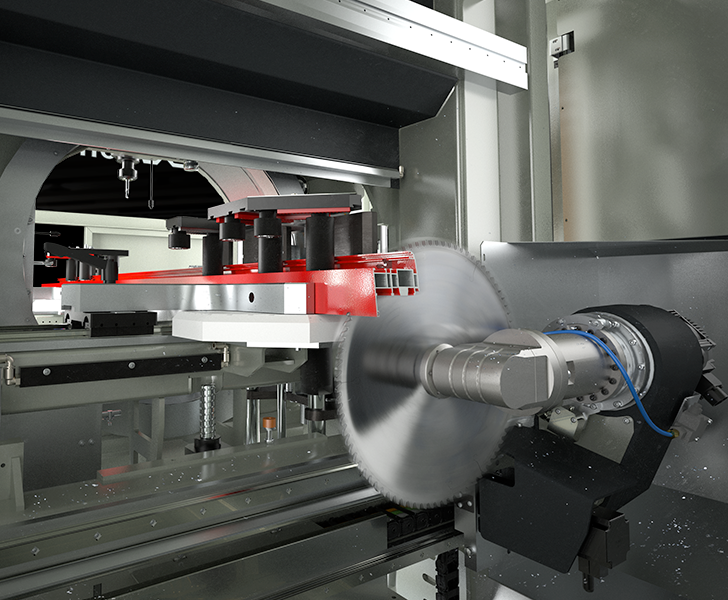

Horizontal cutting module
Single-head cutting unit with numerically controlled horizontal feed, with 350 mm blade and a wide cutting range: -45° to +45°. The setting of any cutting angle is fully automatic and controlled by a 3-axis CN movement. The horizontal feed allows cutting large profiles and performing special cuts.
Milling module
Milling unit on 4-axis CNC designed for machining at profile head and tail ends at any angle. Interacts with the horizontal cutting unit, with which it shares the support beam. The cutting and milling modules enable unloading swarf into a special hatch, which can be fitted optionally with a steel evacuation belt.
CNC machining centres Quadra L3 Milling module Emmegi
CNC machining centres Quadra L3 Label printer Emmegi
Label printer

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

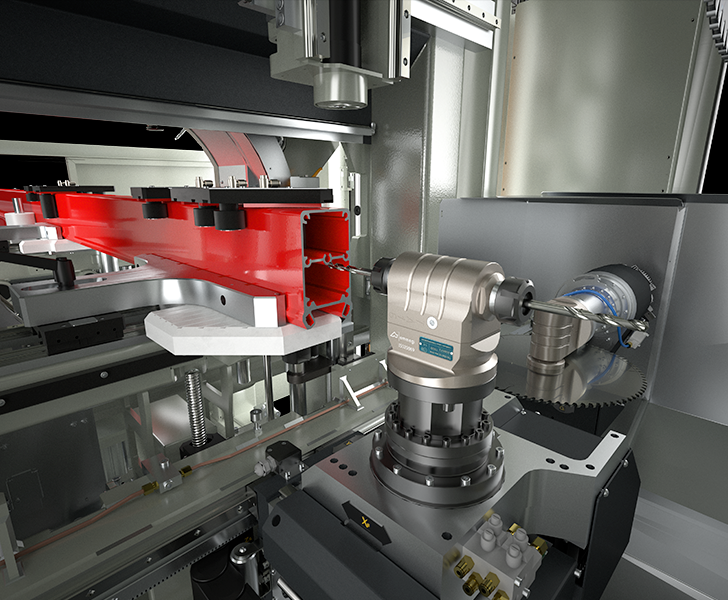

Drilling, milling and tapping module at the head and tail ends
Drilling unit on 4-axis CNC designed for machining at head and end of profile at any angle. Interacts with the horizontal cutting unit, with which it shares the support beam. The cutting and drilling modules enable unloading swarf into a special opening, which can be fitted optionally with a steel evacuation belt.
CNC machining centres Quadra L3 Drilling, milling and tapping module at the head and tail ends Emmegi
