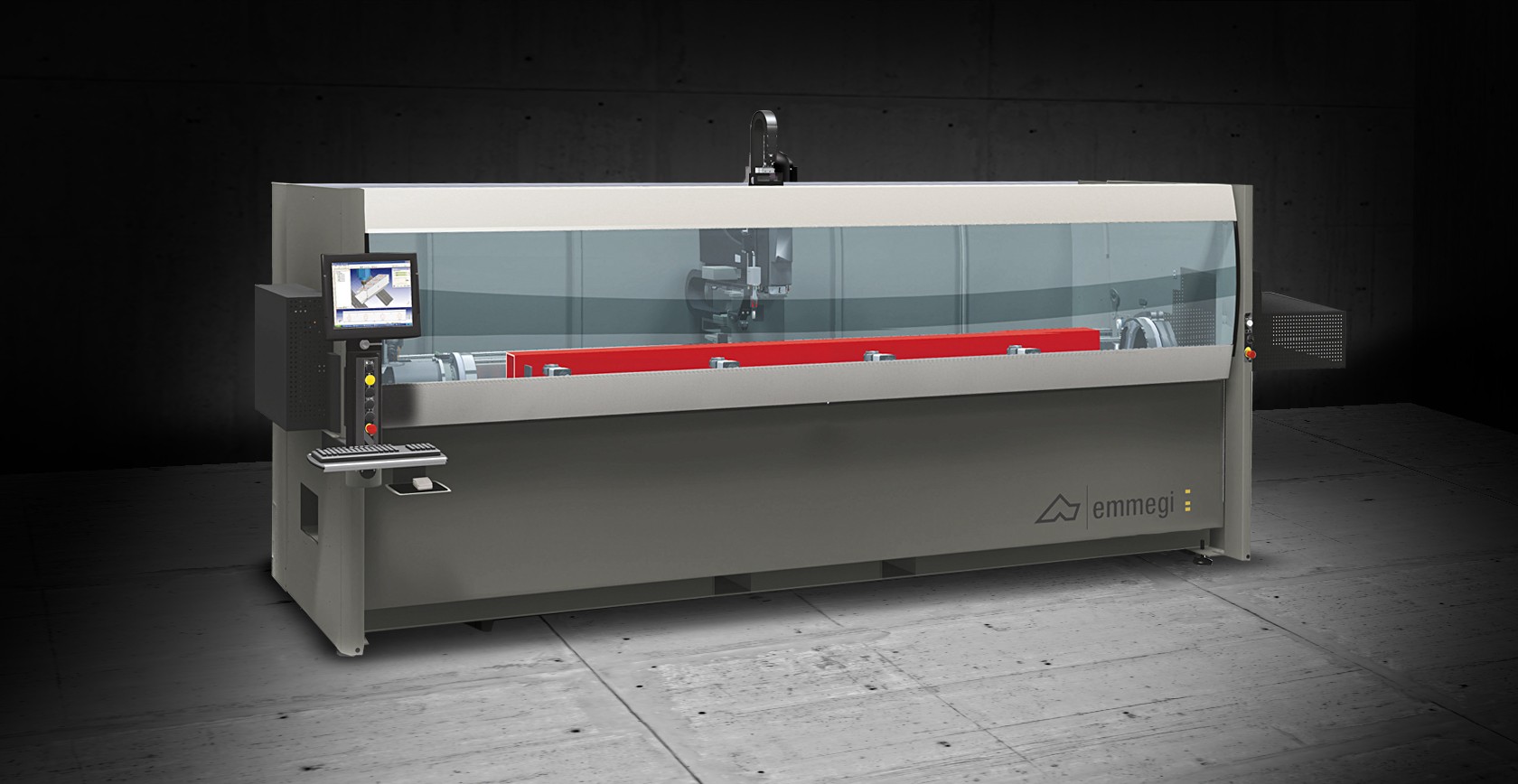

Machining centre CNC with 3 or 4 controlled axes, used for the working of bars of aluminium, PVC, light alloys in general and steel pieces up to 3 mm. It has a 4 or an 8 place (optional) tools storage, with the possibility of hosting 2 angular units and one milling disc, to perform machining on the 5 sides of the piece. The standard work table allows rotation in three fi xed positions at 90° steps. The continuous rotary work table (optional 4th CN axis) allows you to work at any angle from - 90° to + 90° and on the two heads with double-outlet angular unit, with the table at 0°.

Technical data arrow_drop_down
AXIS STROKES
X AXIS (longitudinal) (mm)
4300
Y AXIS (transversal) (mm)
270
Z AXIS (vertical) (mm)
300
A AXIS (workpiece automatic rotation range)
- 90° ÷ + 90°
A axis positioning (standard)
- 90°, 0°, + 90°
A axis positioning (optional)
CN
ELECTROSPINDLE
Maximum power in S1 (kW)
5.5
Maximum power in S1 (kW) (optional)
7.5
Maximum speed (rpm)
20000
Toolholder cone
HSK - 63F
AUTOMATIC TOOL MAGAZINE
Maximum number of magazine tools
4 standard ; 8 optional
Number of angle machining heads that can be inserted in the magazine
2
Maximum diameter of the blade that can be inserted in the magazine (mm)
Ø = 180
TAPPING CAPACITY (with tap on aluminium and through hole)
With compensator
M8
Stiff (optional, only with 7.5 kW electrospindle)
M10
WORKABLE SIDES
With blade tool (upper face, side faces and heads)
1 + 2 + 2
With angle machining head (side faces and heads)
2 + 2
With direct tool (upper face and side faces)
3
PROFILE POSITIONING
Workpiece reference LEFT stop with pneumatic movement

Workpiece reference RIGHT stop with pneumatic movement

FUNCTIONS
Basic multi-step machining - up to 5 steps

Automatic management of multi-step mode machining

Extended machining, up to twice the maximum nominal length in X (only with two reference stops)

Multi-piece mode machining in Y

Workpiece rotation for machining on 4 sides

WORKPIECE LOCKING
Standard number of vices
4
Maximum number of vices
4
Manual vice positioning

WORK AREA
Included
Avayable
Operator interface
The new control version with suspended interface allows the operator to look at the monitor from any position, as it can be rotated around the vertical axis. The operator interface has a 15" touch screen display with all USB connections necessary to interface with a remote PC and NC. It has a push-button panel, mouse and keyboard. It is also set up for the connection of a barcode reader and remote push-button panel. It is equipped with a front USB socket for data transfer.
CNC machining centres Phantomatic T3 S Operator interface Emmegi
CNC machining centres Phantomatic T3 S Pneumatic stops Emmegi
Pneumatic stops
Robust stops are present in the machine that and used for bar reference, located one on the right side and one on the left side. Each stop is activated by a pneumatic cylinder, it is of retractable type and is automatically selected by the machine software according to the machining to be performed. In short, double stop offers the advantage to load more profile pieces for multi-piece mode machining as well as the possibility to reposition the bar or the piece and perform machining on particularly long profiles.
Electrospindle - T -
The high-torque 5.5 kW electrospindle in S1, which is available on request with 7.5 kW power in S1, enables even heavy machining typical of the industrial sector. It can be used for some types of steel extrusions as well as for aluminium profiles, thanks to the software-adjusted lubricating system. With its double tank it allows either minimum oil circulation or oil emulsion spray-mist.
CNC machining centres Phantomatic T3 S Electrospindle - T - Emmegi
CNC machining centres Phantomatic T3 S Vices Emmegi

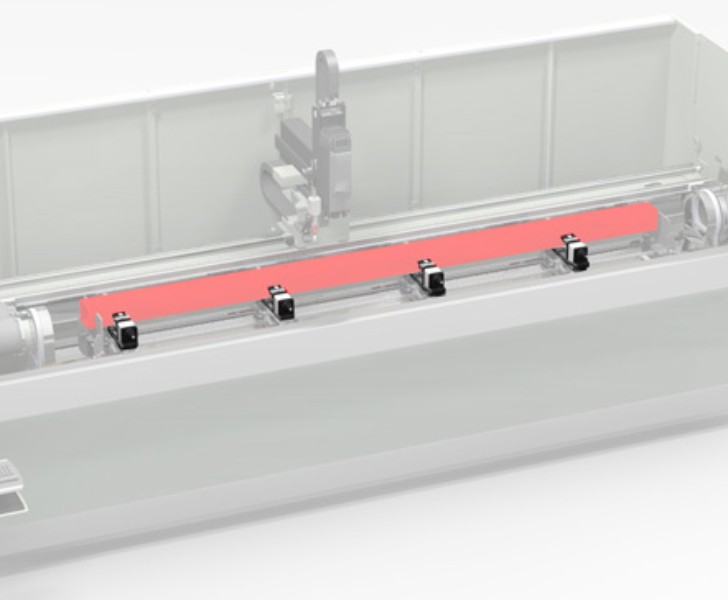

Vices
The vice system, which can be manually positioned using the metric ruler, allows for optimal clamping of the workpiece with ease. The CNC verifies the correct positioning of the vices before starting machining.

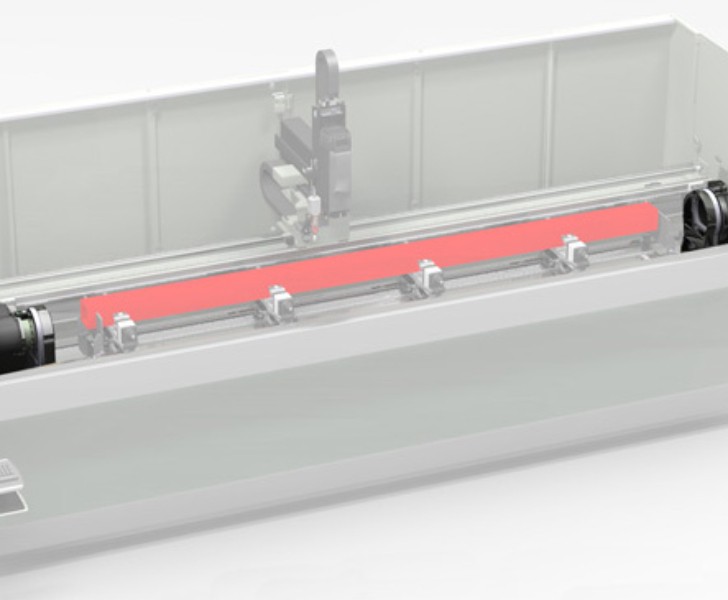

Tilting table
The numerically controlled tilting table is capable of positioning itself at -90°, 0, +90°. Continuous rotation can be implemented as an option. Such a solution allows machining on steel, aluminium and PVC profiles with maximum speed and precision, without resorting to manual rotation of the workpiece or the use of angle aggregates, taking advantage of the power of the electrospindle under all working conditions.
CNC machining centres Phantomatic T3 S Tilting table Emmegi
CNC machining centres Phantomatic T3 S Automatic tool magazine Emmegi

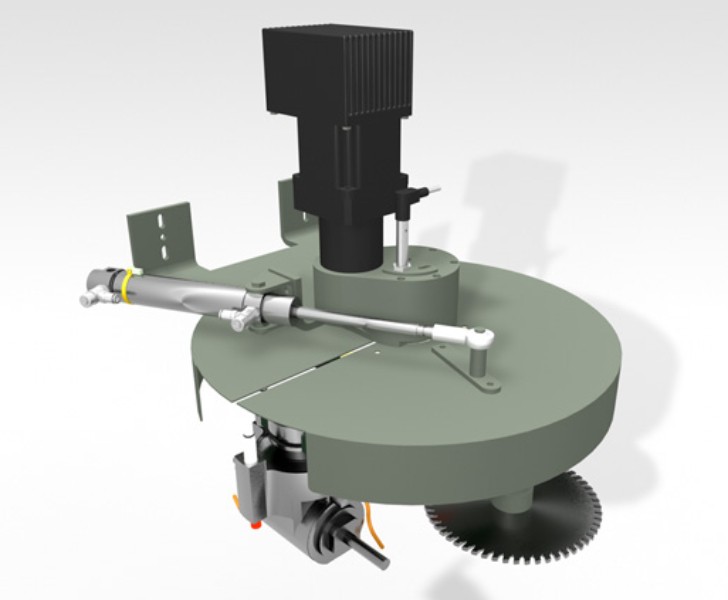

Automatic tool magazine
The new toolholder magazine, which is circular in shape, makes it possible to reduce the footprint, to ensure the positioning of large extrusions on the machine and also to perform tool changes very quickly. The sheet metal protective cover offers optimum protection for the toolholder cones from swarf and accidental knocks. The magazine can contain up to 4 toolholders (8 upon request) with relevant tools, which can be set at the operator’s discretion.
