SCA Mini P 400

The single head rising blade cutting-off machine, with left loading side, for cutting at angular settings from 15° to the left to 15° to the right and intermediate angles. Available with pneumatic blade feed.

Technical data arrow_drop_down
BLADE
Made of Widia (mm)
Ø = 400
LUBRICATION SYSTEM
Spray-mist lubrication with oil emulsion

MOTOR
Rpm
2.800
Power (kW)
1,5
Three-phase (without brake)

WORKPIECE LOCKING
Optional additional horizontal vices
2
Pair of pneumatic vertical vices

BLADE FEED
Pneumatic

CUTTING AREA PROTECTION
Full guard manually operated

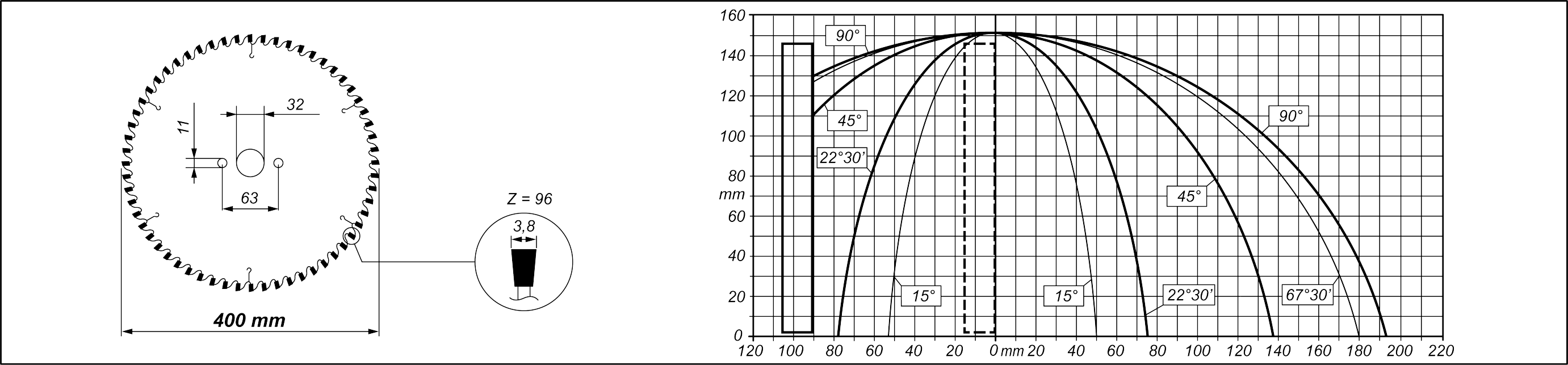

CUTTING DIAGRAM
Included
Avayable

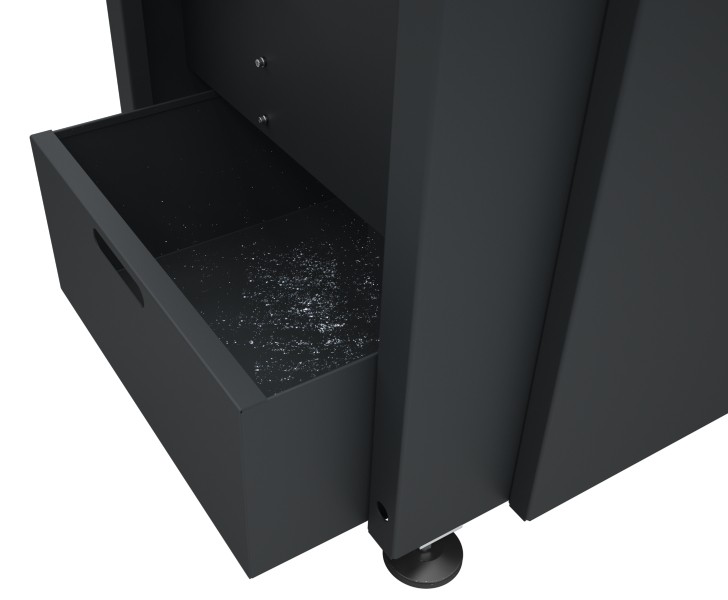

Swarf drawer
A practical swarf drawer allows efficient collection of the processing debris thus ensuring clean conditions of the machine and work area.
SCA Mini P 400 Swarf drawer Emmegi
SCA Mini P 400 Vices Emmegi

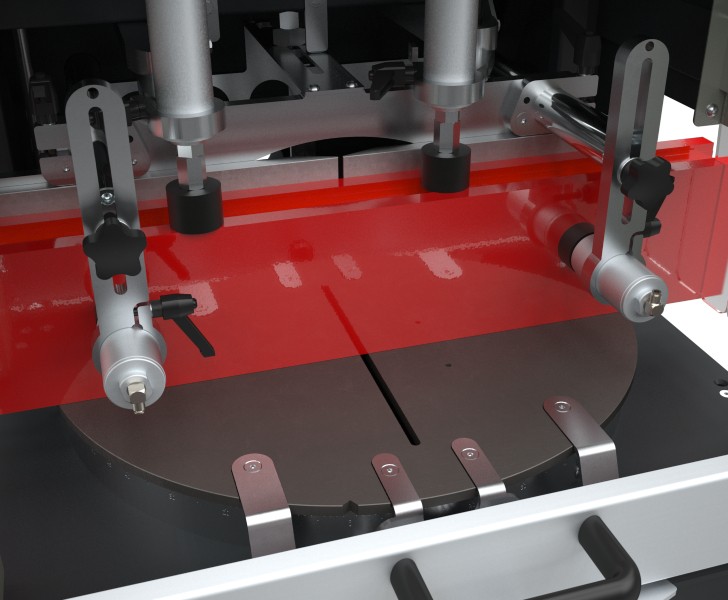

Vices
Thanks to the technical solutions adopted, the horizontal and vertical vices ensure the utmost rigidity in workpiece clamping as well as rapid repositioning of the vices. Such characteristic allows the use of this machine in window/door manufacture.

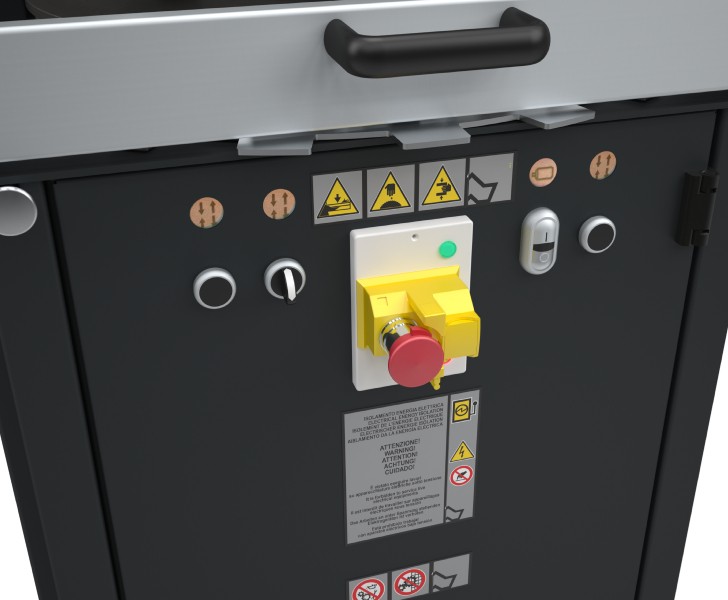

Control
The control console allows user-friendly and intuitive machine operation. The practical lever with scale serves for rapid angular positioning of the blade. Instead, a further adjusting system allows adjustment of the vice pressure and blade outfeed rate.
SCA Mini P 400 Control Emmegi
SCA Mini P 400 Cutting zone Emmegi

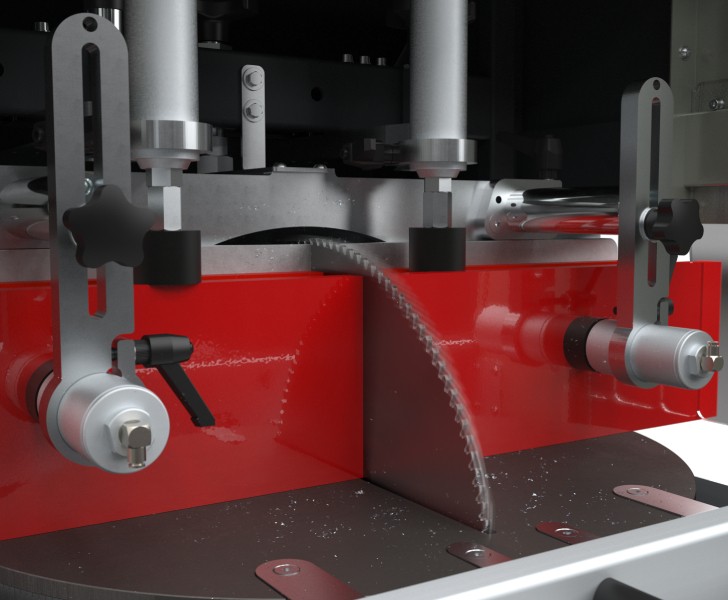

Cutting zone
The rugged horizontal work bench associated with the vertical striker allows optimum positioning of the workpiece to be cut, thus ensuring considerable accuracy of the cut surface.
